By leveraging edge AI computing on an ARM industrial PC and combining it with OpenCV + YOLO, this method provides an efficient, accurate, and economical automated inspection solution for industrial environments.

Case Details

In modern industrial production, quality inspection is a critical component for ensuring production line stability and product qualification rates. Traditional manual inspection methods are not only inefficient but also heavily influenced by subjective factors, leading to frequent missed detections or false positives. With advancements in artificial intelligence and edge computing, automated defect detection systems based on ARM AI industrial PCs are emerging as key elements in intelligent manufacturing.

System Overview

This solution leverages an ARM AI industrial PC as the core platform, integrated with industrial cameras, OpenCV for image processing, YOLO for object detection, and IO control mechanisms. It enables efficient and intelligent detection of various defects such as cracks, scratches, bubbles, and impurities in products on the production line. Upon detection, the system executes rejection or marking actions via IO control.

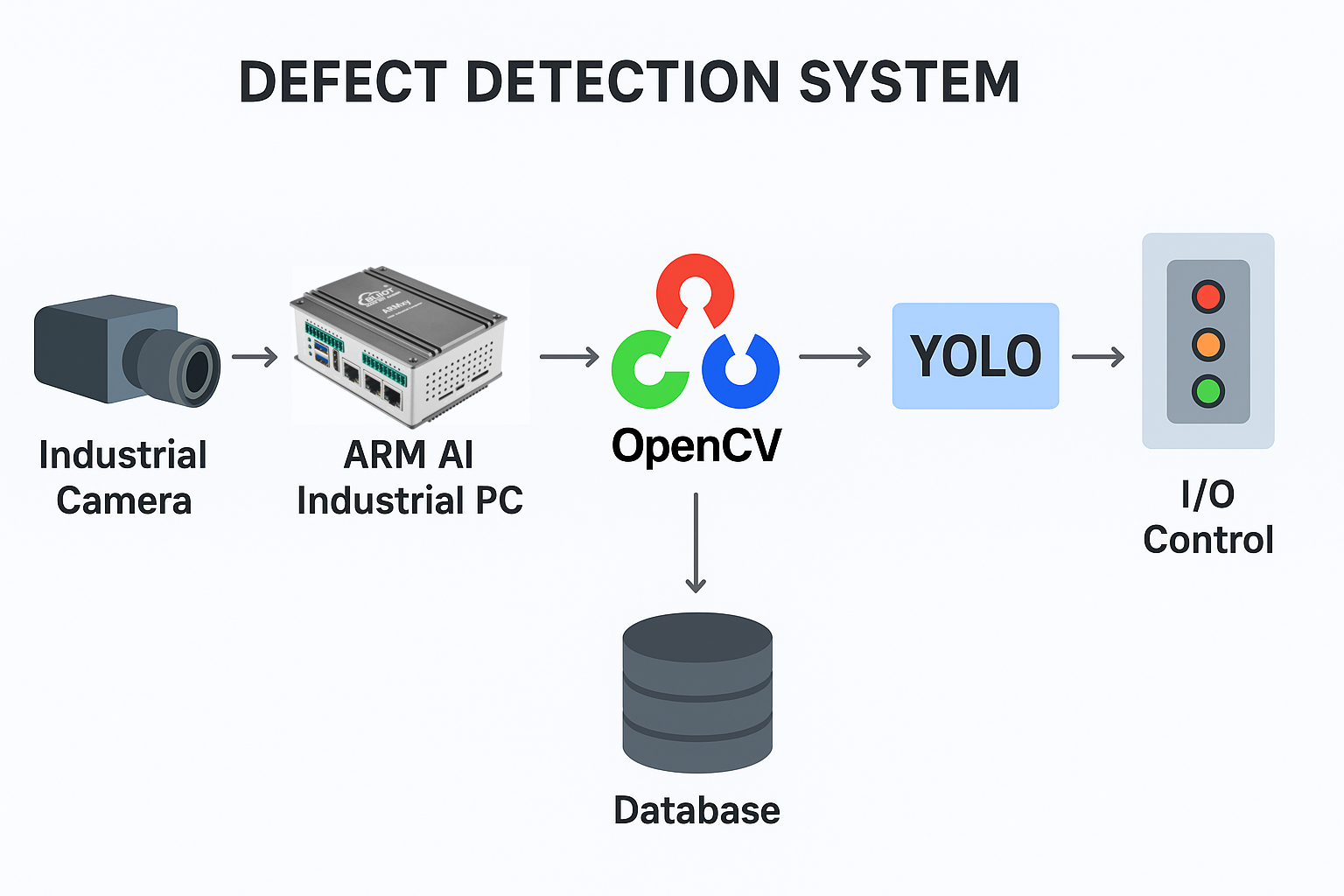

The overall system workflow is as follows:

Image Acquisition: High-speed capture of products on the production line using industrial cameras.
Image Preprocessing: Employ OpenCV for grayscale conversion, noise reduction, edge detection, and ROI cropping to enhance defect detection accuracy.
Defect Detection: Use the YOLO model to perform object detection on preprocessed images, outputting defect categories and locations.
IO Control Execution: Drive robotic arms or sorting devices based on detection results to perform rejection or alarm actions.
Data Logging and Traceability: Store detection results and defect images in a database for quality tracking and statistical analysis.

Hardware Architecture

The hardware selection emphasizes high performance, low power consumption, and industrial-grade reliability. The ARM AI industrial PC serves as the ideal platform for edge-based intelligent defect detection due to its integrated NPU, energy efficiency, and robust design.

Function Module	Hardware Selection	Description
Core Processing	ARM AI Industrial PC (e.g., BL440/BL450)	Supports NPU acceleration for YOLO inference; low power, high performance.
Image Acquisition	Industrial Camera (GigE/USB3)	Enables high-speed imaging for clear, high-resolution captures.
IO Control	PLC or Industrial Relays	Executes rejection, sorting, and alarm operations.
Network	Gigabit Ethernet	Facilitates production line data transmission and remote monitoring.
Storage	SSD/eMMC	Stores detection results and defect images for long-term retention.

Software Architecture

Image Processing (OpenCV)

OpenCV handles primary image preprocessing tasks to optimize input quality for subsequent detection:

Grayscale Conversion: Reduces computational complexity.
Filtering and Noise Reduction: Minimizes false positives.
Edge Detection and ROI Cropping: Focuses on critical areas to improve YOLO detection precision.

Defect Detection (YOLO)

YOLO (You Only Look Once) is a state-of-the-art real-time object detection model capable of rapidly identifying multiple defect types. When accelerated by the ARM NPU, the system achieves 30–60 FPS inference speeds, ensuring seamless detection in high-speed production environments.

IO Control

Post-detection logic evaluates results and communicates via IO interfaces with mechanical equipment to execute actions such as:

Rejecting defective products.
Triggering audio-visual alarms.
Initiating subsequent process steps.

Additionally, detection data can be uploaded to MES or SQL databases for quality traceability and analytics.

System Advantages

High Efficiency and Intelligence: ARM NPU-accelerated YOLO enables real-time, precise defect detection.
Low Power Consumption: The ARM industrial PC operates stably with minimal energy use, ideal for prolonged production runs.
Modular Design: Independent OpenCV, YOLO, and IO control modules allow flexible configuration.
Industrial-Grade Reliability: Withstands wide temperature ranges and interference, ensuring production line stability.
Strong Scalability: Seamlessly integrates with MES/ERP systems for data traceability and line optimization.

Application Scenarios

This solution is versatile and applicable to a wide range of industries, including:

Crack detection on electronic product casings.
Scratch detection on plastic product surfaces.
Integrity checks for food or pharmaceutical packaging.
Surface defect identification on metal parts.

By harnessing edge AI computing on ARM industrial PCs, this approach delivers an efficient, accurate, and cost-effective automated inspection scheme for industrial settings.
