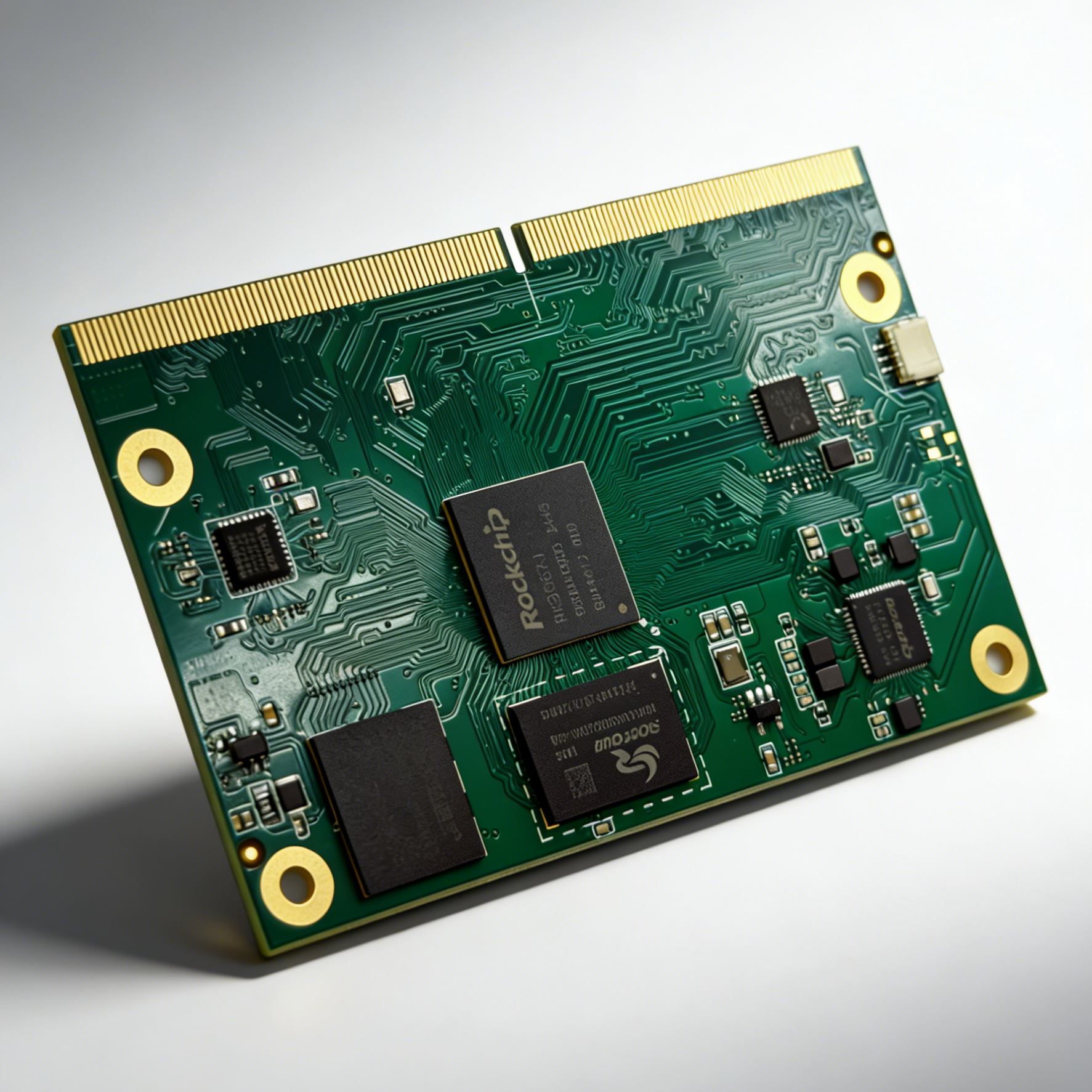

Beilai SMA3562 series is a module based on the powerful Rockchip RK3562 processor (4 x Cortex-A53 cores + 1xARM Cortex-M0 core), integrating an ISP and an eIQ Neutron Neural Processing Unit (NPU), with a maximum processing speed of 1 TOPS. This module complies with the latest SMARC 2.2 standard. The core board uses an MXM3 314-pin connector, providing rich peripheral interfaces and expansion capabilities, suitable for applications such as industrial control, edge computing, and embedded displays.
Standard Compliance: Strictly adheres to SMARC 2.2 standard, strong compatibility
Industrial-Grade Design: Supports -40℃ ~ +85℃ wide temperature range, suitable for harsh environments
High Integration: Compact 82mm × 50mm footprint with rich functional interfaces
AI Edge Computing: Integrated 1 TOPS NPU for intelligent inference tasks
| Item | Specification |
|---|---|
| Processor | Rockchip RK3562J |
| CPU | 4×Cortex-A53 @ 2.0GHz |
| GPU | Mali-G52 1-Core-2EE |
| NPU | 1 TOPS |
| Memory | 2GB/4GB LPDDR4/LPDDR4X |
| Storage | 16GB/32GB/64GB eMMC 5.1 |
| Power Input | +5V_SYS |
| Typical Power | Standby <1W, Full Load <5W |
Display Output: 1×LVDS (up to 800×1280@60Hz)
Camera Input: 2×MIPI-CSI (CSI0: 2-lane, CSI1: 4-lane)
Network Interfaces: 1×Gigabit Ethernet (RGMII) + 1×Fast Ethernet (RMII)
USB Interfaces: 1×USB 2.0 OTG + 1×USB 2.0 Host
Expansion Interfaces: 4×UART, 3×I2C, 2×SPI, 2×CAN
Audio Interface: 1×5-channel I2S
Storage Expansion: SDIO (supports SD 3.0)
Not Natively Supported: HDMI, DP, eDP, SATA, PCIe, USB 3.0/4/5
Alternative Solutions: Some display outputs can be achieved via conversion chips
Operating Temperature: -40℃ ~ +85℃ (industrial-grade models)
Thermal Design: θJA=15℃/W, recommend heatsink/fan cooling based on application
Protection Features: ESD 2kV, wide humidity tolerance (5%-95% non-condensing)
| System/Tool | Support Status |
|---|---|
| Linux | Kernel 4.19/5.10 |
| Android | 11/12 |
| Debian/Ubuntu | Fully supported |
| OpenWRT | 21.02+ |
| Development Tools | RK3562 SDK + GCC 7.5 + RKDevTool |
| Application Area | Recommended Configuration | Key Interfaces |
|---|---|---|
| Industrial HMI | 2GB+16GB | LVDS+Gigabit Ethernet+Multiple UART |
| Edge AI | 4GB+32GB | Dual Camera+Gigabit Ethernet |
| Network Appliances | 2GB+16GB | Gigabit+Fast Ethernet dual ports |
| Display Terminal | 2GB+32GB | LVDS+Audio |
| Model | Memory | Storage | Temp Range | Grade |
|---|---|---|---|---|
| SMRC-RK3562-2G16G | 2GB | 16GB | 0~70℃ | Commercial |
| SMRC-RK3562-4G32G | 4GB | 32GB | -40~85℃ | Industrial |
| SMRC-RK3562-4G64G | 4GB | 64GB | -40~85℃ | Industrial High-End |
Plug-and-Play: Compliant with SMARC 2.2 standard, easy integration with carrier boards
Industrial Reliability: Wide-temperature design for harsh environments
Balanced Performance: CPU+GPU+NPU combination for general computing and AI inference
Rich Interfaces: Covers most common industrial IoT interface requirements
Complete Ecosystem: Mainstream Linux/Android support with rich development resources
Hardware design guidelines, reference schematics, PCB layout guidelines
Complete Linux BSP source code and driver support
Professional technical support team for hardware/software assistance
