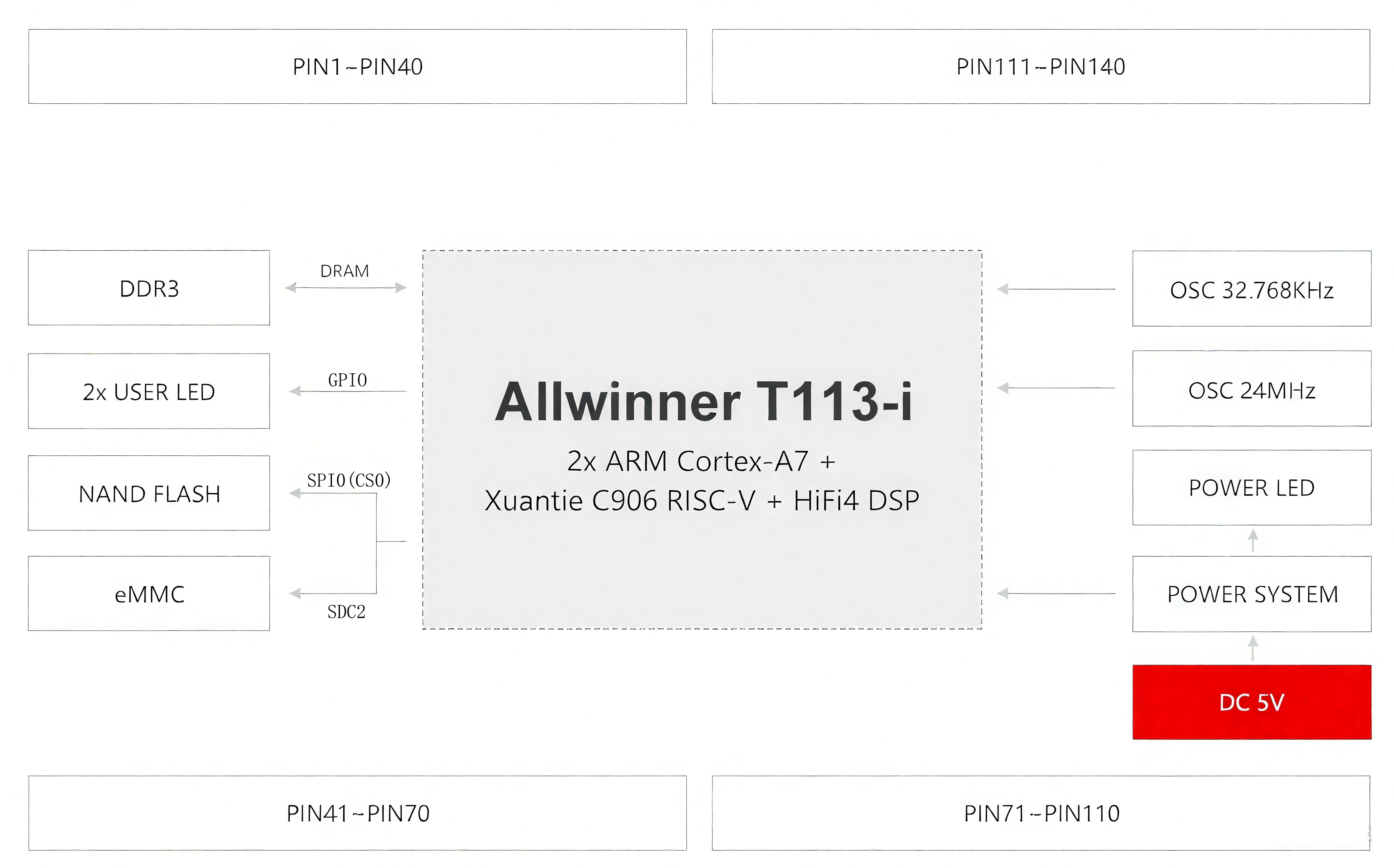

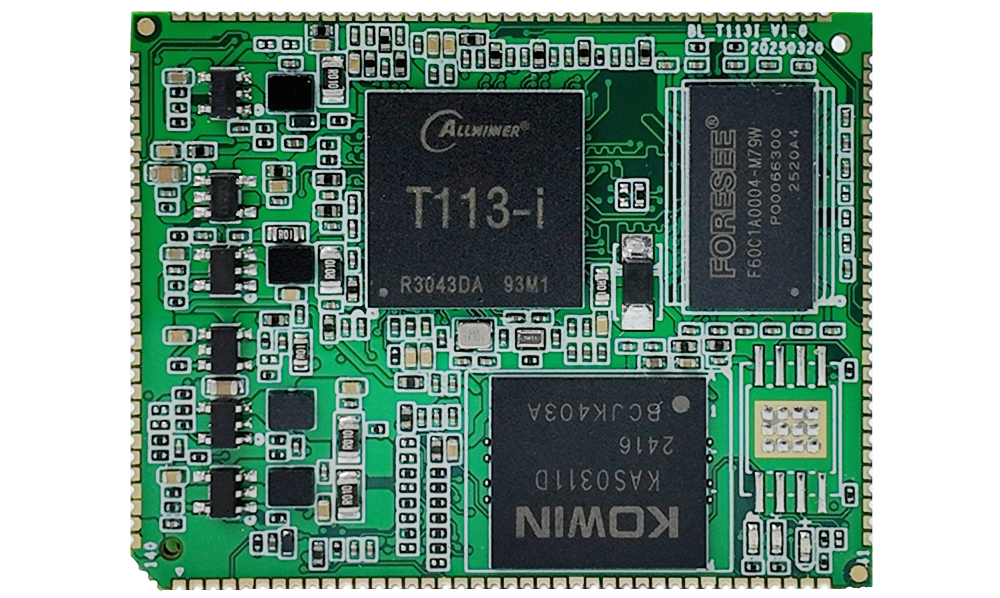

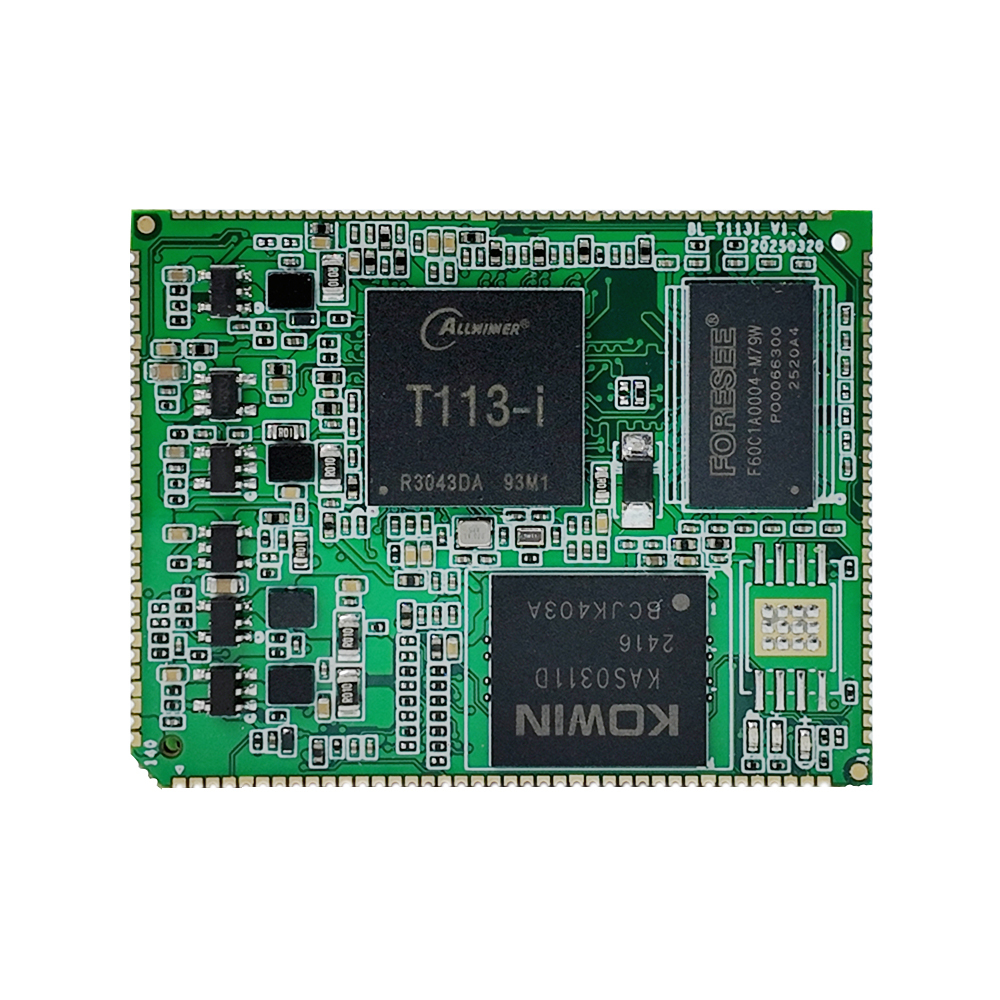

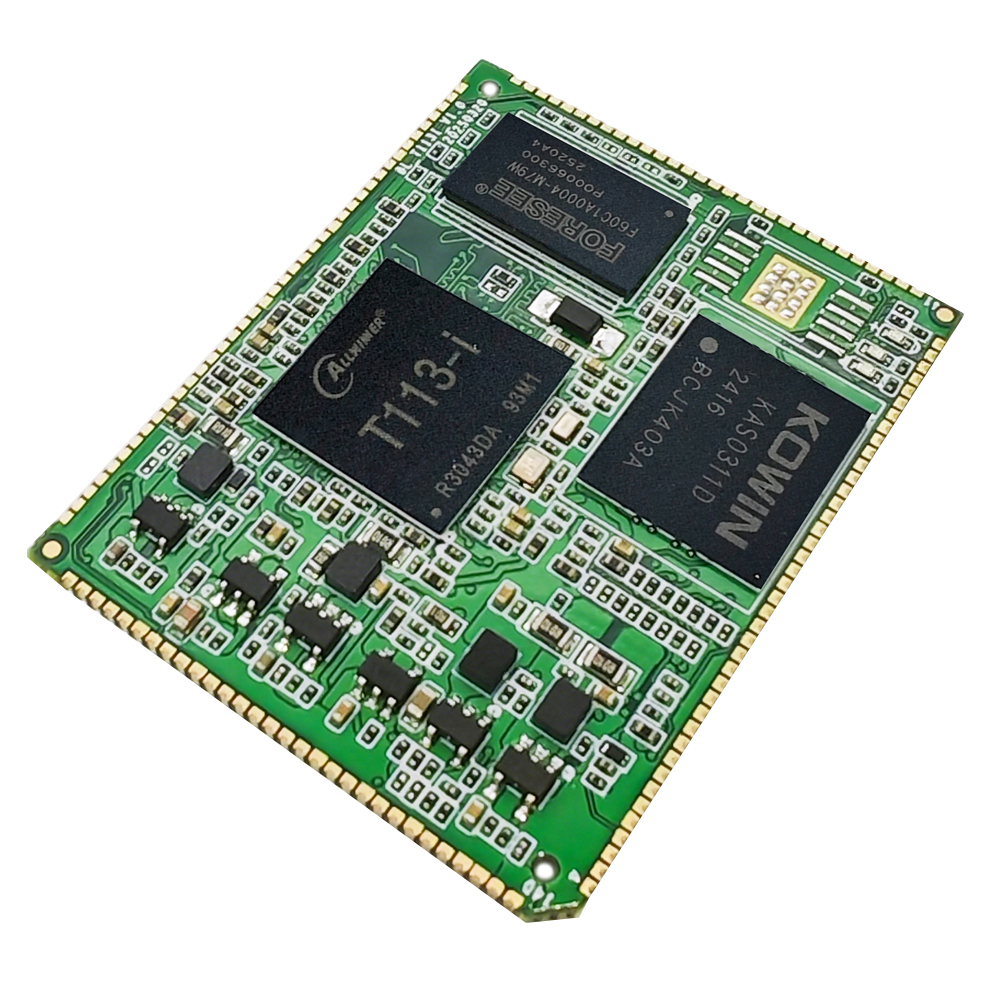

The SOM330 series is a fully domestic industrial core board based on the Allwinner Technology T113-i heterogeneous multi-core processor, featuring a dual-core ARM Cortex-A7, Xuartie C906 RISC-V, and HiFi4 DSP. The ARM Cortex-A7 processing unit operates at up to 1.2 GHz. All components, including the CPU, ROM, RAM, power supply, and crystal oscillator, are domestically produced industrial-grade solutions, achieving a 100% localization rate.
The core board uses stamp-hole connections to provide interfaces such as CAN, UART, SPI, TWI (I2C), EMAC, USB, LVDS DISPLAY, RGB DISPLAY, MIPI DSI, CVBS IN/OUT, and CSI. It supports hardware video encoding for 1080P@60fps JPEG/MJPEG and hardware decoding for 4K@30fps H.265 and 4K@24fps H.264. The board has undergone professional PCB layout and high/low-temperature testing, ensuring stable and reliable quality to meet various industrial application requirements.
The SOM330 series supports operating systems such as Linux-4.9.170, Linux-RT-4.9.170, and Ubuntu 20.04, along with development tools like Docker containers, Node-Red, and Qt-5.12.5 for graphical interface development.
The SOM330 series is designed for reliability and stability through professional electrical performance design and high/low-temperature testing, making it suitable for diverse industrial applications, including industrial IoT, edge computing gateways, photovoltaic power generation and storage systems, automation control, and railway transportation.
| Parameter | Details |
|---|---|

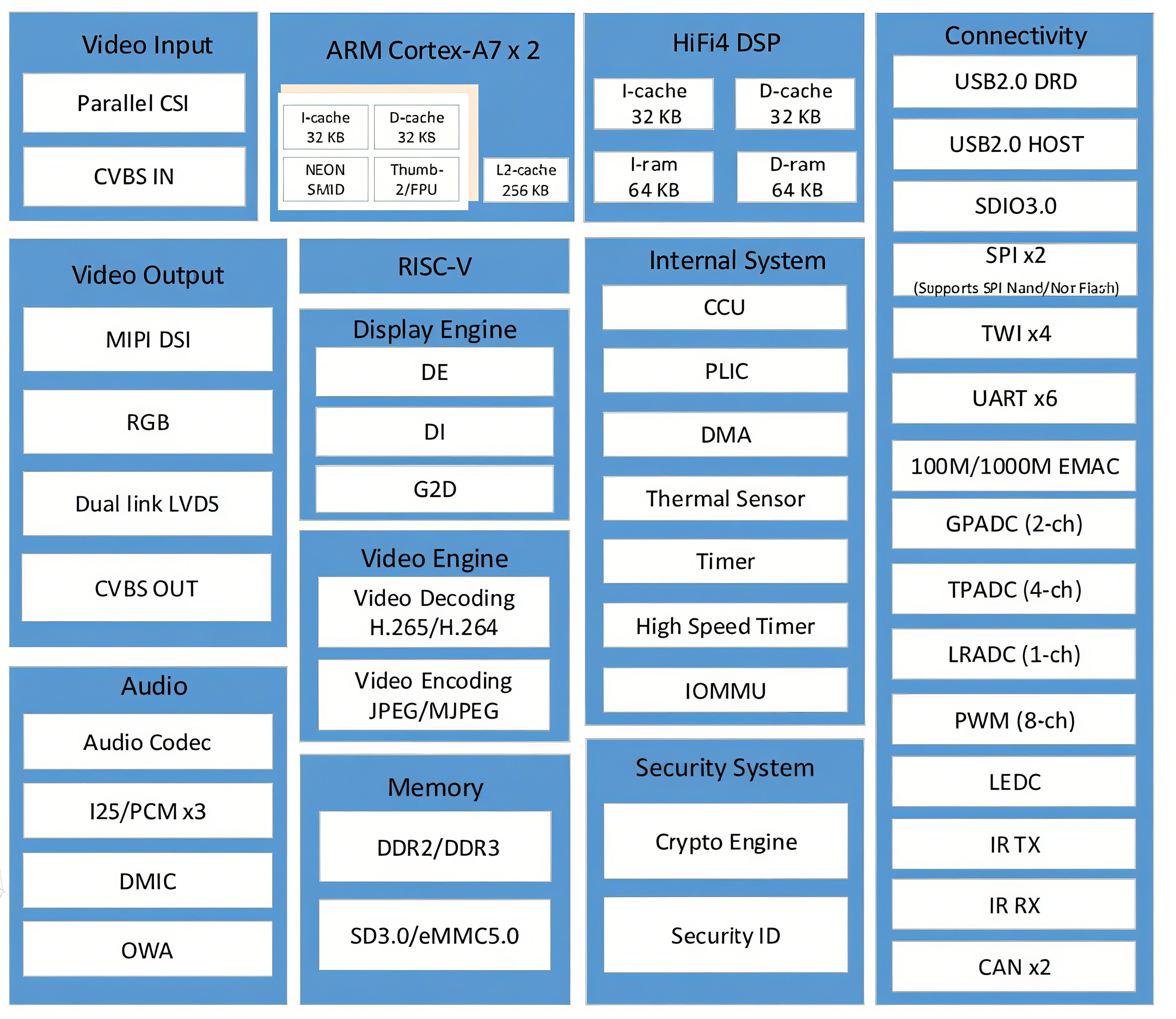

| CPU | Allwinner T113-i, 22nm process - 2x ARM Cortex-A7, up to 1.2 GHz - 1x HiFi4 DSP, up to 600 MHz 1x Xuartie C906 RISC-V (64-bit), up to 1008 MHz Decoder: - H.265 MP@L5.0, up to H.264 BP/MP/HP@L5.0, up to 4K@24fps MPEG-4 SP/ASP L5.0, up to 1080p@60fps MPEG-2/MPEG-1 MP/HL, up to 1080p@60fps JPEG/Xvid/Sorenson Spark, up to 1080p@60fps MJPEG, up to 1080p@30fps Encoder: JPEG/MJPEG, up to 1080p@60fps |
| ROM | 256 MB NAND Flash or 4/8 GB eMMC |
| RAM | 128 MB / 256 MB / 512 MB / 1 GB DDR3 |
| Stamp Holes | 2x 30-pin + 2x 40-pin, total 140 pins, 1.0 mm pitch |
| LED | 1x Power Indicator 2x User-Programmable Indicators |
| Video IN | 1x CSI (CMOS sensor parallel interface), 8-bit, supports 1080P@30fps 2x CVBS IN, supports NTSC and PAL formats |
| Video OUT | 2x LVDS DISPLAY (LVDS0, LVDS1), supports 1080P@60fps 1x RGB DISPLAY, supports 1080P@60fps 1x MIPI DSI, 4 data lanes, supports 1200P@60fps Note: LVDS0, LVDS1, and LCD0 (RGB DISPLAY) share pins; LVDS0 and MIPI DSI share pins 1x CVBS OUT, supports NTSC and PAL formats |
| Audio | 1x Audio Codec: - 3x Mono MIC IN - 1x Stereo LINE IN - 1x Stereo FM IN - 1x Differential LINE OUT - 1x Stereo Headphone OUT |
| Other Resources | 1x USB2.0 DRD (USB0) 1x USB2.0 HOST (USB1) 2x SMHC (SDC0/SDC1), supports SD3.0, SDIO3.0, eMMC5.0 (Note: Onboard eMMC uses SDC2, not available via stamp holes) 4x TWI (TWI0~TWI3, I2C), supports standard (100 Kbps) and high-speed (400 Kbps) modes 1x SPI1, 1 chip select, up to 100 MHz, supports SPI and DBI modes (Note: Onboard NAND Flash uses SPI0, not available via stamp holes; SPI0 and SDC2 share pins) 6x UART (UART0~UART5), supports 4 Mbps baud rate 8x PWM (PWM0~PWM7), supports PWM output/input capture, up to 24/100 MHz 1x EMAC, supports RGMII/RMII (10/100/1000 Mbps) 2x GPADC, 12-bit, up to 1 MHz sampling rate 4x TPADC, 12-bit, up to 1 MHz, supports 4-wire resistive touchscreens 1x LRADC, 6-bit, up to 2 KHz sampling rate 1x LEDC, supports 1024 LEDs in series, up to 800 Kbps 3x I2S/PCM, full-duplex, 8 KHz~384 KHz sampling rate 1x DMIC, supports up to 8 channels, 8 KHz~48 KHz sampling rate 1x OWA (One Wire Audio), compatible with S/PDIF 2x CIR (1x CIR TX, 1x CIR RX) 2x CAN (CAN0, CAN1), supports CAN 2.0A and CAN 2.0B protocols 3x JTAG (ARM, RISC-V, HiFi4 DSP) |
| Parameter | Details | |
|---|---|---|
| Operating Systems | Buildroot-2019.02 (Linux-5.4.61, Linux-RT-5.4.61) Ubuntu 20.04 (Linux-5.4.61, Linux-RT-5.4.61) OpenWrt (Linux-5.4.61, Linux-RT-5.4.61) SylixOS (domestic OS, planned) |
|
| GUI Development Tools | Qt-5.12.5, Qt-5.11.3 | |
| Software Development Kits | T113-i_V1.0 (Linux), T113_Tina5.0-V1.0 (Linux) | |
| Driver Support |
DDR3 | eMMC |
| UART | NAND Flash | |
| LED | KEY | |
| SD | CAN | |
| Ethernet | USB | |
| 4G/WIFI | CVBS IN | |
| RTC | MIC IN/LINE IN | |
| H/P OUT | LVDS LCS | |
| TFT LCD | MIPI LDC/HDMI OUT | |
| CVBS OUR | Touch Screen | |
Note: Some examples may not yet be released. Contact sales for details.
| Parameter | Min | Typical | Max |
|---|---|---|---|
| Operating Temperature (Industrial) | -40°C | - | 85°C |
| Operating Temperature (Wide-Temp) | -20°C | - | 70°C |
| Operating Voltage | - | 5.0V | - |
| State | Typical Voltage | Typical Current | Typical Power |
|---|---|---|---|
| Idle | 5.0V | 0.12A | 0.60W |
| Full Load | 5.0V | 0.22A | 1.11W |
| Parameter | Details |
|---|---|

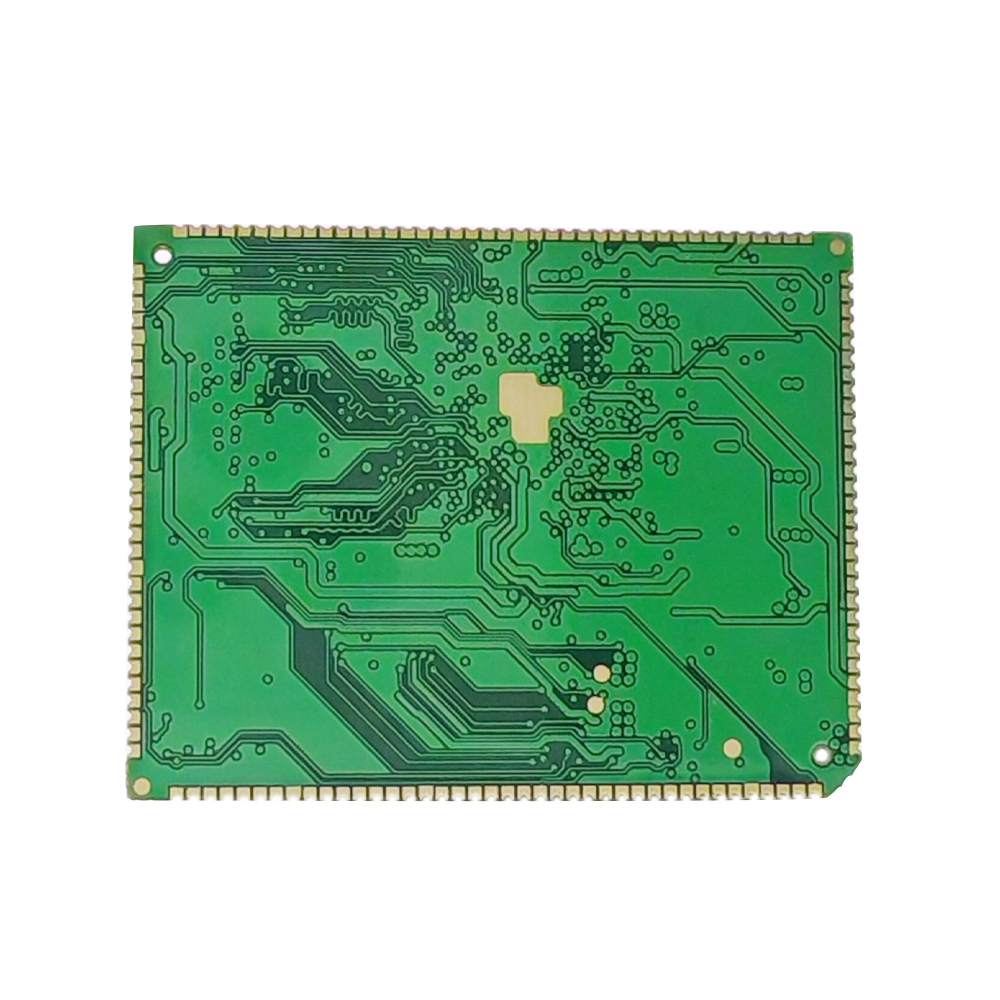

| PCB Dimensions | 35 mm x 45 mm |
| PCB Layers | 8 layers |
| PCB Thickness | 1.6 mm |
| Model | MCU | Frequency | Cores | NAND Flash | eMMC | DDR3 | Temperature Grade |
|---|---|---|---|---|---|---|---|
| SOM330 | T113-i | 1.2 GHz | 2x A7 | 256 MB | - | 256 MB | Industrial (-40~85°C) |
| SOM331 | T113-i | 1.2 GHz | 2x A7 | 256 MB | - | 128 MB | Industrial (-40~85°C) |
| SOM332 | T113-i | 1.2 GHz | 2x A7 | - | 4 GB | 256 MB | Industrial (-40~85°C) |
| SOM333 | T113-i | 1.2 GHz | 2x A7 | - | 4 GB | 512 MB | Industrial (-40~85°C) |
| SOM334 | T113-i | 1.2 GHz | 2x A7 | - | 8 GB | 512 MB | Industrial (-40~85°C) |
| SOM335 | T113-i | 1.2 GHz | 2x A7 | - | 8 GB | 1 GB | Industrial (-40~85°C) |
| SOM336 | T113-i | 1.2 GHz | 2x A7 | - | 4 GB | 256 MB | Wide-Temp (-20~70°C) |
| Item | Quantity | Remarks |
|---|---|---|
| SoM330 Core Board | 1 | - |
