Name: Rockchip RK3562 Cortex-A53+M0 ARM Embedded SoM
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: SoM370 Series
Availability: InStock
Rating: 5 (1 reviews)

No.SoM370 Series

CPU

Rockchip RK3562J/RK3562, Cortex-A53+M0, clock speed up to 2.0GHz

RAM

1/2/4GB LPDDR4X

ROM

8/16/32GB eMMC

Model:

SoM370

Get A Quote

Description

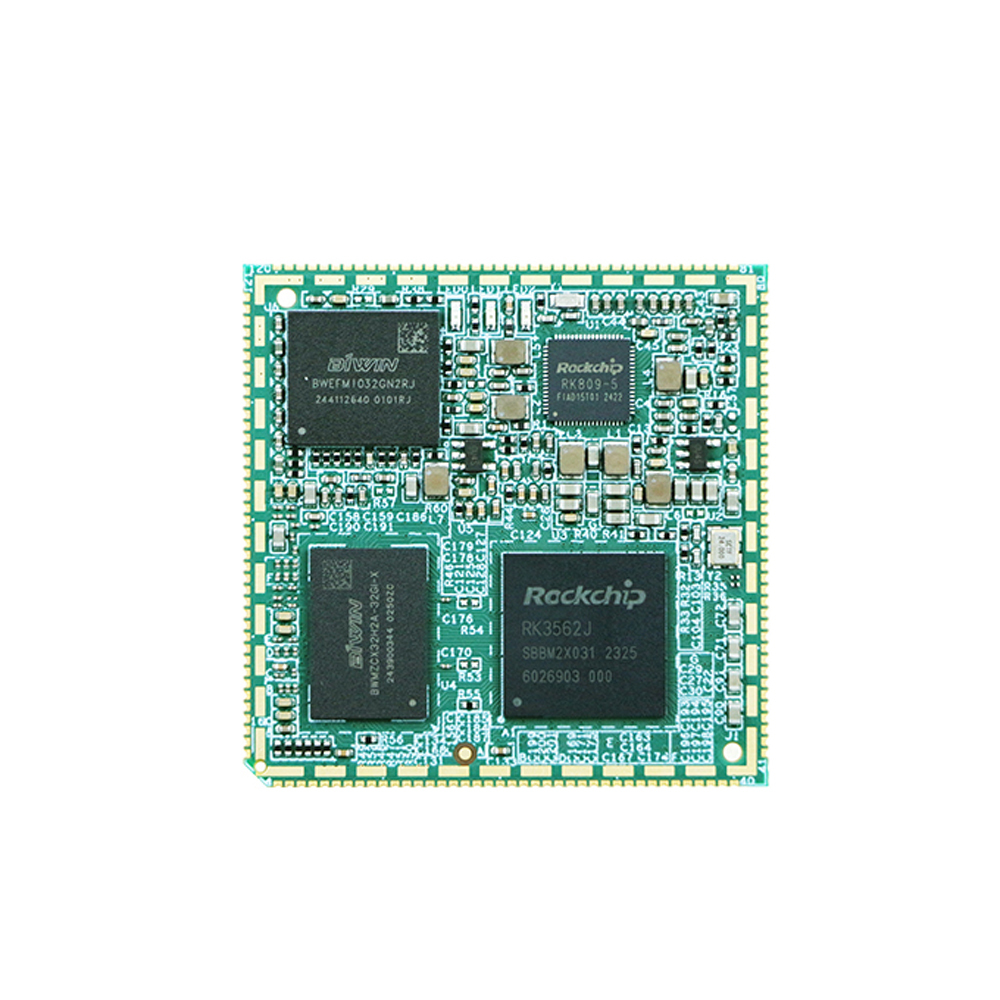

SoM370 series is an industrial core board designed with the Rockchip RK3562J/RK3562 processor, featuring a quad-core ARM Cortex-A53 and a single-core ARM Cortex-M0, with a main frequency of up to 2.0GHz.

The core board utilizes LCC stamp holes and LGA packaging to expose interfaces such as MAC, GMAC, PCIe 2.1, USB 3.0, CAN, UART, SPI, MIPI CSI, MIPI DSI, RGB, and LVDS. It also features a built-in 1TOPS NPU, Mali-G52-2EE GPU, and a 13M ISP. It supports 1080P@60fps H.264 video encoding and 4K@30fps H.265 video decoding. The core board has undergone professional PCB layout and high and low temperature testing, supports optional shielding cover, and has stable and reliable quality to meet the requirements of various industrial application environments.

SoM370 Series Selection Table

Model	MCU	Frequency	Cores	NPU	eMMC	LPDDR4X	Temperature Grade
SOM370	RK3562J	1.8GHz	4 x A53 + 1 x M0	1TOPS	8GB	1GB	Industrial Grade: -40~85℃
SOM371	RK3562J	1.8GHz	4 x A53 + 1 x M0	1TOPS	16GB	2GB	Industrial Grade: -40~85℃
SOM372	RK3562J	1.8GHz	4 x A53 + 1 x M0	1TOPS	32GB	4GB	Industrial Grade: -40~85℃
SOM373	RK3562	2.0GHz	4 x A53 + 1 x M0	1TOPS	8GB	1GB	Commercial Grade: 0~70℃
SOM374	RK3562	2.0GHz	4 x A53 + 1 x M0	1TOPS	16GB	2GB	Commercial Grade: 0~70℃
SOM375	RK3562	2.0GHz	4 x A53 + 1 x M0	1TOPS	32GB	4GB	Commercial Grade: 0~70℃
