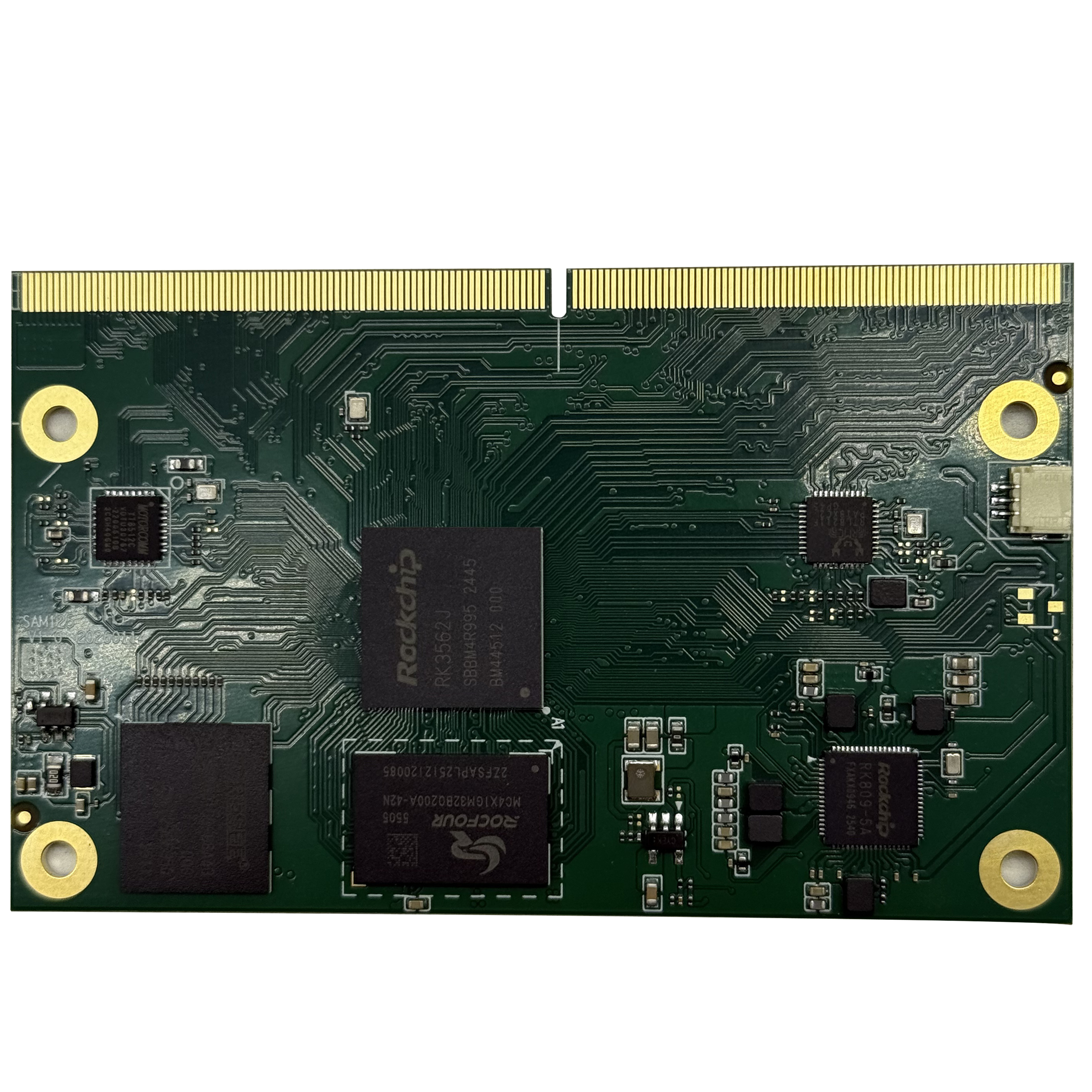

Beilai SMA3576 series is a module based on the powerful Rockchip RK3576J/RK3576 processor (4xCortex-A72 cores + 4xCortex-A53 cores + 1xARM Cortex-M0 core), integrating an ISP and an eIQ Neutron Neural Processing Unit (NPU), with a maximum processing speed of 6 TOPS. This module complies with the latest SMARC 2.2 standard. The core board uses an MXM3 314-pin connector, Fully leveraging the powerful processing capabilities of the RK3576, it is suitable for high-end applications such as industrial control, machine vision, and edge AI computing.
| Item | Specification |
|---|---|
| Processor | Rockchip RK3576 |
| CPU | 4×Cortex-A76 @ 2.4GHz + 4×Cortex-A55 @ 1.8GHz |
| GPU | ARM Mali-G52 MC3 |
| NPU | 6 TOPS (INT8, supports multiple precisions) |
| Video Codec | 8K@30fps decode, 4K@60fps encode (H.265/H.264/VP9) |
| Memory | 2GB/4GB/8GB/16GB LPDDR5/LPDDR5X |
| Storage | 16GB/32GB/64GB eMMC 5.1 |
| Power Input | +5V_SYS |
| Typical Power | Standby <1W, Full Load <5W |
Display Output: 1×HDMI 2.1 (4K@120fps) + 1×eDP 1.4 (4K@60fps) + 1×MIPI-DSI (4-lane)
Camera Input: 2×MIPI-CSI (CSI0: 2-lane, CSI1: 4-lane @ 4.5Gbps)
Network Interface: Dual Gigabit Ethernet (RGMII)
High-speed Storage: Native SATA 3.0 Interface
High-speed Expansion: 1× PCIe Interface (for Wi-Fi/4G/AI accelerator cards)
USB Interface: 1×USB 3.0 Host (5Gbps) + 1×USB 2.0 OTG
Expansion Interfaces: 4×UART, 5×I2C, 2×SPI, 2×CAN
Audio Interface: 5× 5-channel I2S audio interfaces
No Native LVDS Support: Can be implemented via MIPI-DSI to LVDS conversion chip.
No USB4/USB5 Support: Can be expanded via USB Hub on the carrier board.
Only 1× PCIe Lane Supported: Due to hardware resource multiplexing.
Operating Temperature: -40℃ ~ +85℃ (Industrial-grade models)
Thermal Characteristics: θJA=15℃/W, θJC=3℃/W, Max Junction Temp 125℃
Cooling Recommendation: Natural convection, forced air cooling, or heat pipe + forced air cooling based on application scenario.
| System/Tool | Support Status |
|---|---|
| Linux | Kernel 4.19/5.10 (Fully Supported) |
| Android | 11/12 (Fully Supported) |
| Debian/Ubuntu | Fully Supported |
| Development SDK | RK3576 SDK V1.0+ |
| Driver Support | Full support for display, camera, network, USB, audio, and all other peripherals. |
| Application Area | Recommended Config | Core Advantages |
|---|---|---|
| High-end Industrial HMI | 4GB+32GB | HDMI+eDP dual 4K display, powerful CPU for complex UI |
| Machine Vision/AI Inspection | 8GB+64GB | 6 TOPS NPU + dual high-speed camera inputs |
| Edge AI Server | 8/16GB + large storage | Multi-core high-performance CPU + PCIe for AI cards + dual Gigabit Ethernet |
| Digital Signage/Smart Retail | 4GB+32GB | 4K@120Hz ultra-HD output, supports HDR10+ |
| Model | Memory | Storage | Temp Range | Grade |
|---|---|---|---|---|
| SMRC-RK3576-2G16G | 2GB LPDDR5 | 16GB | 0~70℃ | Commercial |
| SMRC-RK3576-4G32G | 4GB LPDDR5 | 32GB | -40~85℃ | Industrial |
| SMRC-RK3576-4G64G | 4GB LPDDR5 | 64GB | -40~85℃ | Industrial High-End |
Performance Leap: A76+A55 big.LITTLE architecture delivers a comprehensive performance boost across CPU, GPU, and NPU.
AI Computing Flagship: 6 TOPS NPU, 7.5x the power of RK3562J (0.8TOPS), suitable for complex model deployment.
Powerful Display Capability: Native support for HDMI 4K@120fps and eDP, no conversion chip needed.
Comprehensive Interface Upgrade: Adds native SATA, PCIe, USB 3.0, dual Gigabit Ethernet, greatly enhanced expandability.
Leading Memory Technology: Supports LPDDR5/LPDDR5X, offering greater bandwidth and higher energy efficiency.
