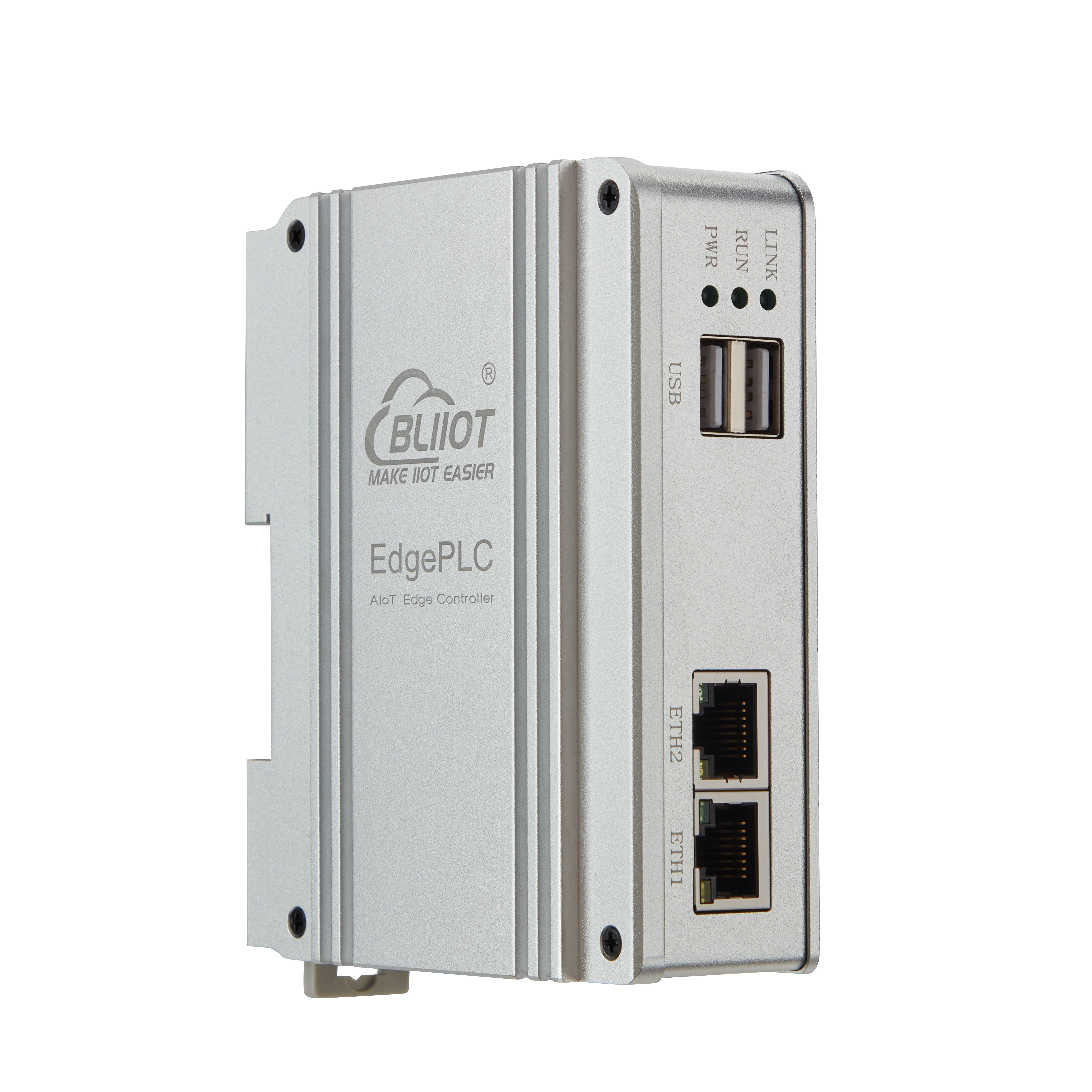

Name: TI Sitara ARM Industrial Embedded Controller EdgePLC BL235 Series
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: BL235 Series
Availability: InStock
Rating: 5 (1 reviews)

No.BL235 Series

BL235 is powered by TI Sitara AM62x (up to 4× Cortex-A53 @1.4GHz + Cortex-M4F), supports up to 32 N‑series I/O modules, IGH EtherCAT master, Ubuntu 20.04, Docker, Node‑RED, OpenPLC, NexPLC and CODESYS

Processor

TI Sitara AM6232/AM6254

SoC

2/4xA53

RAM

512MB, 1/2GByte LPDDR4X

ROM

4/8GByte eMMC

I/O Ports

Optional

Get A Quote

Description

Core Features

High‑performance ARM + real‑time co-processor architecture

TI Sitara AM62x Processor

2/4× ARM Cortex-A53 up to 1.4GHz + 1× Cortex-M4F (400MHz)
1× Cortex-R5F (system management) + PRU-ICSS (2× 32-bit PRU)
3D GPU (AM6254), H.264/H.265 1080p@60fps encode/decode
4/8GB eMMC, 512MB/1GB/2GB LPDDR4
Industrial -40°C to +85°C temperature grade

Rich I/O & Distributed Expansion

2× 10/100M Ethernet (BL235) / 3× 100M (BL235A)
2× USB 2.0, optional HDMI 2.0 (1080p@60fps)
Mini PCIe for Wi-Fi/4G/5G, SIM slot, antenna

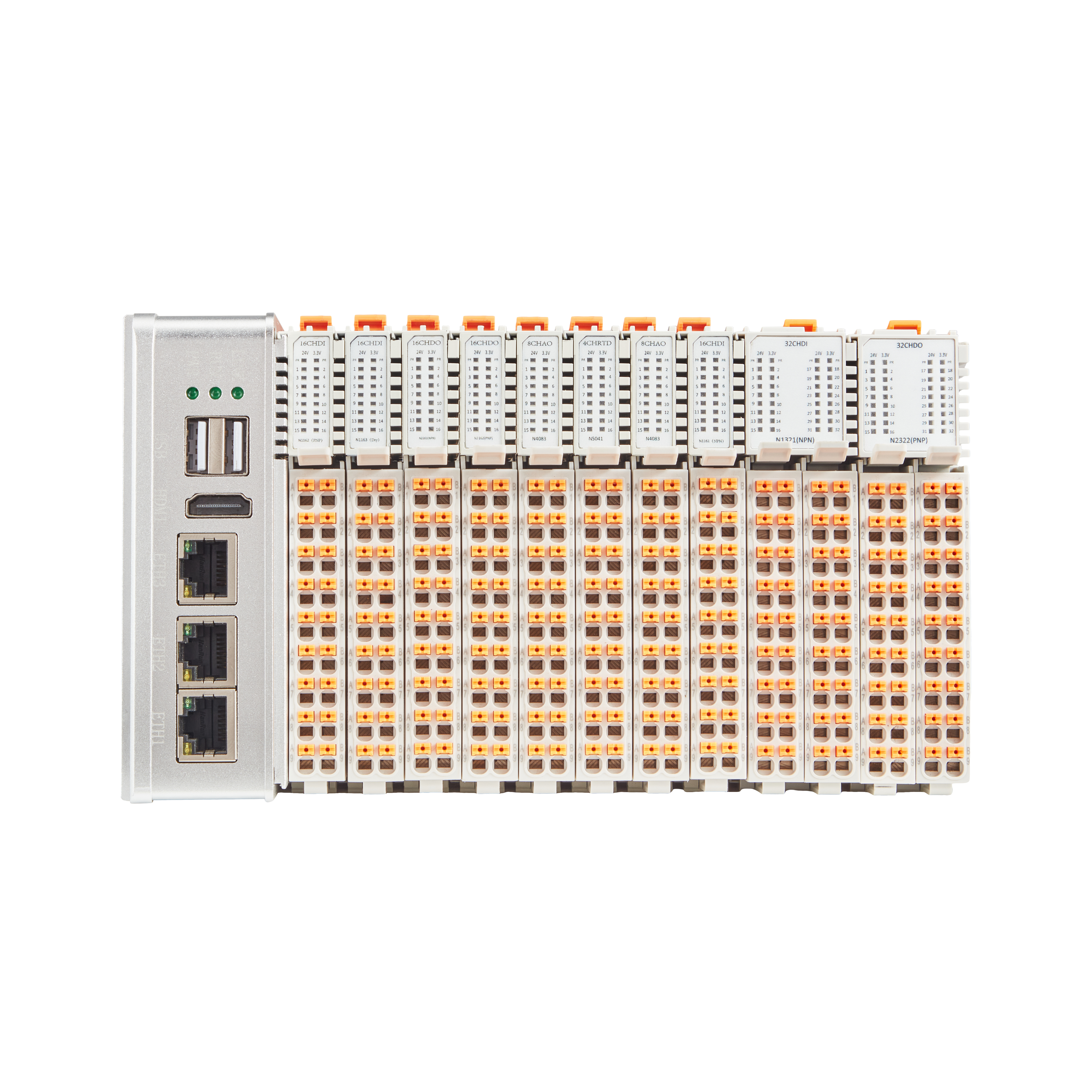

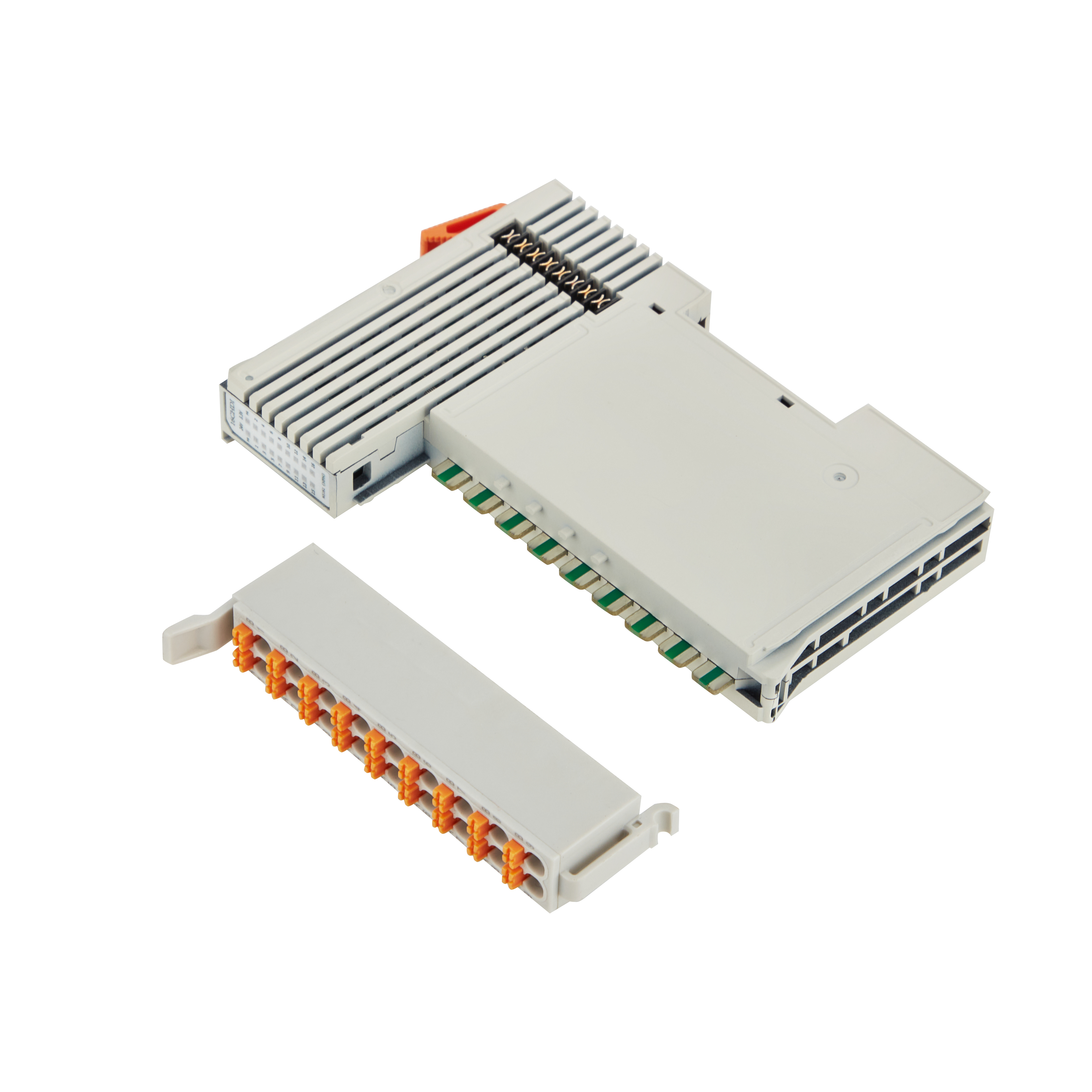

Supports up to 32 N‑series I/O modules (DI/DO, AI/AO, RTD, TC, PWM)
2× RS485 or 1× RS485 + 1× CAN (X91 option)

Unified Software Ecosystem

Ubuntu 20.04 / EdgePLC‑OS (Linux 5.10 + RT)
OpenPLC, NexPLC, CODESYS Runtime (IEC 61131‑3)
IGH EtherCAT master, Node‑RED, Docker & K3s
SoftMotion / CNC & Robotics options (CODESYS Pro)
BLRAT remote access, QuickConfig, BLIoTLink

Industrial‑grade Reliability

ESD level 3, EFT level 3, Surge level 3 (IEC 61000‑4)
Wide operating temperature -20°C to +85°C (industrial)
DIN35 rail mount, IP30 protection, aluminium + stainless steel
Independent hardware watchdog, reverse polarity protection
Vibration & free fall tested (GB/T 2423)

Key Specifications Snapshot

Performance and flexibility at the edge

MHz

CPU Frequency (A53)

Max I/O Modules

eMMC Storage (max)

LPDDR4 RAM (max)

Software Version Options

Choose OpenPLC, NexPLC or CODESYS with advanced motion

Lite Edition

OpenPLC

Ubuntu 20.04 + OpenPLC runtime
IEC 61131-3 (ST, LD, FBD, IL, SFC)
Lightweight & open source
Node‑RED, Modbus, MQTT included
No motion control

Standard Edition

NexPLC

NexPLC integrated platform (IEC 61131-3)
Cloud‑edge collaboration & remote OTA
Built‑in BLIoTLink, QuickConfig, BLRAT
Ideal for IIoT gateways & data fusion
No motion control

Professional Edition

CODESYS SoftMotion / CNC optional

CODESYS Runtime (IEC 61131‑3)
SoftMotion (basic motion) or CNC + Robotics (advanced)
IGH EtherCAT master, multi‑axis control
Ideal for robotics, precision machining, high‑end automation
Full containerization & edge computing support

Pro edition supports CODESYS motion options: -SM (SoftMotion) / -CR (CNC & Robotics). Standard/Lite do not include CODESYS.

Typical Applications

From real‑time control to industrial IoT

Robotics & CNC

Multi‑axis motion, EtherCAT synchronization, precision control

Energy Storage (EMS/BMS)

Battery monitoring, predictive maintenance, data logging

PV & Inverter Control

Power optimization, anomaly detection, remote management

Industrial Gateway

Protocol conversion, data aggregation, MQTT to cloud

Rail Transit

Signal control, passenger counting, condition monitoring

Smart Factory

PLC logic, SCADA integration, energy management

Quality & Reliability

Certified for harsh industrial environments

EMC Compliance

GB/T 9254 / CISPR 32 Class A
ESD level 3 (±6kV contact, ±8kV air)
EFT level 3 (power 2kV, signal 1kV)
Surge level 3 (2kV diff, 4kV common)

Environmental Tests

-20°C ~ +85°C operation (industrial grade)
Damp heat 40°C / 85% RH for 48h
Sinusoidal vibration 5-500Hz, 2g
Free fall 0.8m (packaged) / IP30 protection

Software & Support

Preinstalled BLIoTLink, BLRAT, QuickConfig
Ubuntu & kernel source (Linux 5.10 + RT)
Docker & K3s ready, SDK, demo programs
Long‑term maintenance & professional support

Power Your Next Automation Project with BL235

The EdgePLC BL235 series combines TI Sitara AM62x performance, IEC 61131‑3 software flexibility (OpenPLC / NexPLC / CODESYS), modular N‑series I/O up to 32 modules, and industrial reliability. From EtherCAT motion to remote maintenance, unleash true edge control.
