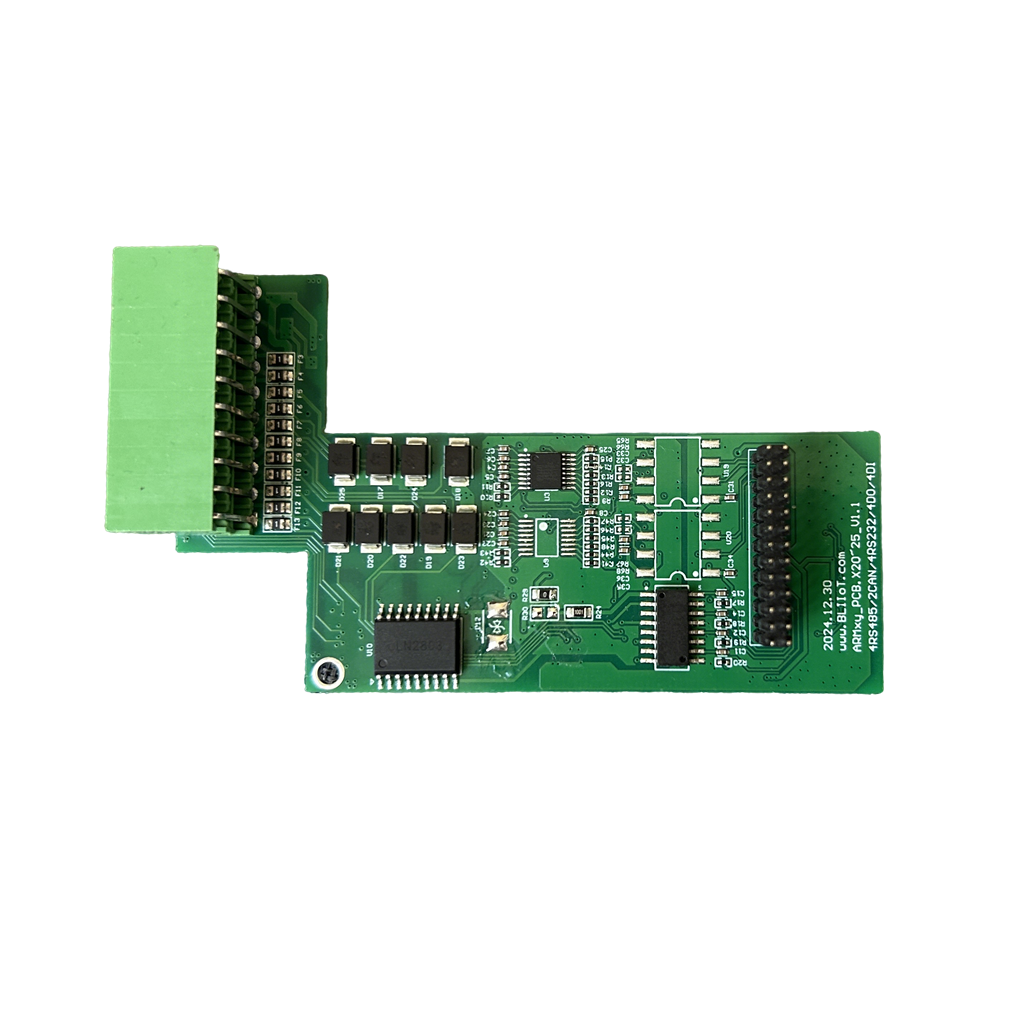

X0 is an industrial-grade expansion module specially designed for the ARMxy series ARM embedded computers. The module features overvoltage protection, fault protection, and overcurrent protection circuit designs to ensure stability and reliability in complex industrial environments.
X0 is an industrial-grade expansion module specially designed for the ARMxy series ARM embedded computers. The module features overvoltage protection, fault protection, and overcurrent protection circuit designs to ensure stability and reliability in complex industrial environments.
|
Name |
Parameter |
Description |
|
Power Supply |
Operating Power |
Internal Voltage |
|
Working Voltage |
12V-24V |
|
|
Power Consumption |
2W |
|
|
GPIO |
Channel |
8 Channels |
|
Output Mode |
Single-ended output |
|
|
Output Voltage |
High level: 3.3V Low level: 0.7V |
|
|
Maximum Output Current per Channel |
5mA |
|
|
Input Withstand Voltage |
Maximum voltage: 3.5V Minimum voltage: 0V |
|
|
Input Logic Level |
Logic 1: 3.0V ~ 3.5V Logic 0: 0V ~ 1.0V |
|
|
Input Current |
5mA |
|
|
Electrical Isolation |
Not supported |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
Note: The GPIO ports do not support electrical isolation and cannot withstand transient high voltage or large current.
