X8 is an industrial-grade expansion module specially designed for the ARMxy series ARM embedded computers. The module features overvoltage protection, fault protection, and overcurrent protection circuit designs to ensure stability and reliability in complex industrial environments.
X8 is an industrial-grade expansion module specially designed for the ARMxy series ARM embedded computers. The module features overvoltage protection, fault protection, and overcurrent protection circuit designs to ensure stability and reliability in complex industrial environments.
|
Name |
Parameter |
Description |
|
|
Power Supply |
Operating Power |
Internal Voltage |
|
|
Working Voltage |
12V-24V |
||
|
Power Consumption |
2W |
||
|

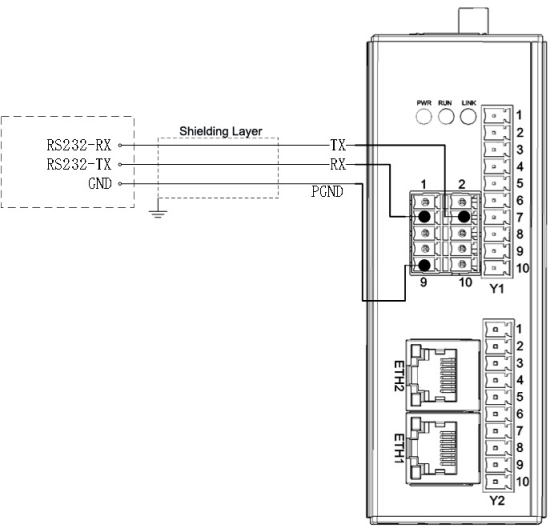

RS485/RS232 |
Channel |
1×RS232 + 1×RS485 |
|
|
Maximum Baud Rate |
RS232: 115kbps RS485: 10Mbps |
||
|
Data Bits |
RS232: 5-bit, 6-bit, 7-bit, 8-bit (configurable) RS485: 5-bit, 6-bit, 7-bit, 8-bit (configurable) |
||
|
Stop Bits: |
RS232: 1-bit, 2-bit (configurable) RS485: 1-bit, 2-bit (configurable) |
||
|
Parity |
RS232: Odd parity, Even parity, No parity (configurable) RS485: Odd parity, Even parity, No parity (configurable) |
||
|
Flow Control |
RS232: Not supported RS485: Not supported |
||
|
Impedance |
RS232: Input impedance 300 Ω, Output impedance 3 kΩ RS485: 120 Ω |
||
|
Measured Distance and Operating Baud Rate |
RS232: 15 meters (baud rate ≤ 1200 bps) RS485: 200 meters (baud rate ≤ 115200 bps) |
||
|
Supports Multi-Drop Communication |
RS232: Not supported RS485: Requires custom development |
||
|
Communication Mode |
RS232: Full-duplex / Half-duplex / Simplex RS485: Unidirectional Half-duplex / Simplex |
||
|
Data Transmission Mode |
RS232: Transmit and receive mode, Receive-only mode, Transmit-only mode RS485: Transmit and receive mode, Receive-only mode, Transmit-only mode |
||
|
Logic Level |
RS232 |
Logic “1”: 1.5 V |
|
|
Logic “0”: 2.4 V |
|||
|
RS485 |
Logic “1”: -3 V |
||
|
Logic “0”: +3 V |
|||
|
Maximum Output Current per Channel |
100mA (at 26℃) |
||
|
Isolation Protection |
2KVrms (built-in) |
||
|
Communication Cable Requirements |
Shielded twisted pair cable |
||
|
CAN |
Channel |
1 Channel |
|
|
Transmission Mode |
CAN BUS |
||
|
Maximum Baud Rate |
Nominal Bit Rate: 1000Kbps Data Bit Rate: 5000Kbps |
||
|
Flow Control |
Not supported |
||
|
Impedance |
45KΩ |
||
|
Measured Distance and Operating Baud Rate |
200 meters (baud rate = 500 Kbps) |
||
|
Multi-Node Communication |
Support |
||
|
Logic Voltage |
Logic "1": 3.5V Logic "0": 1.2V |
||
|
Maximum Output Current per Channel |
100mA (26℃) |
||
|
Isolation Protection |
2KVrms (built-in) |
||
|
Communication Cable Requirements |
Shielded twisted pair cable |
||
|
GPIO |
Channel |
2 Channels |
|
|
Output Mode |
Single-ended output |
||
|
Output Voltage |
High level: 3.3V Low level: 0.7V |
||
|
Maximum Output Current per Channel |
5mA |
||
|
Input Withstand Voltage |
Maximum voltage: 3.5V Minimum voltage: 0V |
||
|
Input Logic Level |
Logic 1: 3.0V ~ 3.5V Logic 0: 0V ~ 1.0V |
||
|
Input Current |
5mA |
||
|
Isolation Protection |
Not support electrical isolation |
||
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
|
IEC 61000-4-4 (EFT) Level 3 |
|||
|
IEC 61000-4-5 (Surge)Level 3 |
|||
