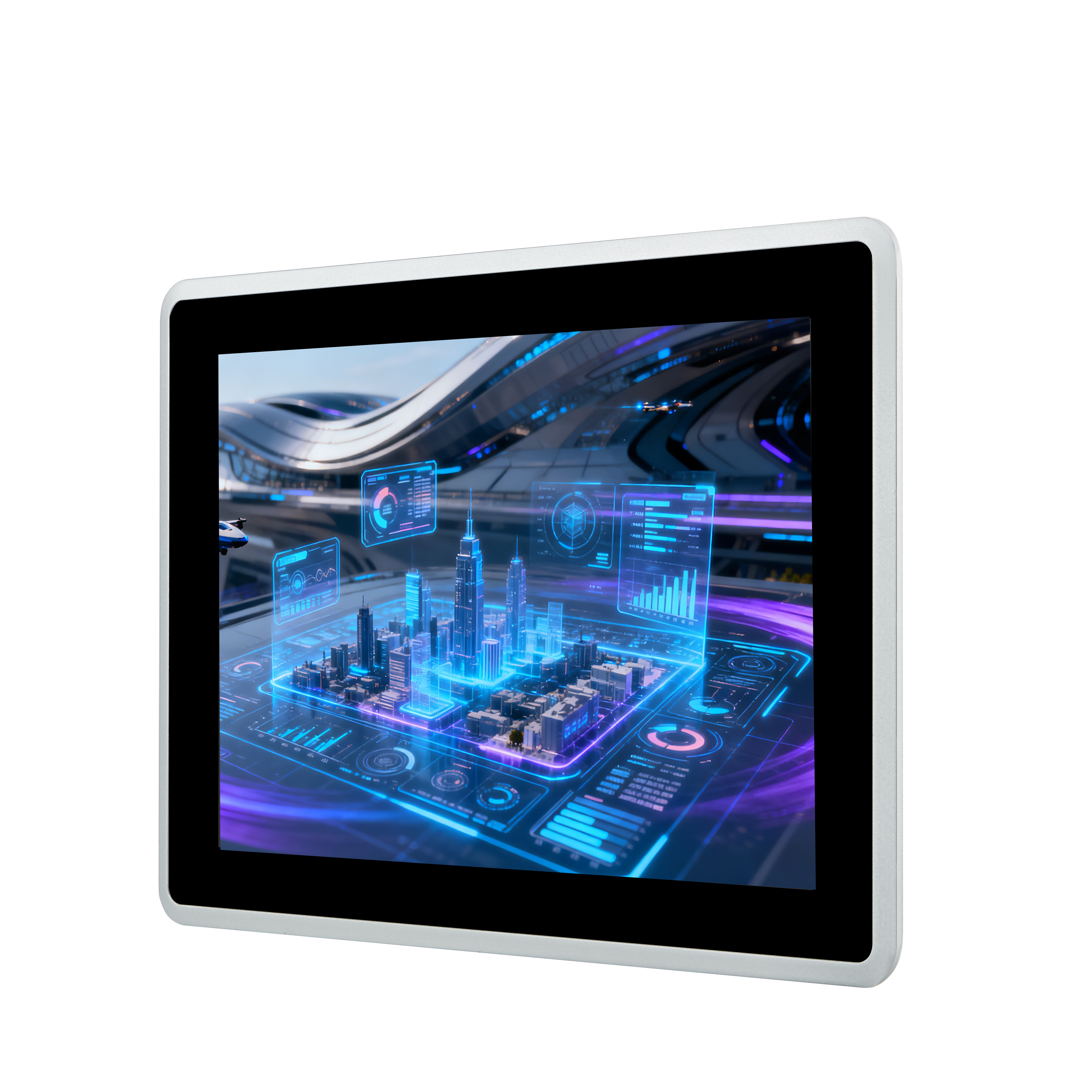

Industrial Edge Visualization Tablet PC TPC371 Series

The TPC371 Edge visualization tablet PC is a high-performance human-machine interface solution designed for harsh industrial environments. This series of products is based on a low-power, high-performance ARM architecture processor, featuring a Rockchip RK3562/RK3562J quad-core Cortex-A53 + Cortex-M0 processor with a clock speed of up to 1.8GHz/2.0GHz. It integrates a 1TOPS NPU, supports various deep learning frameworks, and is suitable for edge computing and visualization scenarios. Featuring a 10.1-inch high-brightness industrial-grade LCD, it supports wide-temperature operation (-30℃ to 70℃) and offers IP66 front panel protection and IK08 impact resistance, ensuring stable operation in demanding conditions.

Core Advantages

🔹 Powerful Edge Intelligence

• Quad-core Cortex-A53 + Cortex-M0 co-processor, main frequency up to 2.0GHz

• Integrated 1TOPS NPU supporting AI frameworks like TensorFlow and PyTorch

• Enables edge-side deep learning inference for intelligent detection and analysis

🔹 Rugged & Bright Design

• 10.1-inch high-brightness LCD, readable in strong light

• IP66 front panel protection, IK08 impact resistance

• Wide operating temperature: -30℃ ~ 70℃

🔹 Open & Flexible Software Ecosystem

• Supports multiple OS: Linux, Ubuntu, Debian, Android

• Pre-installed tools: Docker, Node-RED, Qt, Python

• Built-in BLIoTLink protocol conversion software and BLRAT remote maintenance tool for rapid deployment

🔹 Rich & Expandable Interfaces

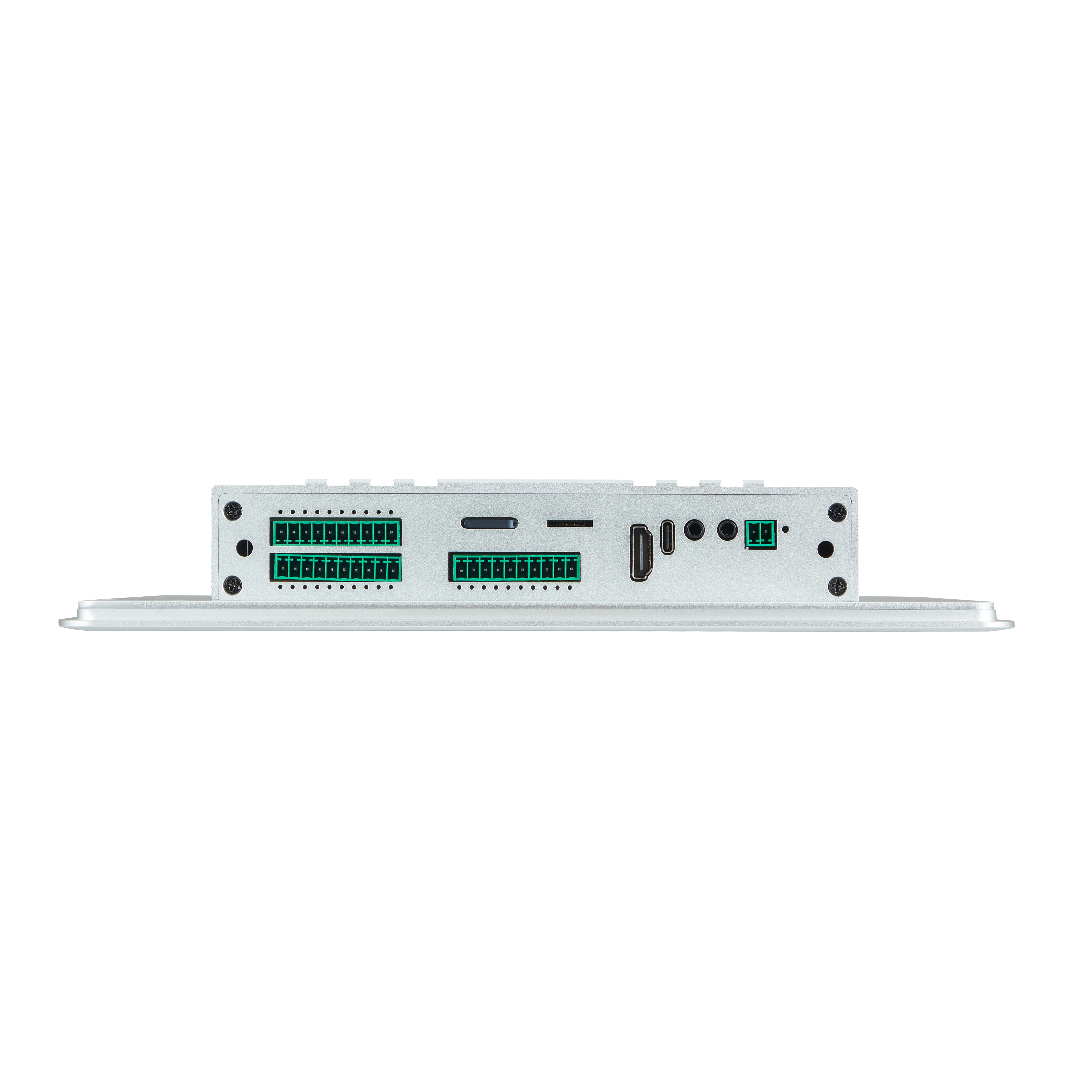

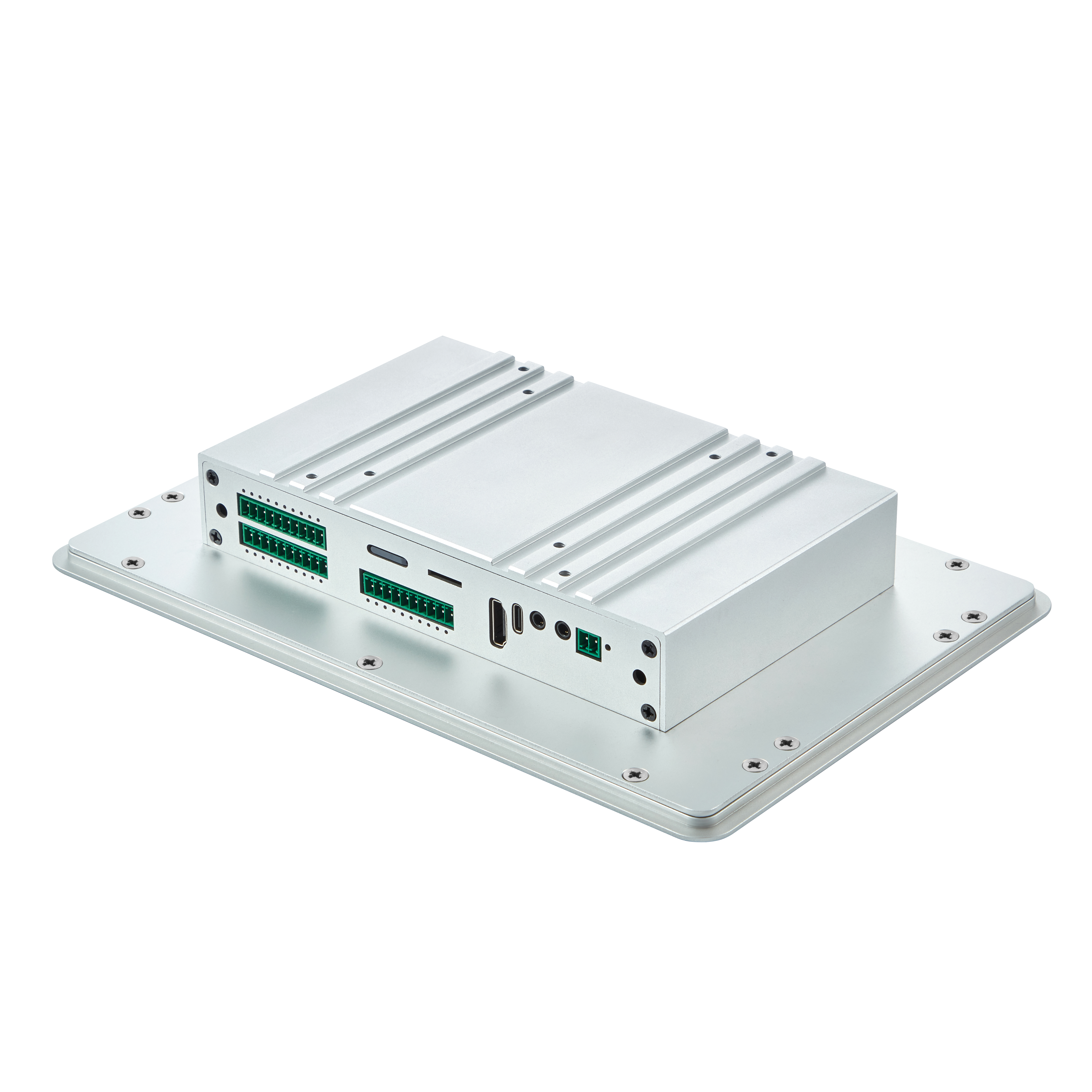

• Supports X/Y series I/O expansion boards for flexible configuration of RS485, CAN, DI, DO, AI, AO, PT100, relays, etc.

• Dual Mini PCIE slots supporting 4G/5G/WiFi/BT modules

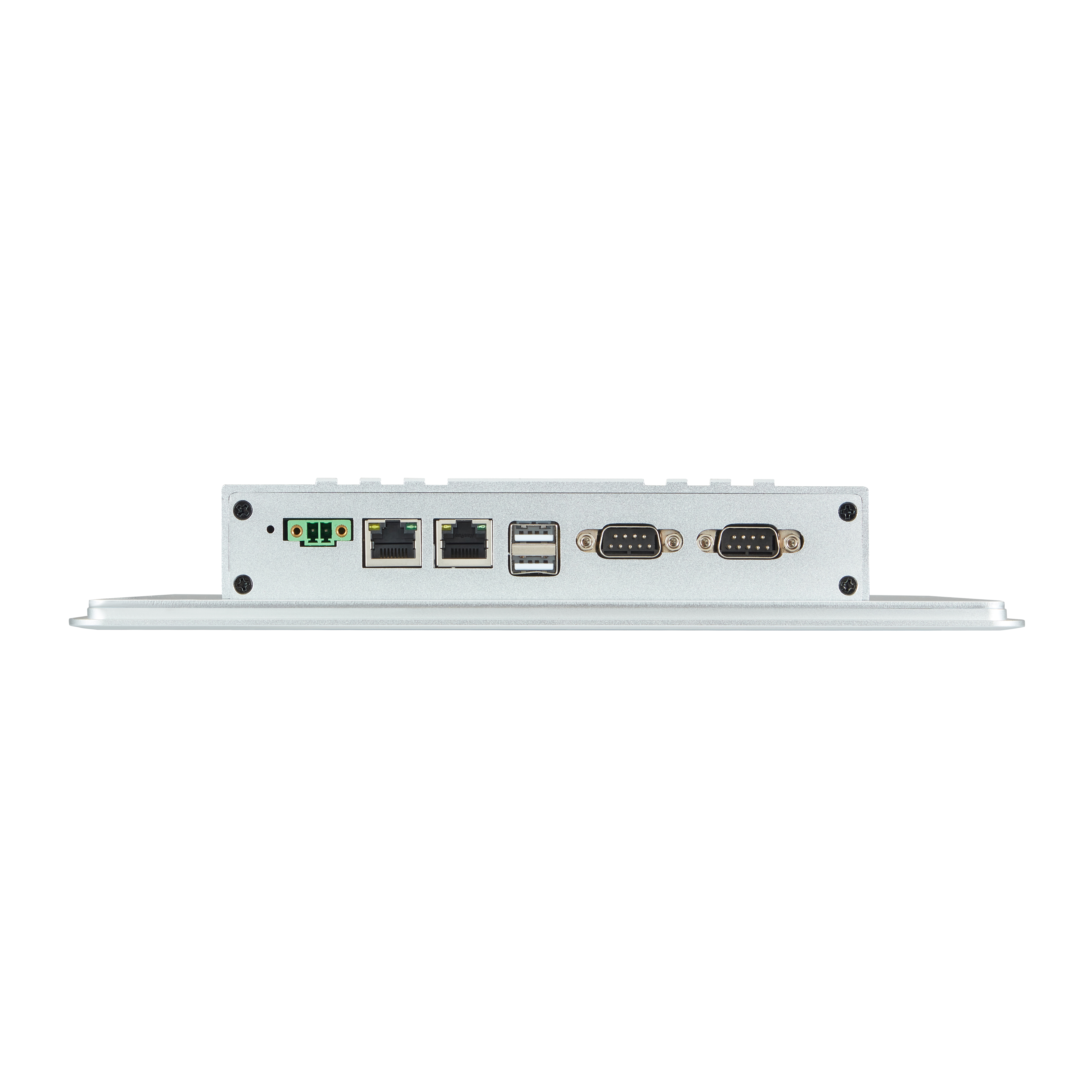

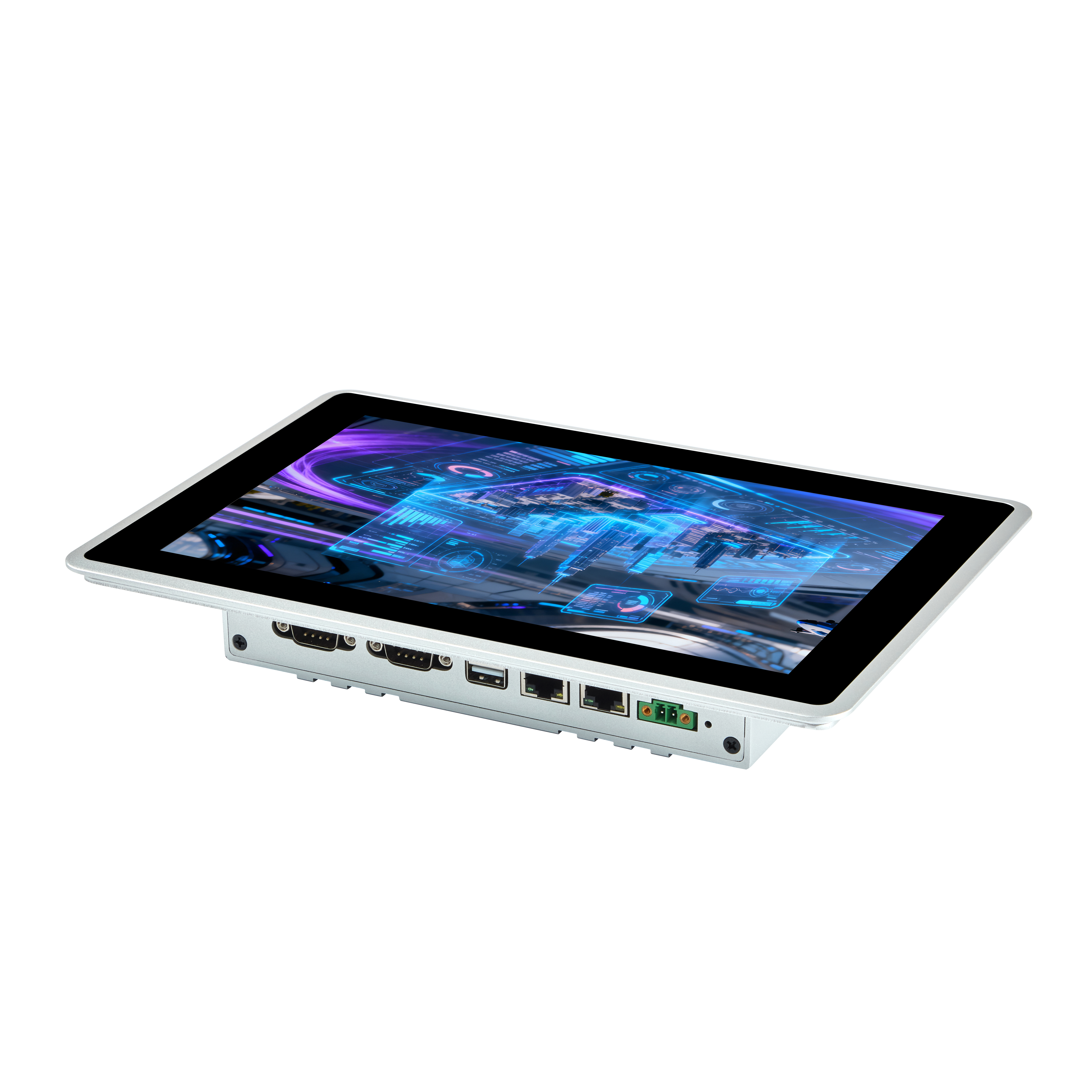

• Rich peripheral interfaces: Dual Ethernet, Dual USB, HDMI, Type-C debug port

🔹 Industrial-Grade Reliability

• Passed rigorous EMC, high/low temperature, vibration, and drop tests

• Features reverse polarity protection, watchdog timer, and chassis grounding for enhanced safety

Hardware Specifications

Software Ecosystem

• Operating Systems: Linux, Ubuntu 20.04, Android 13, Buildroot, Yocto

• Development Tools: Qt 5.15.10, Python, Docker, Node-RED, C#

• Protocol Conversion: BLIoTLink (supports Modbus, OPC UA, MQTT, BACnet, IEC104, etc.)

• Remote Maintenance: BLRAT

• AI Support: NPU supports TensorFlow, PyTorch, Caffe, MXNet

• Development Cases: Inter-core communication, EtherCAT master, ROS demos, image processing, 4G/WiFi/BT development, etc.

Product Selection Guide

The TPC371 series features a modular design, allowing users to select different SoMs, X-boards, Y-boards, operating systems, and screen types based on application needs.

Naming Rule Example:

TPC371-A7-SOM370-X0-Y02-Y01-U-R-L
Meaning: RK3562J, 10.1" screen, includes X-board + dual Y-boards, 1GB RAM+8GB storage, Ubuntu OS, Resistive touch, 4G module.

TPC371 Series A Selection Table

You can select the appropriate feature configuration based on the needs of your work environment.

TPC371 Series SOM Selection Table

You can select the appropriate ROM, RAM, and temperature rating according to your needs.。

X-Series IO Board Selection Table

You can choose the appropriate X-series I/O board as needed. The number of pins on the X-series I/O board must be compatible with the case.

Y-series IO board selection table

You can select the appropriate Y-series IO board according to your needs. The Y-series IO modules are suitable for all Y slots.

Certifications & Testing

• Electromagnetic Compatibility: Compliant with GB/T 9254, CISPR 32, IEC 61000-4 series standards, Class A

• Environmental Adaptability: Passed high/low temperature, humidity, vibration, drop, and protection rating tests

• Ingress Protection: Front panel IP66, whole device IP30

Technical Support & Services

• Complete development kit provided (BSP, kernel source code, system images)

• Rich development examples (Qt, NPU, EtherCAT, containers, protocol conversion, etc.)

• Supports secondary development and custom production

• Long-term after-sales service and technical consultation
