Computer Numerical Control (CNC) machines are the backbone of modern precision manufacturing industries such as automotive, aerospace, electronics, and mold production. While CNC systems offer high accuracy and automation, they often operate as data islands, with limited connectivity and interoperability across different machine vendors and protocols.
To address this challenge, the ARM-based Edge Gateway provides a reliable and cost-effective solution for connecting CNC machines, integrating multiple communication standards, performing edge analytics, and securely transmitting data to higher-level systems such as MES, SCADA, and cloud platforms.

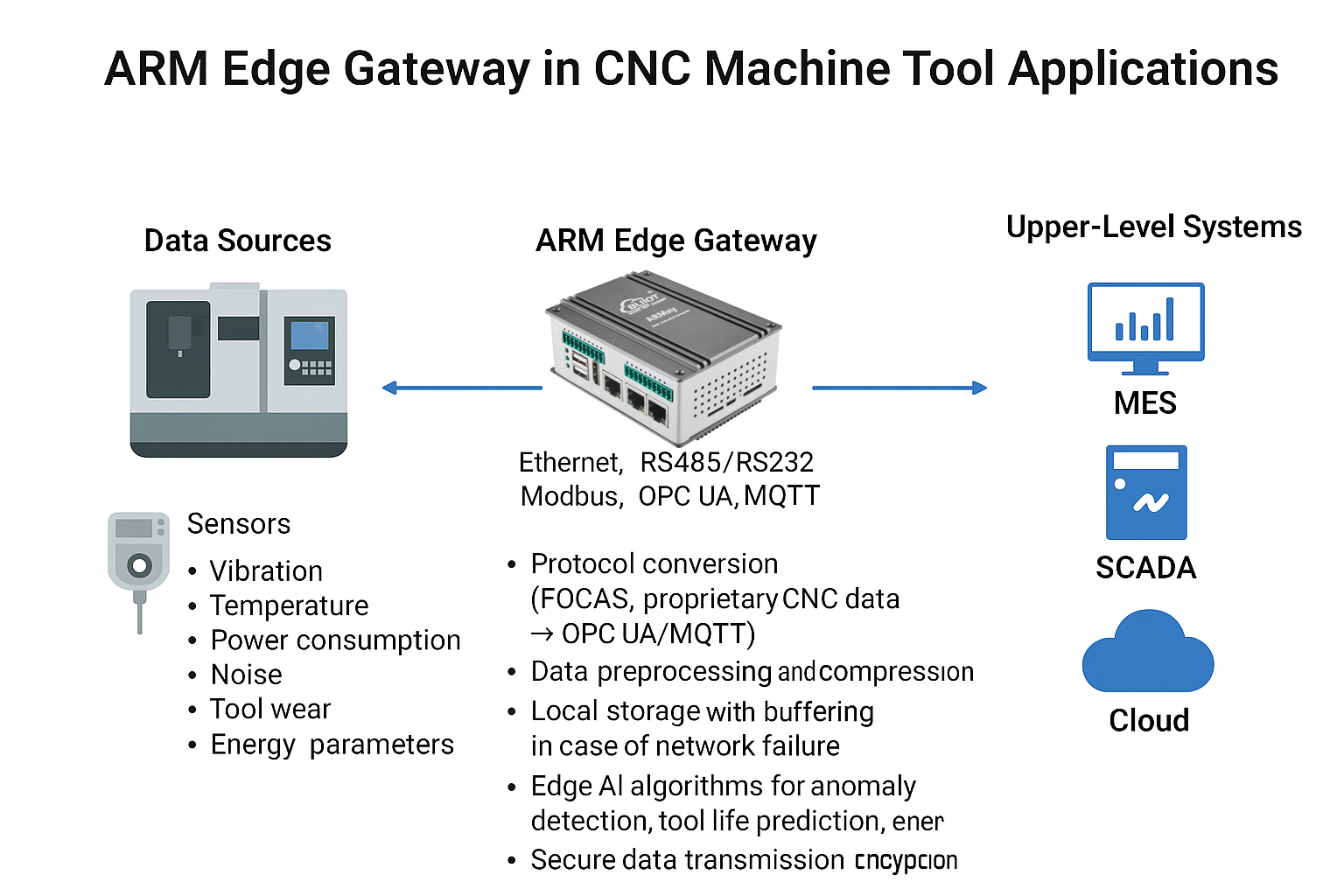

Data Sources (CNC & Sensors)
CNC controllers (FANUC, Siemens, Mitsubishi, Heidenhain, etc.) provide spindle speed, feed rate, axis position, alarm codes, and machining program data.
External sensors (vibration, temperature, power consumption, noise, tool wear) extend monitoring capabilities beyond the built-in CNC controller.
Interfaces: Ethernet, RS485/RS232, Modbus, OPC UA, MTConnect.
Functions:
Protocol conversion (FOCAS, proprietary CNC data → OPC UA/MQTT)
Data preprocessing and compression
Local storage with buffering in case of network failure
Edge AI algorithms for anomaly detection, tool life prediction, and energy analysis
Secure data transmission with encryption (TLS/SSL, VPN)
Upper-Level Systems
MES (Manufacturing Execution System): production scheduling, job tracking, and OEE monitoring
SCADA: real-time visualization, alarms, and plant-wide monitoring
Cloud / Big Data / AI: predictive maintenance, energy optimization, and enterprise-wide analytics
Multi-Machine Connectivity
Integrates CNC machines from different vendors into a unified monitoring and management platform.
Real-Time Production Monitoring
Tracks spindle speed, feed rate, cutting cycle time, and tool condition for transparent shop-floor management.
Predictive Maintenance
Uses vibration and current analysis to detect spindle or bearing faults before breakdown occurs.
Energy Management
Collects and analyzes power consumption to identify inefficiencies and optimize cutting parameters.
Remote Diagnostics
Enables OEMs and service teams to securely access machine data through VPN/4G/5G for remote troubleshooting.
Protocol Adaptability – Seamlessly bridges heterogeneous CNC systems and industrial protocols.
Real-Time Insights – Local edge analytics reduce reliance on cloud latency.
Data Security – Encrypted communication ensures safe data transmission.
Cost Efficiency – Low power consumption and high integration make ARM platforms cost-effective.
Scalability – Supports sensor expansion and AI model deployment for future smart manufacturing needs.
The adoption of ARM Edge Gateways in CNC machine tools marks a significant step toward smart manufacturing and Industry 4.0. By enabling seamless data connectivity, real-time analytics, and predictive insights, ARM Edge Gateways transform CNC machines from isolated production units into intelligent, connected assets. This not only improves equipment utilization and reduces downtime but also lays the foundation for digitalized and data-driven manufacturing.
