As video surveillance continues to scale, traditional CCTV systems can no longer satisfy modern requirements for real-time intelligence, proactive alerts, and privacy protection. Manual monitoring is inefficient, while cloud-based processing brings high costs, high latency, and potential data privacy risks.
To address these challenges, ARM-based Edge AI Gateways have become the core of next-generation security systems. By performing on-site video analytics and generating actionable insights, they significantly enhance the intelligence and efficiency of any surveillance infrastructure.
This article explains the value, architecture, and real-world applications of ARM Edge AI gateways in CCTV-driven security systems.
Deployed between IP cameras and the security management platform, the ARM Edge AI Gateway performs real-time AI analysis directly on incoming video streams. Its key contributions include:
The gateway receives RTSP/ONVIF video directly from cameras and performs on-device inference using deep-learning models. It can detect:
People, vehicles, and object categories
Intrusion, loitering, and crossing-line events
Suspicious or abnormal behavior (running, fighting, nighttime movement)
Video occlusion, scene changes, or camera tampering
Local inference ensures millisecond-level response without relying on the cloud.
By analyzing motion patterns, dwell time, behavior changes, and movement speed, the gateway assigns an anomaly score for potential threats, such as:
People appearing at late hours
Loitering near restricted areas
Sudden running or aggressive actions
Unidentified objects or abnormal scene changes
Automatic scoring enables precise and timely alerts.
Instead of sending entire videos to the cloud, the gateway uploads only structured data:
Event type
Time and location
Snapshot images
Target ID or track ID
Risk score
This keeps video data local and satisfies strict privacy requirements in campuses and offices.
Unlike x86 GPU servers consuming 100W+, ARM Edge AI gateways typically require only 10–30W, enabling stable 24/7 operation across dozens or hundreds of units.

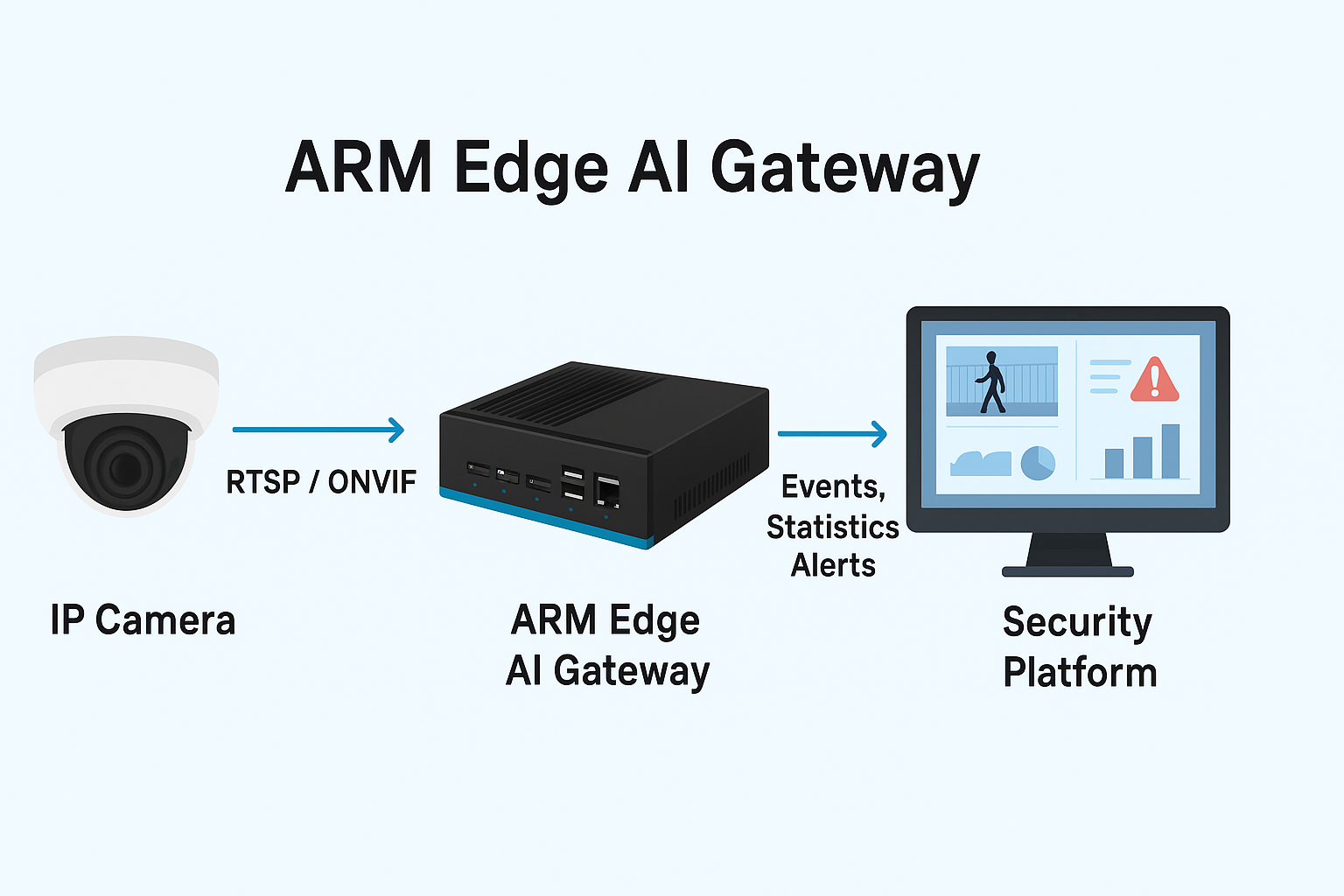

A typical “ARM Edge AI Gateway + CCTV + Security Platform” architecture includes:
IP Cameras
Capture video and provide RTSP/ONVIF streams.
ARM Edge AI Gateway (Edge Inference)
Video ingestion
On-device AI inference (NPU/CPU/GPU)
Object detection and behavior analysis
Anomaly scoring
Event generation and local buffer
Structured data output via MQTT/HTTP/WebSocket
Security/VMS Platform
Displays alerts
Provides dashboards and playback
Generates reports
Enables operator workflows
Cloud/Server (Optional)
For long-term storage, cross-site monitoring, and centralized data analysis.
The gateway acts as the intelligent engine powering all real-time security insights.
Entrance and perimeter intrusion detection
Nighttime activity monitoring in dormitories, classrooms, and playgrounds
Crowd density alerts
Fighting, running, and abnormal behavior detection
Enhances safety and reduces reliance on manual monitoring.
Access-restricted area monitoring
Loitering or unusual movement detection
Elevator hall and corridor behavior analytics
Smart patrol assistance
Suitable for modern IoT-enabled buildings.
Fence climbing and boundary intrusion detection
Nighttime perimeter monitoring
Suspicious vehicle detection
Long-range outdoor surveillance
Ideal for warehouses, factories, plant areas, and logistics parks.
Vehicle detection and flow analysis
Illegal parking or blockage alerts
License plate analytics (when integrated with LPR models)
Improves site traffic management efficiency.
Powered by SoCs such as RK3562 BL370 series, RK3576 BL440 series, and RK3588 BL450 series, the gateway supports:
YOLO-based object detection
Person Re-ID
Motion and behavior recognition
Multi-channel video concurrent analysis
Suitable for 720p, 1080p, and even 4K video streams.
Designed for 24/7 operation
Wide temperature support
Anti-interference hardware
Industrial interfaces (RS485, DI/DO, CAN, multiple Ethernet ports)
Supports integration with access control systems, alarms, and warning lights.
Private/on-premise deployment
Edge + cloud hybrid models
Docker and Linux support
Easy AI model replacement
Developers can customize the system according to project needs.
Compared with GPU servers, ARM Edge AI Gateways offer:
Lower acquisition and operating cost
Minimal power requirements
Compact size
Reduced cooling and maintenance needs
Perfect for distributed large-area surveillance systems.
ARM Edge AI Gateways bring real intelligence to traditional CCTV systems, transforming them from passive monitoring tools into active security agents. With real-time analytics, privacy protection, industrial reliability, and low power consumption, they have become essential components for modern smart security in campuses, office buildings, industrial parks, and perimeter environments.
They turn every camera into a smart sentinel—delivering faster, safer, and more intelligent security for every environment.
