ARM AI edge controllers in tomato greenhouses serves as a paradigm for agricultural intelligence and a successful case of edge computing and AI deployment in vertical industries.
Case Details
Amid the wave of intelligent transformation in modern agriculture, greenhouse cultivation is increasingly integrating edge computing and artificial intelligence technologies to achieve more efficient and precise environmental control. This article focuses on the application of ARM-based AI edge controllers in automatic lighting control for tomato greenhouses, highlighting their value in enhancing crop yields, energy savings, emission reductions, and intelligent management.
Application Background and Challenges
Tomatoes, as a high-light-demand crop, are highly sensitive to light intensity and duration throughout their growth cycle. Traditional greenhouses rely on manual or timed supplemental lighting systems, which face the following issues:
- Delayed Lighting Adjustment: Inability to respond in real-time to weather changes, hindering crop growth.
- High Energy Consumption: Low lighting efficiency leading to severe energy waste.
- Inadequate Strategy Optimization: Lack of data-driven approaches, preventing dynamic adjustments based on tomato growth stages.

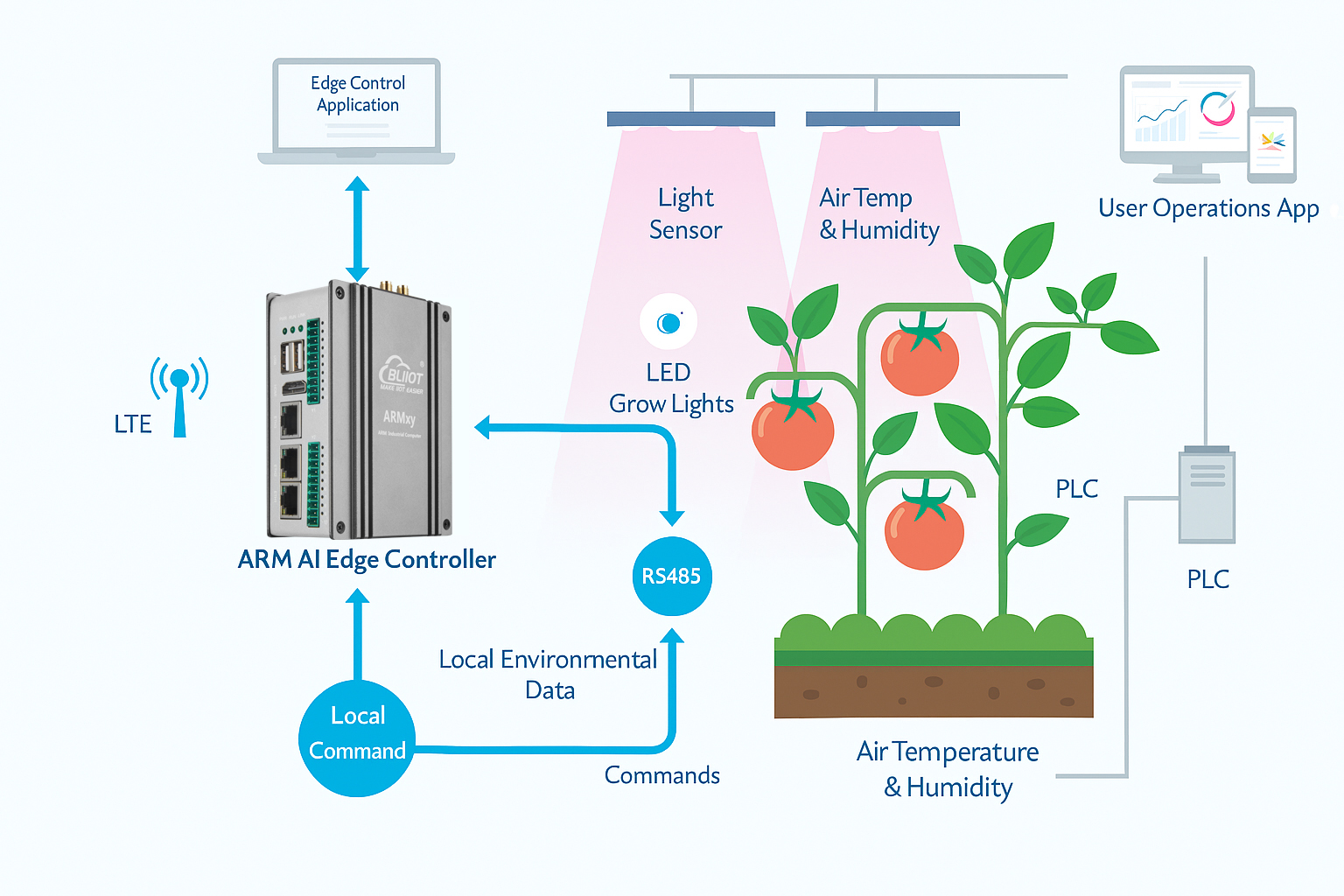

System Architecture and Core Components
Edge Controller Configuration
| Module |
Description |
| Processor |
ARM RK3562 Cortex-A53 BL370 Series |
| Interfaces |
RS485, Ethernet, Wi-Fi, 4G, for connecting sensors and actuators |
| Software Platform |
Linux + ThingsBoard Edge, with rule engine and visualization interface |
| Environmental Adaptability |
Industrial-grade wide-temperature design, suitable for high-humidity and high-temperature greenhouse environments |
Sensors and Actuators
- Light Sensor: Real-time monitoring of natural light intensity.
- Temperature/Humidity/CO₂ Sensor: Assists in assessing plant physiological status.
- LED Supplemental Lights: Adjustable spectrum and intensity for precise lighting.
- PLC or Relay Module: Controls the switching and scheduling of supplemental lights.
AI-Driven Lighting Control Logic
Data Collection and Modeling
- Collect historical lighting data and tomato growth metrics to build correlation models.
- Develop AI predictive models to estimate lighting needs across different time periods.
- Integrate weather forecasts and crop growth stages to dynamically optimize supplemental lighting strategies.
Edge Inference and Control
- The controller executes AI models locally, enabling low-latency responses (<20ms).
- Implements "on-demand lighting": Automatically activates supplemental lights when insufficient and turns them off when adequate.
- Supports remote configuration and local alerts to improve operational efficiency.
Application Outcomes and Value
| Metric |
Improvement Effect |
| Lighting Utilization Rate |
Increased by over 30% |
| Energy Consumption |
Reduced by 20%~40% |
| Tomato Yield |
Increased by 15%~25% |
| Operational Efficiency |
Enables unattended operation and remote management |
Extended Applications and Future Directions
- Camera Integration: Recognize fruit ripeness to support automated harvesting decisions.
- Irrigation Linkage: Intelligently adjust water volume based on lighting and transpiration rates.
- Edge-Cloud Collaboration: Build a unified management architecture for multiple greenhouses.
- Federated Learning: Enhance AI model generalization while protecting data privacy.
Conclusion
The application of ARM AI edge controllers in tomato greenhouses serves as a paradigm for agricultural intelligence and a successful case of edge computing and AI deployment in vertical industries. Looking ahead, with ongoing improvements in AI model accuracy and hardware performance, these controllers will play a pivotal role in more crops and scenarios, propelling agriculture toward precision, efficiency, and sustainability.
