ThingsBoard IoT Gateway: Open Source OT and IT Integration Solutions

ThingsBoard IoT Gateway is an open-source gateway solution provided by the ThingsBoard IoT platform. It is designed to bridge local networks of diverse protocols and devices to the ThingsBoard cloud or privately deployed IoT platforms. Its core role is to address protocol conversion, data collection, and edge computing needs between devices and the platform, particularly suited for heterogeneous device environments or edge network scenarios.

Core Features

• Multi-Protocol Support

  MQTT connector to control, configure and collect data from IoT devices that are connected to external MQTT brokers using existing protocols.

  OPC-UA connector to collect data from IoT devices that are connected to OPC-UA servers.
  Modbus connector to collect data from IoT devices that are connected through Modbus protocol.
  BLE connector to collect data from IoT devices that are connected using Bluetooth Low Energy.
  Request connector to collect data from IoT devices that have HTTP(S) API endpoints.
  CAN connector to collect data from IoT devices that are connected through CAN protocol.
  BACnet connector to collect data from IoT devices that are connected through BACnet protocol.
  ODBC connector to collect data from ODBC databases.
  REST connector to create endpoints and collect data from incoming HTTP requests.
  SNMP connector to collect data from SNMP managers.
  FTP connector to collect data from FTP server.
  Socket connector to collect data from IoT devices that are connected through TCP/UDP protocol.
  XMPP connector to collect data from IoT devices that are connected through XMPP protocol.
  OCPP connector to communicate between Charge Point and Central System.
  KNX connector to collect data from IoT devices that are connected through KNX protocol.
  Custom connector to collect data from IoT devices that are connected by different protocols. (You can create your own connector for the required protocol).
  Persistence of collected data to guarantee data delivery in case of network or hardware failures.
  Automatic reconnect to the ThingsBoard cluster.
  Simple yet powerful mapping of incoming data and messages to unified format.

• Data Transformation & Forwarding

  • Converts diverse protocol data into ThingsBoard-compatible JSON format for cloud upload.

  • Preprocesses data (filtering, aggregation, format conversion like hex-to-float) to reduce cloud workload.

• Edge Computing Capabilities

  • Executes local rules (e.g., threshold alarms, data cleansing) to minimize network dependency.

  • Caches data during offline periods and auto-syncs upon reconnection.

• Security

  • Enforces TLS/SSL encryption, device authentication (tokens/certificates), and access control.

  • Local data processing mitigates exposure of sensitive information.

• Lightweight & Flexible Deployment

  • Runs on edge devices (Raspberry Pi, industrial PCs) and supports Docker containers.

  • Configurable via YAML or UI for seamless integration into existing infrastructure.

Use Cases

• Industrial IoT (IIoT): Connect PLCs (via Modbus/OPC-UA) to monitor production lines in real time.

• Smart Home: Integrate Zigbee/BLE devices (sensors, lights) into a unified platform.

• Smart Agriculture: Collect field sensor data via LoRaWAN gateways with local processing.

• Legacy Device Retrofit: Modernize RS-485/232 devices without hardware replacement.

Architectural Advantages

• Modular Design: Extensible via plugins for new protocols or custom logic.

• Native Integration with ThingsBoard: Leverage the platform’s device management, dashboards, rule engine, and alarms.

• Open-Source Community: Active updates and troubleshooting support reduce adoption costs.

Quick Start Example

1. Install: Use pip install thingsboard-gateway or deploy via Docker.

2. Configure: Edit config.yaml to define device connections (e.g., Modbus slave addresses, register mappings).

3. Run: Launch the gateway—data syncs automatically to ThingsBoard for real-time dashboard monitoring.

In Summary: The ThingsBoard IoT Gateway acts as a bridge between heterogeneous devices and IoT platforms. By enabling protocol translation, edge computing, and secure data transfer, it offers a low-cost solution for device-to-cloud integration, applicable across industrial, consumer, and legacy IoT scenarios.

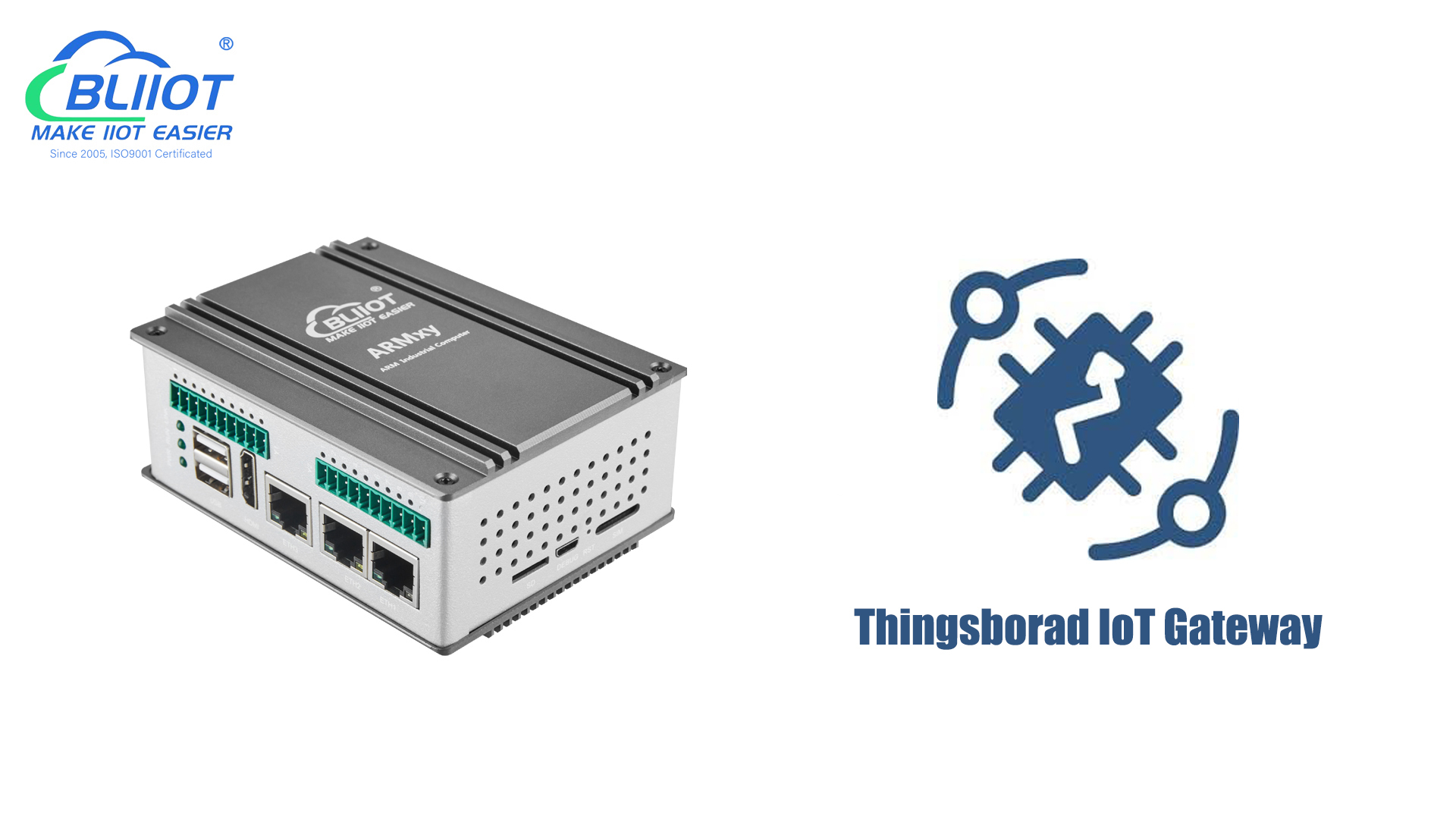

ThingsBoard IoT Gateway performs well on ARMxy Based SBC embedded controllers, and is particularly suitable for scenarios that require local protocol conversion, edge computing, and low-cost deployment. Through reasonable configuration and hardware selection, efficient IoT edge nodes can be built for industrial automation, industrial IoT, building automation, smart energy, etc.

Hardware Recommend: ARMxy SBC Series BL340, BL360, BL370, BL410, BL450, BL440,
