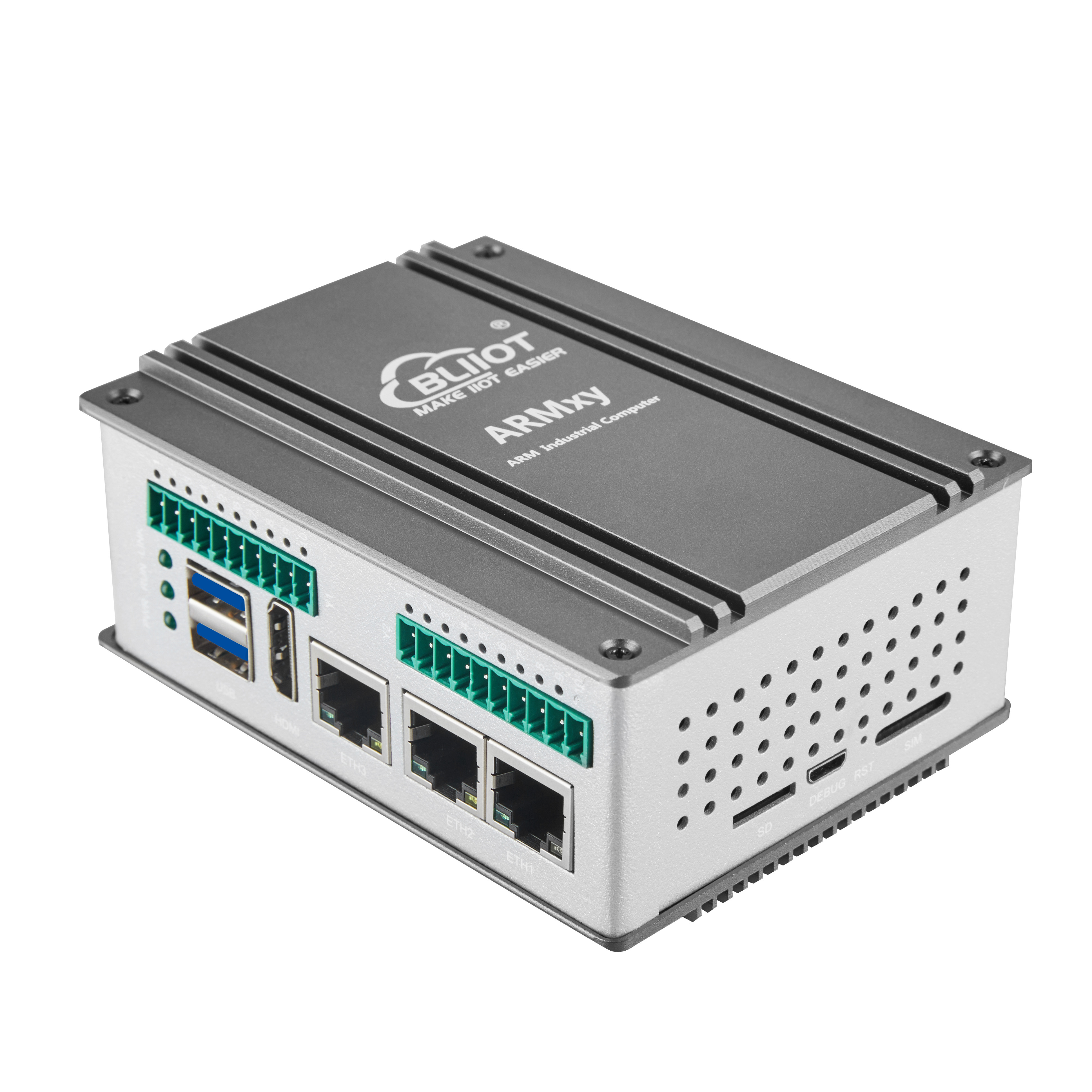

The ARM Based SBC BL440 series is an industrial-grade ARM embedded computer based on the Rockchip RK3576J/RK3576 processor, offering powerful computing capabilities and rich interface configurations. This series features a quad-core ARM Cortex-A72 + quad-core ARM Cortex-A53 + single-core ARM Cortex-M0 architecture, with a maximum clock speed of 2.1GHz/2.2GHz. It is equipped with 16/32/64GB eMMC storage and 2/4/8GB LPDDR4X memory, supporting multiple storage combinations. With a built-in 6TOPS NPU optimized for deep learning, it is widely used in industrial control, edge computing, AIoT, artificial intelligence, communication management, AGV robots, machine vision, industrial IoT gateways, energy storage systems, automation control, and rail transportation.

Main Features

Rich Interface Configurations:

• 1~3 optional RJ-45 ports (2x10/100/1000M + 1x10/100M adaptive)

• 2x USB 3.2 interfaces

• 1 optional HDMI 2.1 interface

• 1 optional X-series IO board

• 2 optional Y-series IO boards

• Supports 4K@60fps H.264 video encoding and 8K@30fps H.265 video decoding

• Built-in Mini PCIE interface, supporting Bluetooth, WiFi, 4G, and 5G module communication

Powerful Software Support:

• Operating Systems: Linux-6.1.75, Linux-RT-6.1.75, Ubuntu 22.04, Debian 11, Android 13

• Development Tools: Docker containers, Node-Red, Qt-5.15.11 graphical interface development tools

• Industrial Protocol Conversion: BLIoTLink software, enabling quick integration with mainstream IoT cloud platforms and industrial SCADA software

• Remote Maintenance: BLRAT remote access tool for remote access and maintenance

• IoT Applications: Node-Red for rapid development

Exceptional Industrial-Grade Reliability:
The ARM Based SBC BL440 series has undergone professional electrical performance design and high/low-temperature testing, ensuring stable operation in extreme environments ranging from -40°C to 85°C. It also features electromagnetic interference resistance. With DIN35 rail mounting, it is suitable for various harsh industrial environments.

With its high performance, flexible configuration, and powerful expansion capabilities, the BL440 series is an ideal choice for industrial automation, IoT, and artificial intelligence applications.

Product Selection Guide

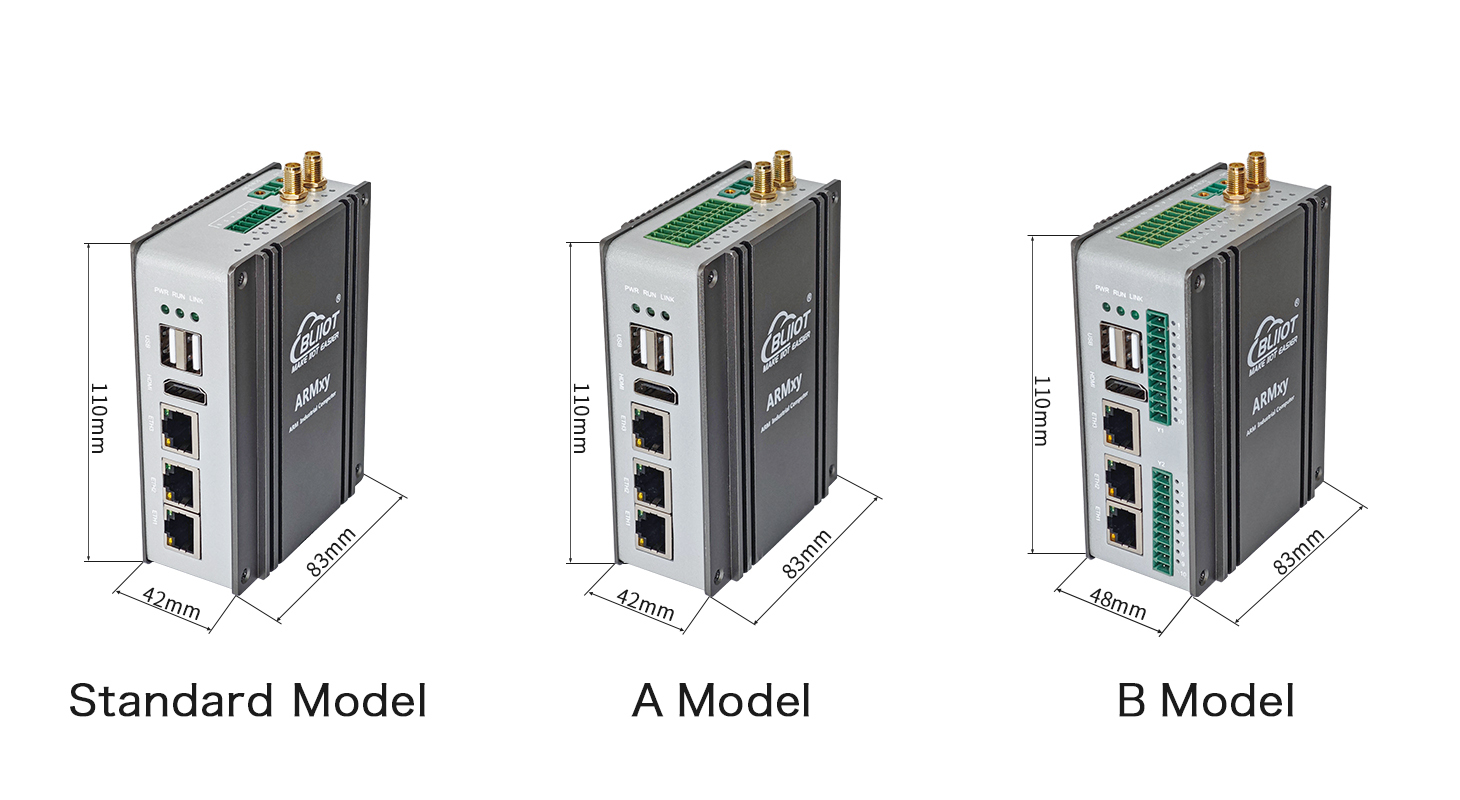

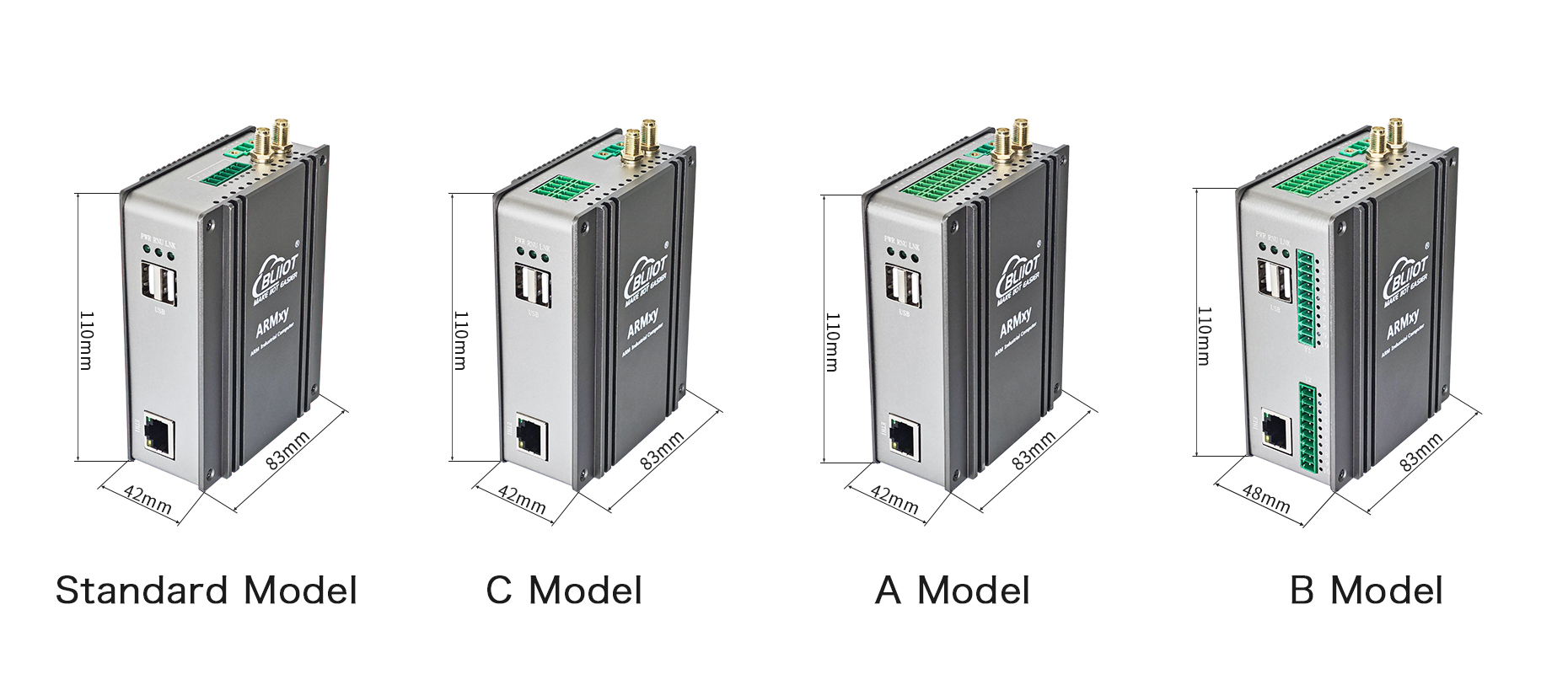

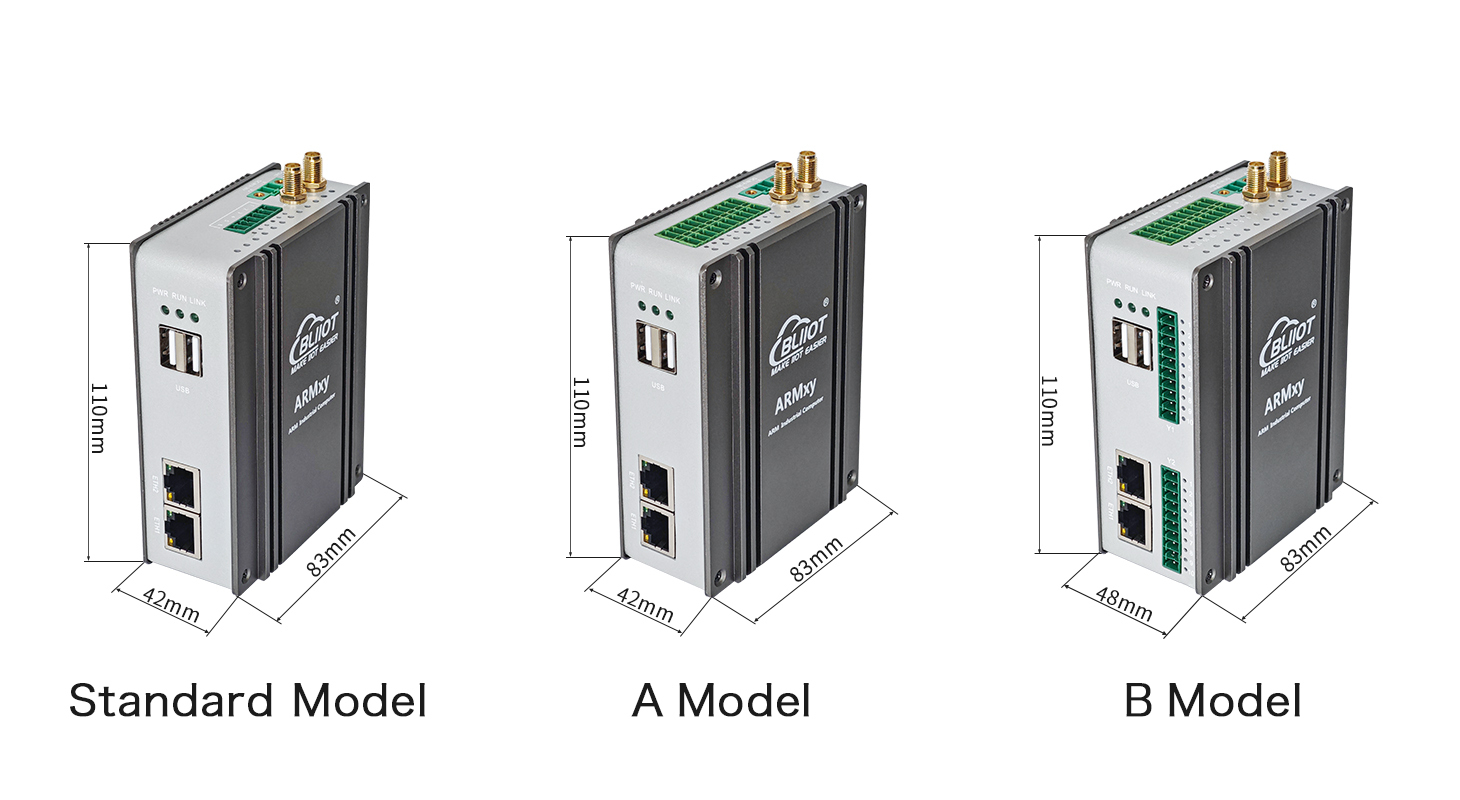

The ARM Based SBC ARMxy series ARM embedded controller adopts a flexible design concept, which can flexibly select different SOM boards to achieve different ROM and RAM combinations, and use different X boards and Y boards to achieve rich IO combinations to meet the needs of various application scenarios.

The product naming rules are as follows:

Host model-SOM model-X board model-Y1 board model-Y2 board model

For example:

BL440-SOM440-X10

Indicates 1 Ethernet port, eMMC is 16GByte，LPDDR4X is 2GByte, 2 RS485.

If you need to add WIFI, add W after the main model, such as BL440W-SOM440-X10;

If you need to add a 4G module, add L after the main model, such as BL440L-SOM440-X10.

ARMxy Model List:

Y Series IO Board Selection Table
You can choose the appropriate Y series IO board according to your requirements. The Y series IO modules are compatible with all Y slots.

Comaptible EMC EMI Standards

Below is a summary of the Electromagnetic Compatibility (EMC) test results for the BL440 Series ARM Edge AI Box Computer, including detailed information on electromagnetic emissions and immunity tests:

1. Electromagnetic Emissions Tests

2. Immunity Tests

Environmental Adaptability Testing

Below is a summary of the environmental adaptability tests conducted on the BL440 series ARM Edge AI Box Computer, ensuring their reliability and performance in various industrial conditions:

Shipping Packaging

• One ARM embedded controller

• One set of DIN35 mounting bracket

• Pre-installed BLIoTLink software

• Pre-installed BLRAT software

• Ubuntu file system

• Crimp-free terminals configured according to selected accessories

• When WIFI or 4G modules are purchased, WIFI and 4G 5G module antennas will be included.



 Technical Support & Services

We offer comprehensive technical support and services to ensure a smooth development and deployment experience for our products. Below are the key services provided:

1. Development Resources

• System Images & Source Code:

  • Provide system firmware images, file system images, kernel driver source code, and a variety of demo programs.

• Platform Development Kit:

  • Offer a complete platform development package and beginner tutorials to save software integration time and simplify application development.

2. Rich Development Cases

We provide a wide range of development cases to make application development easier and more efficient. These include:

• Linux & Linux-RT: Application development cases.

• Qt: GUI application development cases.

• BLIoTLink: Industrial protocol collection and cloud platform integration cases.

• BLRAT: Remote access and usage cases.

• Node-Red: IoT application development cases.

• Docker & MQTT: Container technology and communication protocol cases.

• AMP Development: Cases based on Linux + RT-Thread/Baremetal for asymmetric multiprocessing.

• NPU Development: Neural Processing Unit development cases.

• IgH EtherCAT & CAN: EtherCAT master station and CAN development cases.

• 4G/WiFi/Bluetooth: Communication module development cases.

• HDMI Multimedia Display: Multimedia display development cases.

3. Custom Development & Production

• Assist with product secondary development to meet specific requirements.

• Provide custom R&D and production services tailored to your needs.

4. Long-Term After-Sales Support

• Offer long-term after-sales services to ensure the continued performance and reliability of your products.

Our goal is to provide end-to-end support, from development to deployment, ensuring your success with our products.
