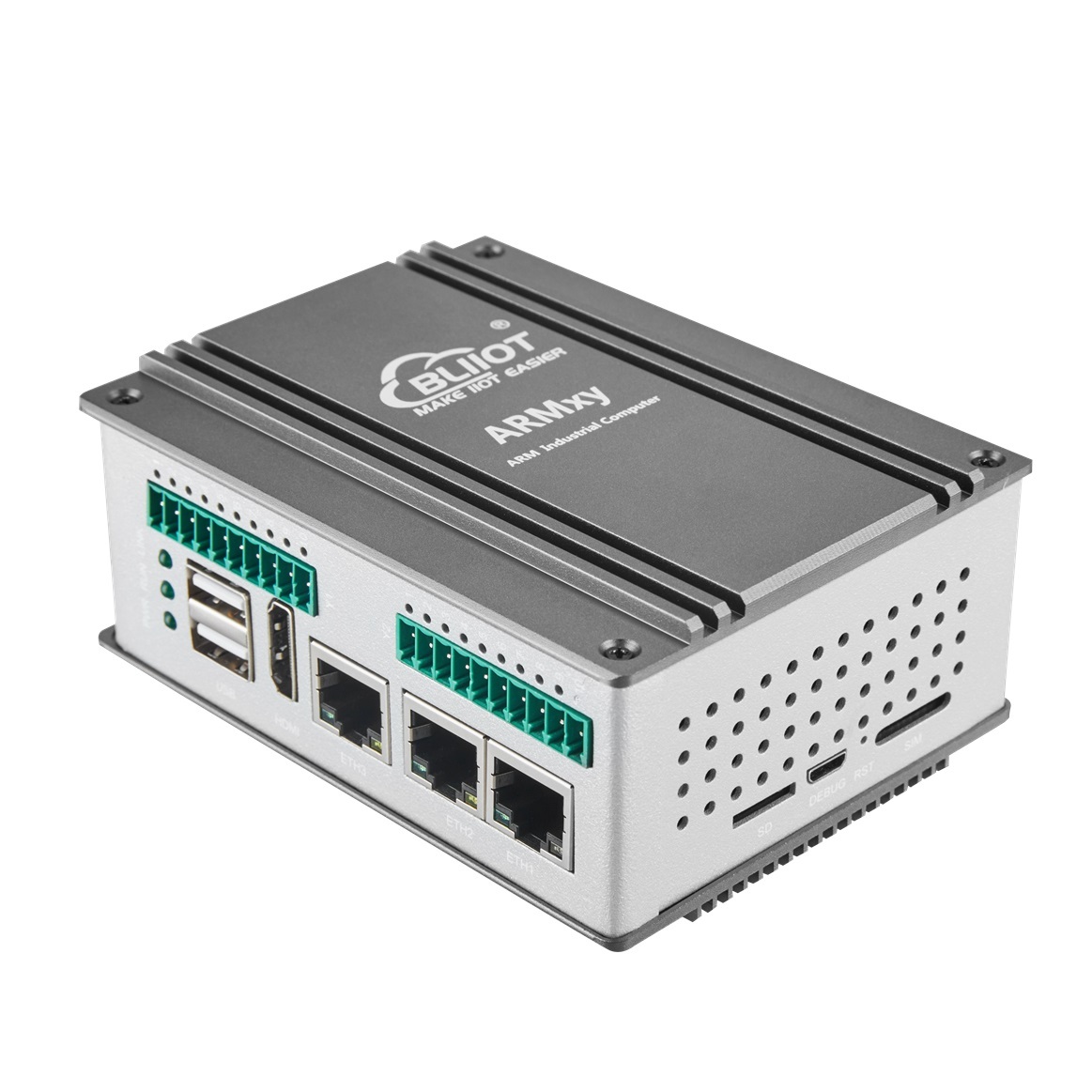

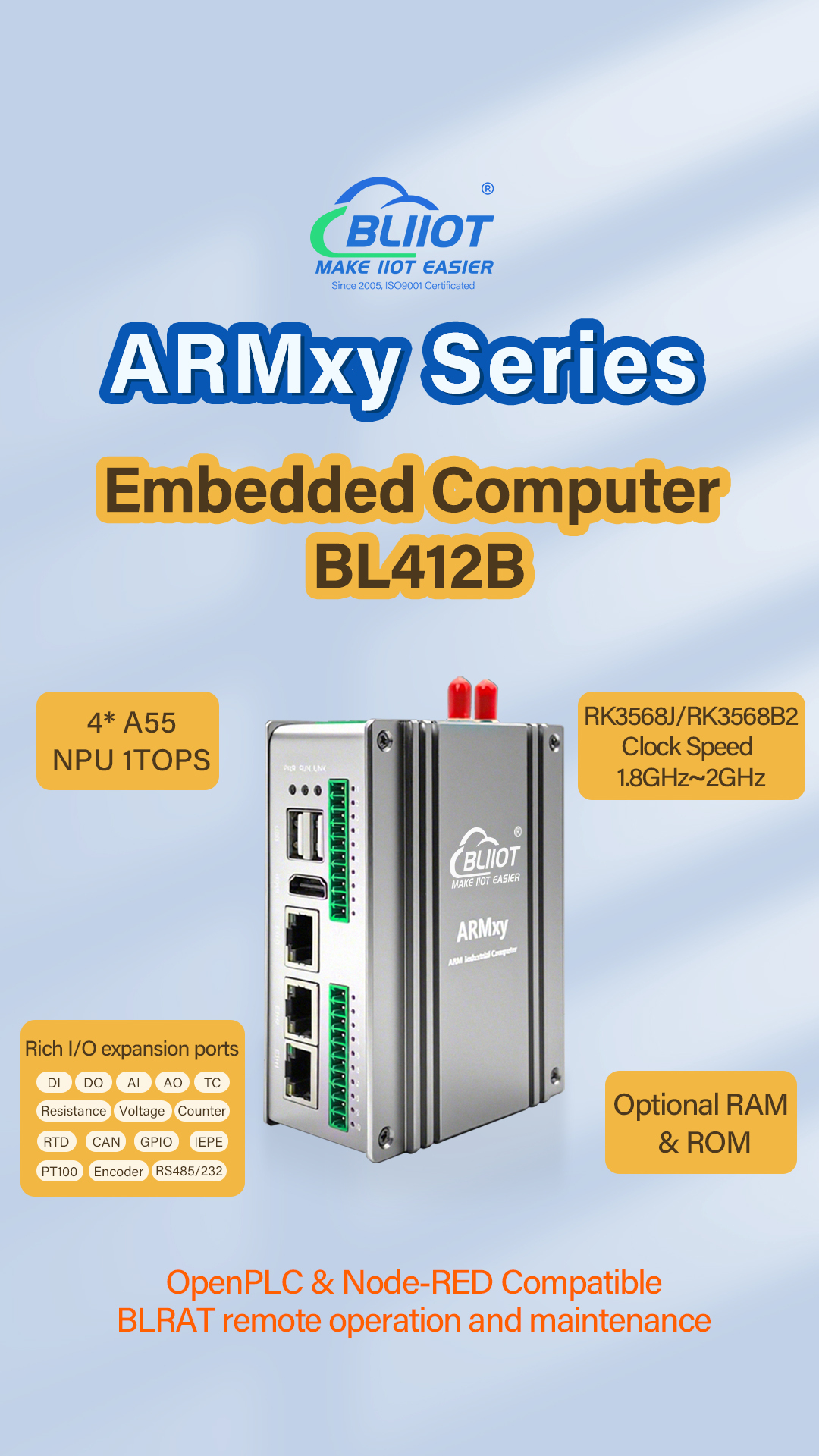

The BL410 series is an industrial-grade ARM embedded computer from the ARMxy series, featuring highly flexible SoM and IO port configuration capabilities. Designed based on the Rockchip RK3568J/RK3568B2 processor, it adopts a quad-core ARM Cortex-A55 architecture with a main frequency of up to 1.8GHz/2.0GHz. It is equipped with 8/16/32GB eMMC storage and 1/2/4GB LPDDR4X memory, supporting multiple storage combinations. With a built-in 1TOPS NPU for deep learning support, it is suitable for applications such as smart gateways, energy storage system EMS/BMS, motion control, edge computing, industrial control, and smart terminals.
Powerful Hardware Configuration
Processor: Quad-core ARM Cortex-A55, 1.8GHz/2.0GHz
Storage: 8/16/32GB eMMC, 1/2/4GB LPDDR4X
NPU: Built-in 1TOPS computing power, supporting deep learning
Interfaces: 1~3x optional 100Mbps Ethernet ports, 2x USB 2.0, 1x optional HDMI 2.0, 1x optional X-series IO board, 2x optional Y-series IO boards
Video Support: 1080P@60fps hardware decoding
Communication: Built-in Mini PCIE interface, supporting Bluetooth, WiFi, and 4G modules
Comprehensive Software Support
Operating Systems: Supports Linux-5.1, Linux-RT-4.19.232, Debian-10.13, and Ubuntu20.04.
Development Tools: Supports Docker containers, Node-Red graphical development tools, and Qt-5.15.2 graphical interface
Industrial Protocols: Supports BLIoTLink industrial protocol conversion for quick integration with IoT cloud platforms and SCADA industrial configuration software
Remote Maintenance: Enables remote access and maintenance through the BLRAT tool, improving management efficiency
Industrial-Grade Reliability
Professionally designed for electrical performance and validated through high/low-temperature testing to ensure system stability and reliability
Supports DIN35 rail mounting, suitable for various industrial environments
Typical Application Fields
Industrial Control: Suitable for complex industrial automation scenarios
Edge Computing: Supports real-time data processing and analysis
Motion Control: Precise control of motors and motion equipment
Energy Storage System EMS/BMS: Efficient management of energy storage systems
Photovoltaic Power Generation: Supports monitoring and control of photovoltaic systems
Rail Transit: Applicable for traffic signal control and vehicle monitoring
Smart Devices: Empowers various smart terminal devices
With its powerful hardware performance, rich interface configurations, and flexible software support, the BL410 series provides efficient and reliable solutions for industrial IoT, automation control, edge computing, and other fields.
Below is the hardware specifications in table format:
| Category | Specifications |
|---|---|
| CPU | Rockchip RK3568J/RK3568B2, 22nm |
| 4x ARM Cortex-A55 (64-bit) | |
| RK3568J: Normal mode 1.4GHz, Overdrive mode 1.8GHz | |
| RK3568B2: 2.0GHz | |
| NPU: 1TOPS, supports INT8/INT16/FP16/BFP16 | |
| Compatible with TensorFlow, PyTorch, Caffe, MXNet deep learning frameworks | |
| Encoder: Supports 4K@60fps H.265/H.264 video decoding | |
| Decoder: Supports 1080P@60fps H.265/H.264 video encoding | |
| ROM | 8/16/32GB eMMC |
| RAM | 1/2/4GB LPDDR4X |
| Ethernet | RJ-45 interface, 1~3 ports, 1~3 x10/100Mbps, ESD Level 3, EFT Level 3 |
| USB | 2x USB 2.0 HOST (USB1, USB2), speed up to 480Mbps, ESD Level 3 |
| HDMI | 1x HDMI 2.0, supports 1080P@120fps, 4K@60fps |
| IO Slots | X-series IO board slot: 1x, optional, supports RS485, CAN, RS232, DI, DO, GPIO, etc. |
| Y-series IO board slot: 2x, optional, supports RS485, CAN, RS232, DI, DO, relay output module, AI, AO, PT100, PT1000, thermocouple, etc. | |
| LED | 1x Power indicator |
| 2x User-programmable indicators | |
| Mini PCIE | 1x slot, supports Bluetooth, WiFi, 4G modules, etc. |
| SIM Card Slot | 1x NANO SIM card slot |
| Antenna Ports | 2x ports for 4G/WiFi/GPS, etc. |
| Debug Port | 1x Micro USB debug port |
| SD Card Slot | 1x slot |
| Reset Button | 1x reset button |
| Watchdog | Onboard independent hardware watchdog |
| Power Supply | Rated DC 24V, supports wide voltage range 12-24VDC, features reverse polarity protection and overcurrent protection, 3-pin screw terminal |
| Grounding | 1x grounding connection point |
| Installation | DIN35 rail mounting, wall-mounted installation |
| Material | Aluminum alloy casing + stainless steel |
| Dimensions | 110*83*42mm or 110*83*48mm |
| Category | Specifications |
|---|---|
| Kernel | Linux-5.10, Linux-RT-4.19.232 |
| File System | Buildroot-201802, Debian-10.13, Ubuntu 20.04 |
| Graphical Development | Qt-5.15.2 |
| Protocol Conversion | BLIoTLink: Supports industrial protocol conversion (e.g., Modbus, PLC, BACnet, IEC104, MQTT, OPC UA) |
| Compatible with mainstream cloud platforms: AWS IoT Core, Thingsboard, Ignition SCADA, Alibaba Cloud, Huawei Cloud, etc. | |
| Remote Access Tool | BLRAT: Enables remote device access and maintenance |
| Other Software | Node-Red, Python, Docker, C#, MySQL, SQLite, etc. |
The ARMxy series ARM embedded controller adopts a flexible design concept, which can flexibly select different SOM boards to achieve different ROM and RAM combinations, and use different X boards and Y boards to achieve rich IO combinations to meet the needs of various application scenarios.
The product naming rules are as follows:
Host Model-SOM Model-X Board Model-Y1 Board Model-Y2 Board Model
Examples:
BL410-SOM410-X10
Indicates:
1 Ethernet port
8GB eMMC
1GB LPDDR4X
2 RS485 channels
BL410W-SOM410-X10
Indicates:
Includes WiFi functionality (denoted by "W")
BL410L-SOM410-X10
Indicates:
Includes 4G module functionality (denoted by "L")
This flexible naming and configuration system ensures that the ARMxy series can be tailored to specific application needs, whether for industrial control, IoT, or other embedded applications.
ARMxy BL410 Series Model List:
Below is a table summarizing the key specifications of the ARMxy series ARM embedded controllers:

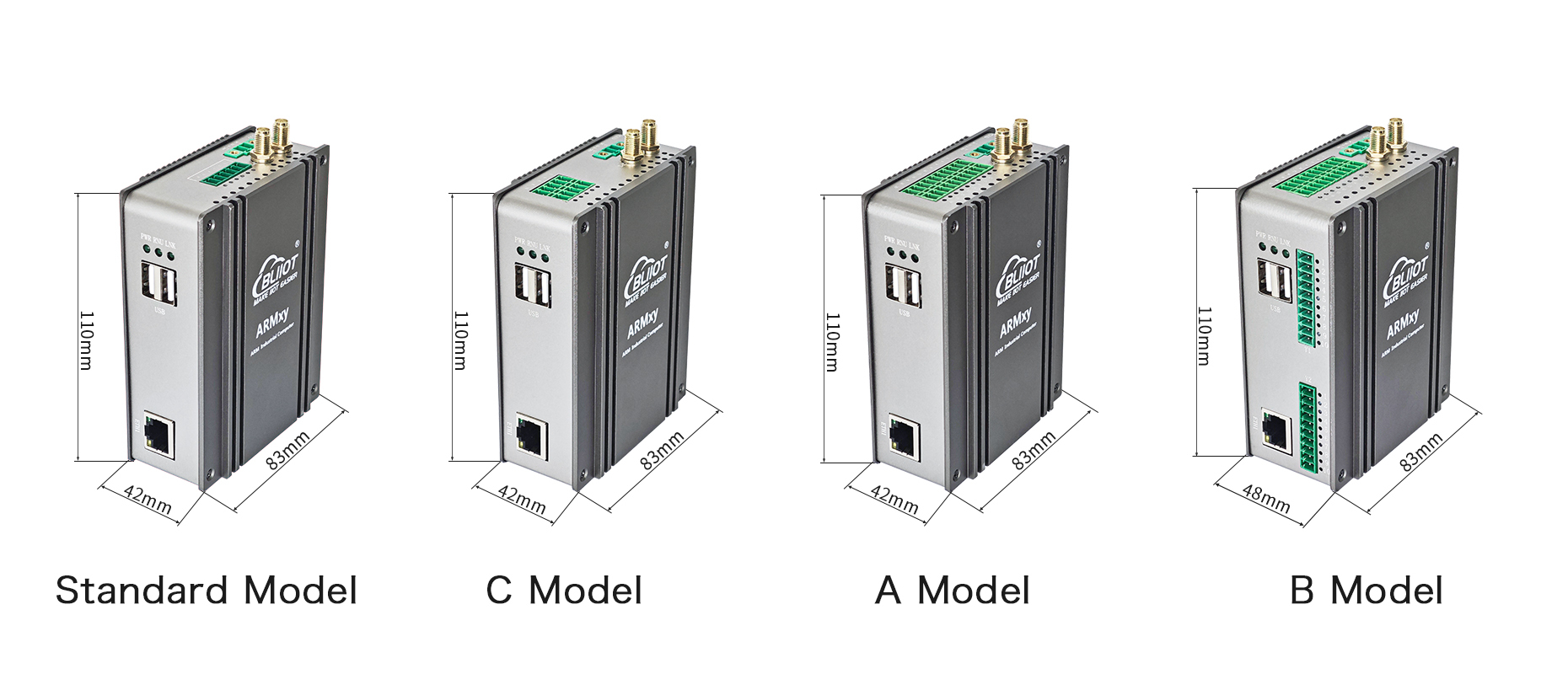

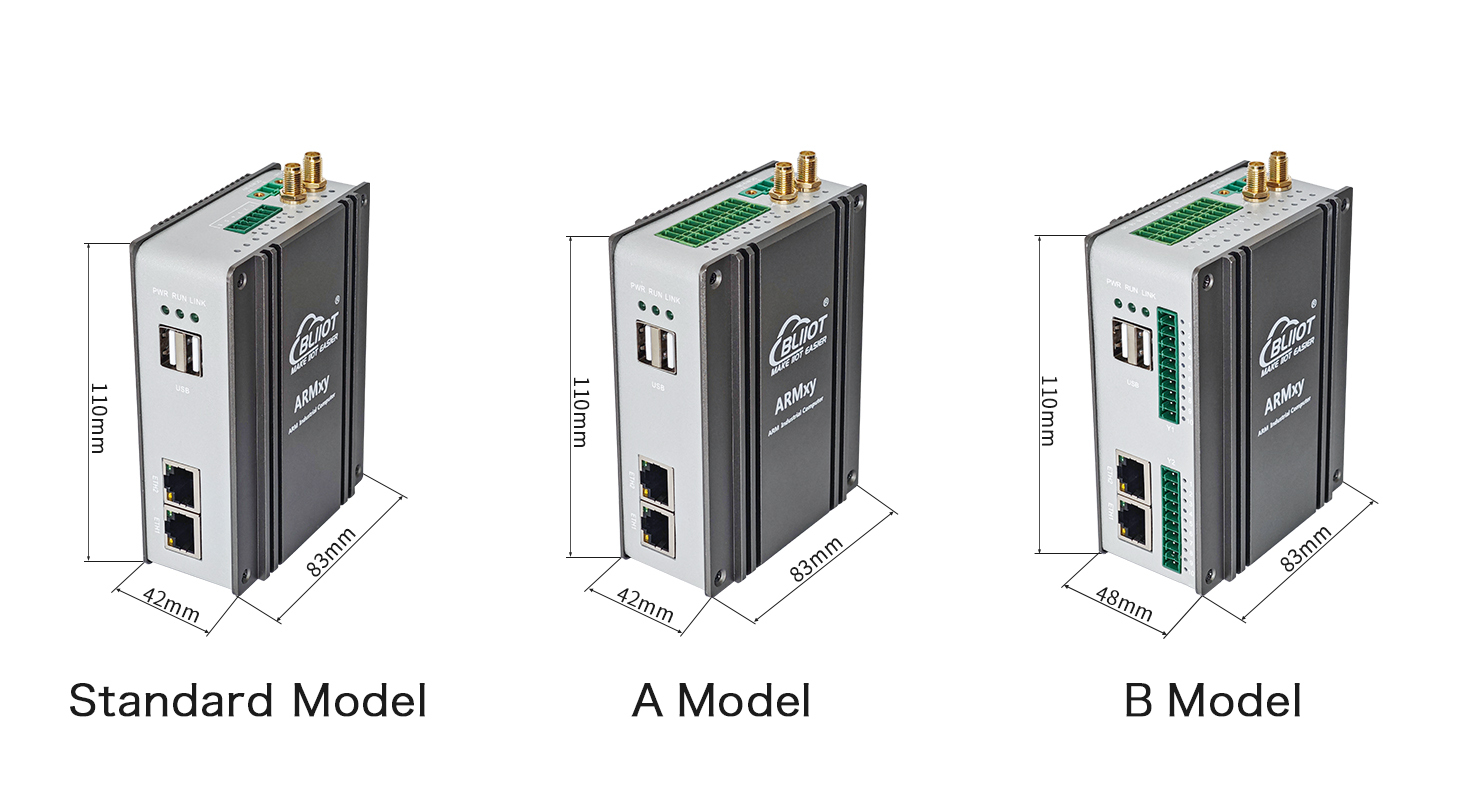

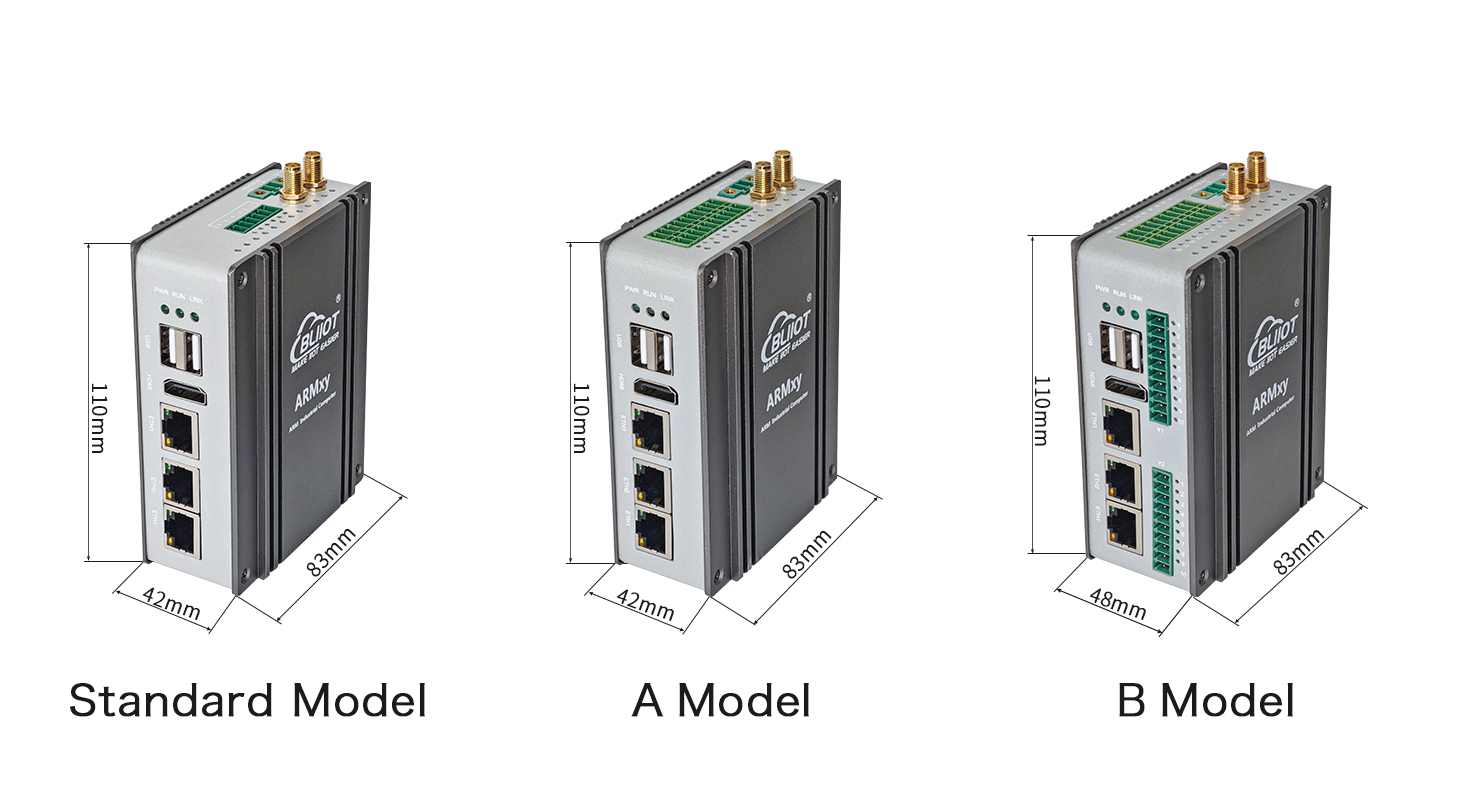

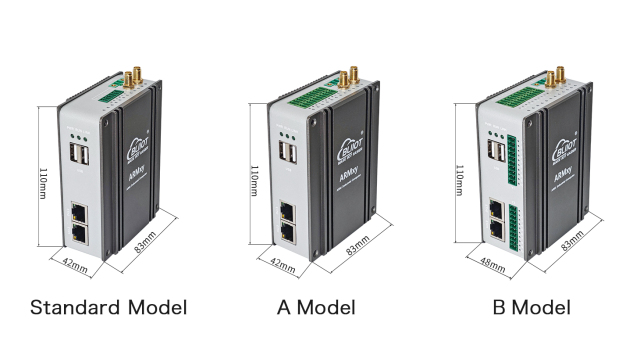

| Model | ETH | USB | HDMI | X Board IO Slot | Y Board IO Slot | Dimensions |
|---|---|---|---|---|---|---|
| BL410 | 1x100Mbps | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL410A | 1x100Mbps | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL410B | 1x100Mbps | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL410C | 1x100Mbps | 2 | X | 1x10PIN | X | 42x83x110mm |
| BL411 | 2x100Mbps | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL411A | 2x100Mbps | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL411B | 2x100Mbps | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL412 | 3x100Mbps | 2 | 1 | 1x6PIN | X | 42x83x110mm |
| BL412A | 3x100Mbps | 2 | 1 | 1x20PIN | X | 42x83x110mm |
| BL412B | 3x100Mbps | 2 | 1 | 1x20PIN | 2 | 48x83x110mm |
The ARMxy BL410 series offers a variety of SOM (System on Module) options to meet different requirements for ROM, RAM, and temperature grades. Below is the selection table:
| Model | MCU | Frequency | Cores | NPU | eMMC | LPDDR4X | Temperature Grade |
|---|---|---|---|---|---|---|---|
| SOM410 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 8GB | 1GB | Industrial Grade: -40~85℃ |
| SOM411 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 16GB | 2GB | Industrial Grade: -40~85℃ |
| SOM412 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 32GB | 4GB | Industrial Grade: -40~85℃ |
| SOM413 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 8GB | 1GB | Commercial Grade: 0~70℃ |
| SOM414 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 16GB | 2GB | Commercial Grade: 0~70℃ |
| SOM415 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 32GB | 4GB | Commercial Grade: 0~70℃ |
| Model | RS232/RS485 | CAN | DI | DO | GPIO | PIN Nubmer |
|---|---|---|---|---|---|---|
| X10 | 2 | x | x | x | x | 6PIN |
| X11 | 1 | 1 | x | x | x | 6PIN |
| X12 | x | 2 | x | x | x | 6PIN |
| X13 | x | x | 2 | 2 | x | 6PIN |
| X14 | x | x | 4 | x | x | 6PIN |
| X15 | x | x | x | 4 | x | 6PIN |
| X16 | x | x | x | x | 4 | 6PIN |
| X20 | 4 | x | x | x | x | 10PIN |
| X21 | 3 | 1 | x | x | x | 10PIN |
| X22 | 2 | 2 | x | x | x | 10PIN |
| X23 | 4 | x | 4 | 4 | x | 20PIN |
| X24 | 3 | 1 | 4 | 4 | x | 20PIN |
| X25 | 2 | 2 | 4 | 4 | x | 20PIN |
| X26 | 2 | x | 8 | 4 | x | 20PIN |
| X27 | 1 | 1 | 8 | 4 | x | 20PIN |
| X28 | 2 | x | 12 | x | x | 20PIN |
| X29 | 1 | 1 | 12 | x | x | 20PIN |
| X30 | x | x | x | x | 16 | 20PIN |
Y Series IO Board Selection Table
You can choose the appropriate Y series IO board according to your requirements. The Y series IO modules are compatible with all Y slots.
| Model | Description | Model | Description |
|---|---|---|---|
| Y01 | 4DI + 4DO Module (NPN) | Y41 | 4-Channel AO Module (0/4~20mA Output) |
| Y02 | 4DI + 4DO Module (PNP) | Y43 | 4-Channel AO Module (0~5/10V Output) |
| Y11 | 8-Channel DI Module (NPN) | Y46 | 4-Channel AO Module (±5V/±10V Output) |
| Y12 | 8-Channel DI Module (PNP) | Y51 | 2-Channel RTD Module (3-Wire PT100) |
| Y13 | 8-Channel DI Module (Dry Contact) | Y52 | 2-Channel RTD Module (3-Wire PT1000) |
| Y21 | 8-Channel DO Module (PNP) | Y53 | 2-Channel RTD Module (4-Wire PT100) |
| Y22 | 8-Channel DO Module (NPN) | Y54 | 2-Channel RTD Module (4-Wire PT1000) |
| Y24 | 4-Channel DO Module (Relay) | Y56 | Resistance Measurement Module |
| Y31 | 4-Channel AI Module (Single-Ended, 0/4~20mA Input) | Y57 | Voltage Measurement Module |
| Y33 | 4-Channel AI Module (Single-Ended, 0~5/10V Input) | Y58 | 4-Channel TC Module (Thermocouple) |
| Y34 | 4-Channel AI Module (Differential, 0~5/10V Input) | Y63 | 4-Channel RS485/RS232 Optional Module |
| Y36 | 4-Channel AI Module (Differential, ±5V/±10V Input) | Y95 | 4-Channel PWM Output + 4-Channel Pulse Counting (1 High-Speed + 3 Low-Speed), NPN |
| Y37 | 4-Channel IEPE Measurement Module | Y96 | 4-Channel PWM Output + 4-Channel Pulse Counting (1 High-Speed + 3 Low-Speed), PNP |
Below is a summary of the Electromagnetic Compatibility (EMC) test results for the BL410 Series ARM Embedded Computer, including detailed information on electromagnetic emissions and immunity tests:
| Test Category | Test Item | Test Standard | Test Level | Test Conditions | Test Result | Remarks |
|---|---|---|---|---|---|---|
| Emissions | Conducted Emissions | GB/T 9254 Class A / CISPR 32 Class A | Class A | 150 kHz - 30 MHz | Pass | Meets limits for general industrial environments. |
| Radiated Emissions | GB/T 9254 Class A / CISPR 32 Class A | Class A | 30 MHz - 1 GHz | Pass | Meets limits for general industrial environments. |
| Test Category | Test Item | Test Standard | Test Level | Test Conditions | Test Result | Remarks |
|---|---|---|---|---|---|---|
| Immunity | Electrostatic Discharge (ESD) | GB/T 17626.2 / IEC 61000-4-2 | Level III | Contact discharge: +/-4 kV Air discharge: +/-8 kV |
Pass | — |
| Radiated RF Immunity | GB/T 17626.3 / IEC 61000-4-3 | Level III | Field strength: 10 V/m, 80 MHz - 1 GHz | Pass | — | |
| Electrical Fast Transient (EFT) | GB/T 17626.4 / IEC 61000-4-4 | Level III | Power lines: 2 kV Signal lines: 1 kV |
Pass | — | |
| Surge | GB/T 17626.5 / IEC 61000-4-5 | Level III | Differential mode: 2 kV Common mode: 4 kV |
Pass | — | |
| Voltage Dips and Interruptions | GB/T 17626.11 / IEC 61000-4-11 | Level III | Voltage dip: 70% for 500 ms Interruption: 10 ms |
Pass | — | |
| Power Frequency Magnetic Field | GB/T 17626.8 / IEC 61000-4-8 | Level III | Field strength: 30 A/m, 50 Hz | Pass | — |
Below is a summary of the environmental adaptability tests conducted on the BL410 series ARM embedded controllers, ensuring their reliability and performance in various industrial conditions:
| Test Item | Test Standard | Grade Requirement | Test Conditions | Test Result | Remarks |
|---|---|---|---|---|---|
| Low-Temperature Startup & Operation | GB/T 2423.1-2008 / IEC 60068-2-1 | N/A | Ambient temperature: -40℃, device starts and operates normally | Compliant | Meets the basic low-temperature startup requirements for industrial environments. |
| High-Temperature Startup & Operation | GB/T 2423.2-2008 / IEC 60068-2-2 | N/A | Ambient temperature: +85℃, device starts and operates normally | Compliant | Meets the basic high-temperature startup requirements for industrial environments. |
| Constant Damp Heat Test | GB/T 2423.3-2016 / IEC 60068-2-78 | N/A | Ambient temperature: +40℃, relative humidity: 85%, powered operation for 48 hours | Compliant | Ensures stable operation in humid environments. |
| Sinusoidal Vibration Test | GB/T 2423.10-2019 / IEC 60068-2-6 | N/A | Frequency range: 5 Hz to 500 Hz, acceleration: 2g, 10 cycles in each of three axes | Compliant | Validates the device's vibration resistance during transportation and installation. |
| Free Fall Test | GB/T 2423.7-2018 / IEC 60068-2-31 | N/A | Packaged state, free fall from 0.8 meters, 1 drop on each of 6 surfaces | Compliant | Ensures the device's impact resistance during transportation. |
| Ingress Protection (IP) Test | GB/T 4208-2017 / IEC 60529 | IP30 | Dust protection: Prevents entry of solid foreign objects with a diameter ≥ 2.5mm | Compliant | Meets industrial environmental protection requirements. |
One ARM embedded controller
One set of DIN35 mounting bracket
Pre-installed BLIoTLink software
Pre-installed BLRAT software
Ubuntu file system
Crimp-free terminals configured according to selected accessories
When WIFI or 4G modules are purchased, WIFI and 4G module antennas will be included.
Technical Support & Services
We offer comprehensive technical support and services to ensure a smooth development and deployment experience for our products. Below are the key services provided:
System Images & Source Code:
Provide system firmware images, file system images, kernel driver source code, and a variety of demo programs.
Platform Development Kit:
Offer a complete platform development package and beginner tutorials to save software integration time and simplify application development.
We provide a wide range of development cases to make application development easier and more efficient. These include:
Linux & Linux-RT: Application development cases.
Qt: GUI application development cases.
BLIoTLink: Industrial protocol collection and cloud platform integration cases.
BLRAT: Remote access and usage cases.
Node-Red: IoT application development cases.
Docker & MQTT: Container technology and communication protocol cases.
Baremetal & RT-Thread (RTOS): Baremetal and real-time operating system development cases.
Android: OS demonstration and application development cases.
Debian: OS demonstration cases.
ROS on Debian: Robot Operating System demonstration cases.
Domestic OS: Demonstration cases for SylixOS (Yihui) and KylinOS (Kylin).
AMP Development: Cases based on Linux + RT-Thread/Baremetal for asymmetric multiprocessing.
NPU Development: Neural Processing Unit development cases.
IgH EtherCAT & CAN: EtherCAT master station and CAN development cases.
4G/WiFi/Bluetooth: Communication module development cases.
HDMI Multimedia Display: Multimedia display development cases.
Assist with product secondary development to meet specific requirements.
Provide custom R&D and production services tailored to your needs.
Offer long-term after-sales services to ensure the continued performance and reliability of your products.
Our goal is to provide end-to-end support, from development to deployment, ensuring your success with our products.
