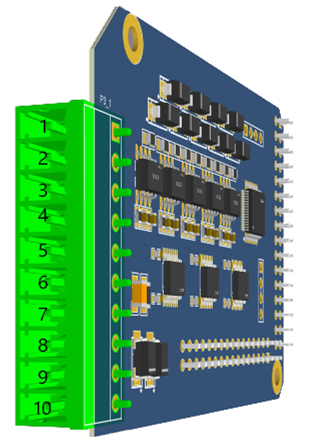

Y21 8 Channels Digital Output Module (PNP)

No.Y21

The Y21 8Channel Digital Output Module (PNP, High-level active) are one of the optional Y series I/O modules in the IOy series and ARMxy series products.
The digital output module features 8 digital output channels, namely DO1…DO8, which are used to control automated equipment. The 8 channels are single-ended outputs, sharing 2 common ground potentials, and employ digital isolation.

Channel

8CH PNP Digital Output

Specifications

Name	Parameter	Description
Power Supply	Operating Power:	Internal voltage
Power Supply	Power Consumption:	1.5W
Digital Output	Channels:	8 channels
	Output Mode:	Single-ended output
	Output Type:	High-level output is effective, with an output of 24VDC.
	Maximum Output Current per Channel:	200mA
	Isolation Protection:	2KVrms
Certification	EMC	IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3

Wiring

Name: Y21 8 Channels Digital Output Module (PNP)
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: Y21
Price: 10.00 USD
Availability: InStock
Rating: 5 (1 reviews)
