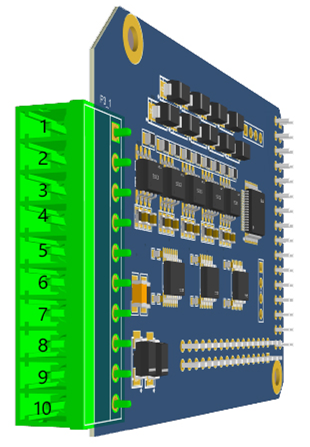

The Y11 8-channel low-level triggered digital input module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.
The low-level digital input module features 8 digital input channels, namely DI1…DI8, which can collect digital output signals from field devices. It is widely used in industrial automation and control systems. To enhance system reliability and stability, the digital input module employs effective isolation technology to prevent interference between different signals, thereby protecting the integrity of equipment and data.
The Y11 8-channel low-level triggered digital input module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.
The low-level digital input module features 8 digital input channels, namely DI1…DI8, which can collect digital output signals from field devices. It is widely used in industrial automation and control systems. To enhance system reliability and stability, the digital input module employs effective isolation technology to prevent interference between different signals, thereby protecting the integrity of equipment and data.
| Name | Parameter | Description |
|---|---|---|
| Power Supply | Operating Power: | Internal voltage |
| Power Consumption: | 0.4W | |
| Digital Input Module | Channels: | 8 channels |
| Trigger Mode: | Low-level trigger | |

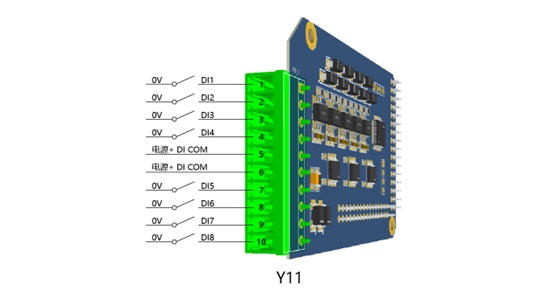

| Logic Level: | Logic 1: +15 ⋯+30VDC Logic 0: -3 ⋯+5VDC Common terminal: Connect to power+ |
|
| Isolation Protection: | 2KVrms | |
| Certification | EMC | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3 |
