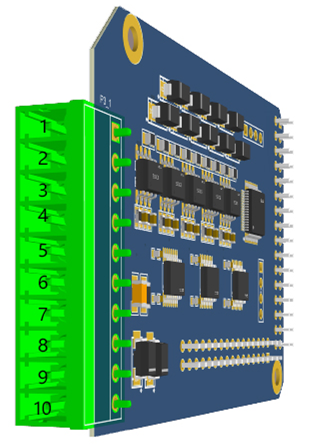

The Y01 digital mixed module is one of the optional Y series I/O modules in the IOy series and ARMxy series products. The Low level triggerdigital mixed module has 4 digital input channels and 4 digital output channels, namely DI1...DI4 and DO1...DO4, widely used in industrial automation and control systems. To improve system reliability and stability, the mixed digital module adopts effective isolation technology to prevent interference between different signals, thereby protecting equipment and data integrity.
The Y01 digital mixed module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.
The low level trigger digital mixed module has 4 digital input channels and 4 digital output channels, namely DI1...DI4 and DO1...DO4, widely used in industrial automation and control systems. To improve system reliability and stability, the mixed digital module adopts effective isolation technology to prevent interference between different signals, thereby protecting equipment and data integrity.
| Name | Parameter | Description |
|---|---|---|
| Power Supply | Operating Power: | Internal voltage |
| Power Consumption: | 0.48W | |
Digital Input | Channel | 4 Channels |
Triggering Method | Low-level trigger | |
Logic level | Logic 1: +15 to +30VDC Logic 0: -3 to +5VDC Common terminal: Connect to power + | |
Isolation protection | 2KVrms | |
Digital Output | Channel | 4 Channels |
Output Mode | Single-Ended Output | |
Output Type | Output is active low, providing a 0VDC signal when activated. | |
Maximum Output Current per Channel | 200mA | |
Isolation protection | 2KVrms | |
| Maximum Output Current per Channel: | 200mA | |
| Isolation Protection: | 2KVrms | |
| Certification | EMC | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3 |
