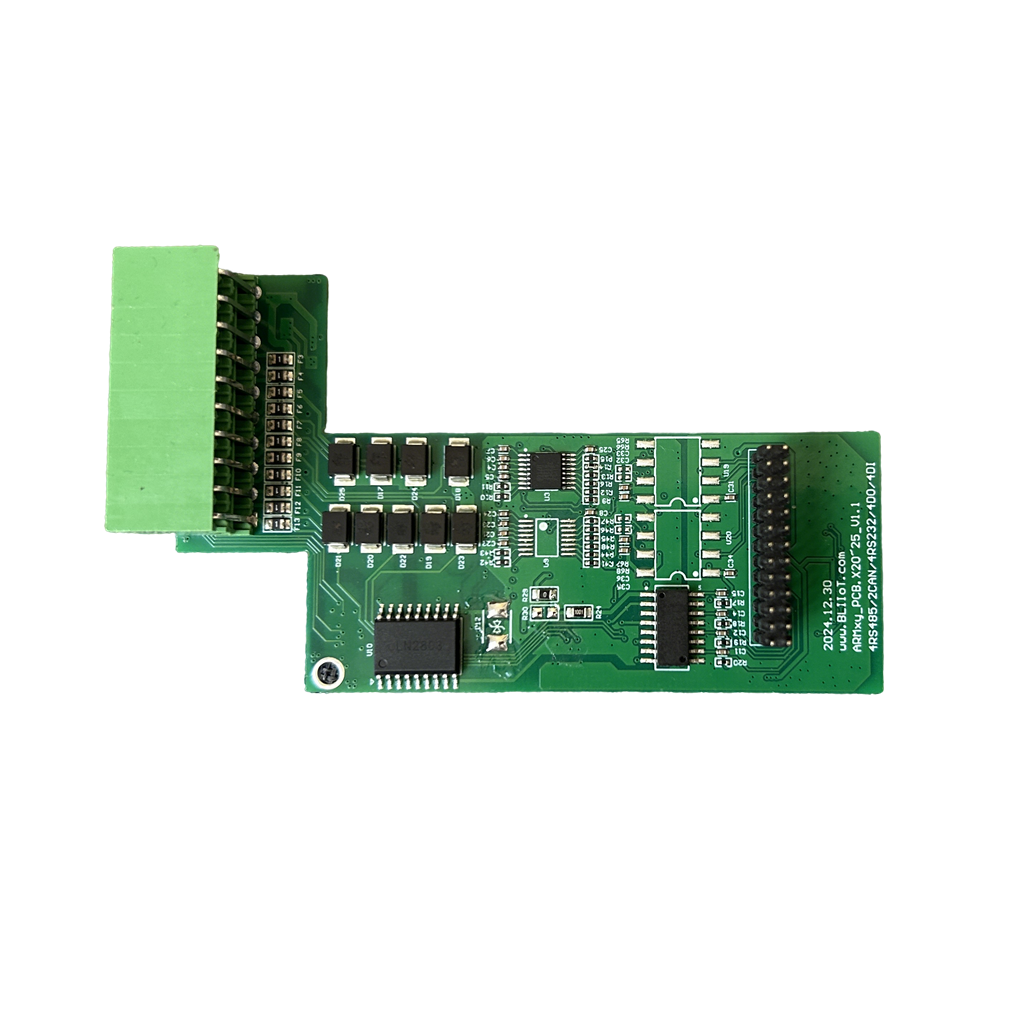

The X15 is an isolated 4-channel SINK digital output module, is one of the optional X series I/O modules in the ARMxy series ARM based computers.
The isolated SINK digital output module features 4 digital output channels, for extending the I/O of ARM based computers.
It is widely used in industrial automation and control systems. To enhance system reliability and stability, the digital output module employs effective isolation technology to prevent interference between different signals, thereby protecting the integrity of equipment and data.
X15 is an industrial-grade expansion module specially designed for the ARMxy series ARM embedded computers. The module features electrical isolation, overvoltage protection, ESD protection, fault protection, and overcurrent protection circuit designs, ensuring stability and reliability in complex industrial environments.
X15 provides 4 digital output (DO) channels, greatly expanding the I/O capabilities of the ARMxy series ARM embedded computers.
|
Name |
Parameter |
Description |
|
Power Supply |
Operating Power |
Internal Voltage |
|
Power Consumption |
1.5W |
|
|
Digital Output |
Channel |
4 channels |
|
Output Mode |
Single-ended output |
|
|
Output Type |
Active low output, output 0VDC |
|
|
Maximum Output Current per Channel |
100mA |
|
|
Isolation Protection |
2KVrms |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge) Level 3 |
