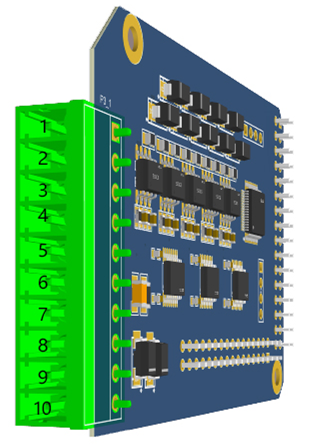

Y24 4-channel Relay Output Module

No.Y24

The Y24 4-channel relay output module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.
The relay output module features 4 relay output channels, namely DO1…DO4, which are used to control automated equipment. The 4 channels are normally open outputs.

Channel

4-Channel Relay Output

Maximum Voltage:

250VAC/30VDC

Maximum Current:

Maximum Power:

30W

Specifications

ame	Parameter	Description
Power Supply	Operating Power:	Internal voltage
Power Supply	Power Consumption:	0.85W
Relay Output	Channels:	4 channels
	Output Type:	Relay output
	Maximum Switching Voltage:	250VAC/30VDC
	Maximum Switching Current:	2A
	Switching Power:	30W
	Isolation Protection:	2KVrms
Certification	EMC	IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3

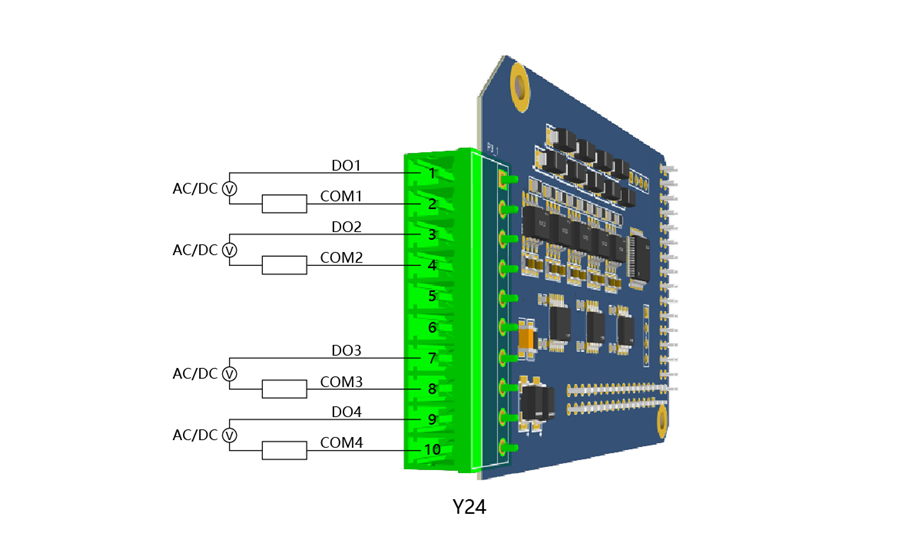

Wiring

Name: Y24 4-channel Relay Output Module
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: Y24
Price: 12.00 USD
Availability: InStock
Rating: 5 (1 reviews)
