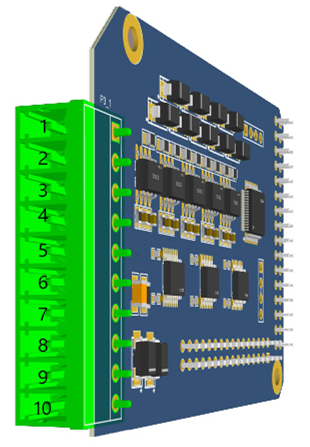

The 4-Channel thermocouple input module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.

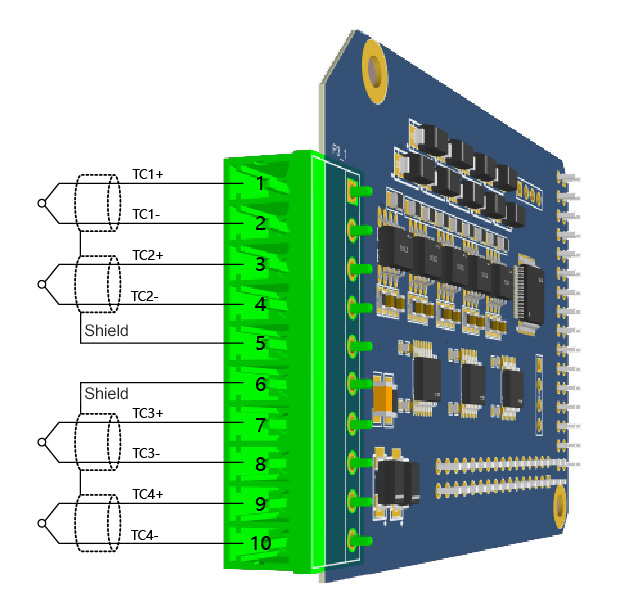

This module features 4 input channels, namely TC1, TC2, TC3, and TC4, which support the acquisition of J/K/E/T/S/R/B/N type thermocouple signals.
The input signal from each channel is electrically isolated, converted into a digital signal, and transmitted with 16-bit high resolution.
The 4-Channel thermocouple input module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.
| Name | Parameter | Description |
|---|---|---|
| Power Supply | Operating Power: | Internal voltage |
| Power Consumption: | 0.192W | |
| Thermocouple Input | Channels: | 4 channels |
| Sensor Type: | J/K/E/T/S/R/B/N type thermocouples | |
| Resolution: | 16 Bit | |
| Accuracy: | ±0.5% @25℃ | |
| Conversion Rate: | 400 ms | |
| Measurement Range: | J-type: -210~1200℃ K-type: -200~1372℃ E-type: -200~1000℃ T-type: -200~400℃ S-type: -50~1768℃ R-type: -50~1768℃ B-type: 250~1820℃ N-type: -200~1300℃ |
|
| Certification | EMC | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3 |
