The X14 is an isolated 4-channel Dry Contact or Wet Contact digital input module, is one of the optional X series I/O modules in the ARMxy series industrial arm computers.
It is widely used in industrial automation and control systems. To enhance system reliability and stability, the digital input module employs effective isolation technology to prevent interference between different signals, thereby protecting the integrity of equipment and data.
X14 is an expansion module specially designed for the ARMxy series ARM embedded computers. The module features electrical isolation, overvoltage protection, ESD protection, fault protection, and overcurrent protection circuit designs, ensuring stability and reliability in complex industrial environments.
X14 provides 4 digital input (DI) channels, greatly expanding the I/O capabilities of the ARMxy series ARM embedded computers.

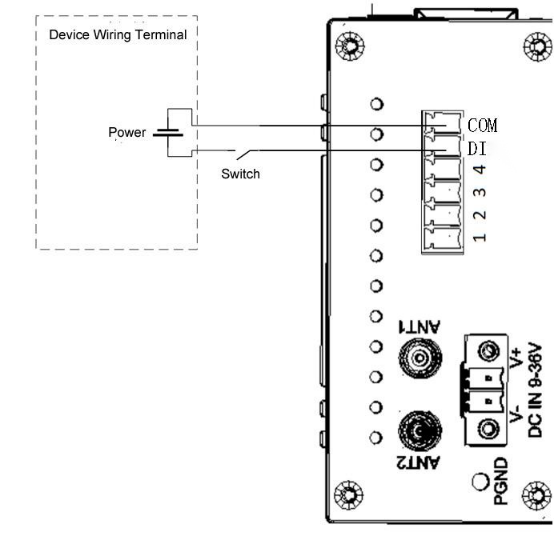

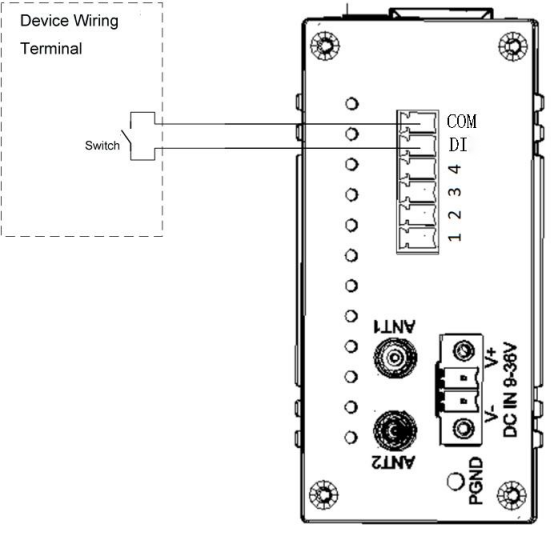

4 DI channels support electrical isolation and offer dry or wet contact input.
|
Name |
Parameter |
Description |
|
Power Supply
|
Operating Power |
Internal Voltage |
|
Working Voltage |
12V-24V |
|
|
Power Consumption |
1.5W |
|
|
Digital Input |
Channel |
4 Channels |
|
Trigger Mode |
Low-level trigger or high-level trigger (optional) |
|
|
Dry/Wet Contact |
Optional |
|
|
Logic Level |
Logic “1”: +9 to +12VDC Logic “0”: -3 to +5VDC |
|
|
Isolation Protection |
2KVrms |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge) Level 3 |
