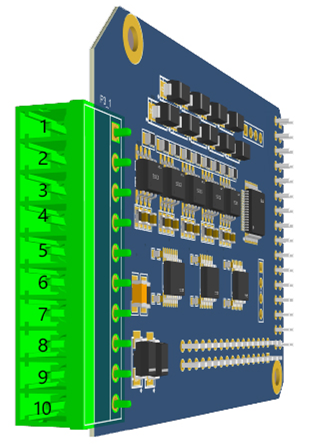

Y41 4-channel 0~20mA/4~20mA Analog Output Module

No.Y41

The Y41 current Analog output module is one of the optional Y series I/O Analog output modules in the IOy series and ARMxy series products.
This module features 4 output channels, namely AO1, AO2, AO3, and AO4, which can output 0~20mA / 4~20mA current signals for controlling the execution of field devices.
Each output channel is electrically isolated, and the signals are transmitted with 12-bit resolution.

Channel

4 channel analog output

Resolution

12bit

Signal Type:

0~20mA / 4~20mA

Accuracy:

±0.1 % FSR @ 25 ℃

Specifications

Name	Parameter	Description
Power Supply	Operating Power:	Internal voltage
Power Supply	Power Consumption:	2.4W
Analog Output	Channels:	4 channels
	Output Type:	0~20mA, 4~20mA
	Resolution:	12 Bit
	Accuracy:	±0.1 % FSR @ 25 ℃
	Conversion Time:	10 ms
	Load Impedance:	≤1kΩ
Certification	EMC	IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3

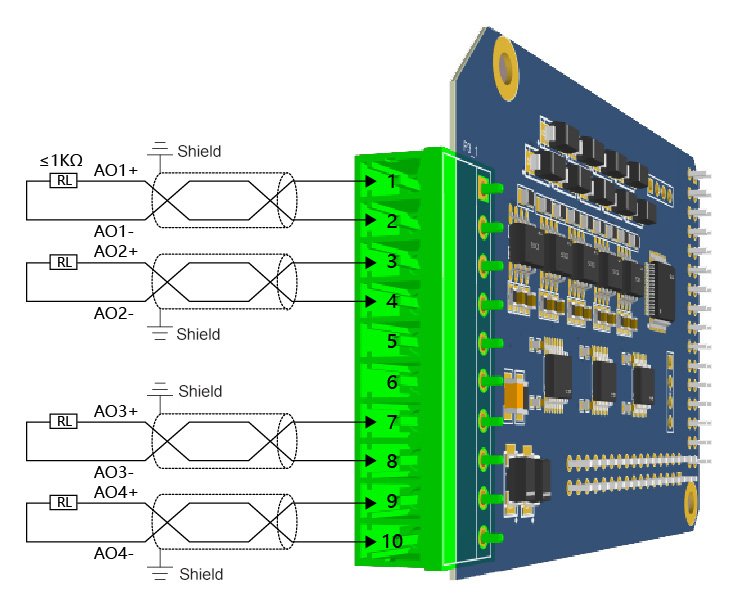

Wiring

Name: Y41 4-channel 0~20mA/4~20mA Analog Output Module
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: Y41
Price: 17.00 USD
Availability: InStock
Rating: 5 (1 reviews)
