The X11 is an industrial-grade 2-channel CAN Bus port module specifically designed to expand the capabilities of the ARMxy series arm based industrial pc. It features electrical isolation and provides 2-channel CAN Bus interfaces, significantly enhancing the performance of the ARMxy series arm based industrial pc.
The X11 CAN Bus serial port module supports baud rates from 5kbps-1Mbps and Half-duplex communication modes. It can operate stably in harsh environments and is widely used in industrial automation and control systems.
X11 is an industrial-grade CAN BUS communication expansion module specifically designed for the ARMxy series ARM embedded computers. The module features electrical isolation, overvoltage protection, ESD protection, fault protection, and overcurrent protection circuit designs to ensure stability and reliability in complex industrial environments.
X11 provides 2 CAN bus communication channels, significantly expanding the I/O capabilities of the ARMxy series embedded computers.
The two CAN channels support baud rates up to 1000 Kbps and 5000 Kbps, operating reliably even in harsh environments.
|
Name |
Parameter |
Description |
|
Power Supply |
Operating Power |
Internal Voltage |
|
Working Voltage |
12V-24V |
|
|
Power Consumption |
0.5W |
|
|
CAN |
Channel |
2 Channels |
|
Transmission Mode |
CAN BUS |
|
|
Maximum Baud Rate |
Nominal Bit Rate: 1000Kbps Data Bit Rate: 5000Kbps |
|
|
Flow Control |
Not supported |
|
|
Impedance |
45KΩ |
|
|
Measured Distance and Operating Baud Rate |
200 meters (baud rate = 500 Kbps) |
|
|

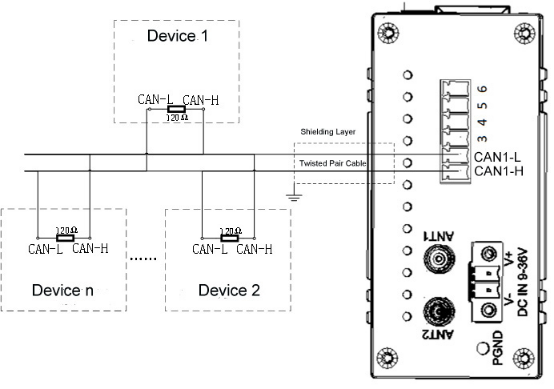

Multi-Node Communication |
Support |
|
|
Logic Level |
Logic “1”: 3.5V Logic “0”: 1.2V |
|
|
Maximum Output Current per Channel |
100mA (26℃) |
|
|
Isolation Protection |
2KVrms (built-in) |
|
|
Communication Cable Requirements |
Shielded twisted pair cable |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge) Level 3 |
