What is an SMARC Module?
SMARC, which stands for Smart Mobility ARChitecture, is a Computer-on-Module (COM) standard designed for the high-performance, low-power embedded computing field.
You can think of it as similar to a CPU in a desktop computer, but it's a complete computer system integrating the CPU, memory, storage, and various controllers, all packaged onto a very compact module.
To understand SMARC, it's essential first to grasp the concept of a "Modular Computer":
The Module: The core computing unit, integrating:
CPU: The processor (typically low-power SoCs based on ARM or x86 architecture).
Memory: RAM (e.g., LPDDR4).
Storage: eMMC or SPI Flash.
Power Management: and other core components.
It provides all necessary input/output interfaces via a high-speed connector.
The Carrier Board: A user-customizable baseboard containing:
A socket for the SMARC module.
The required specific peripheral interfaces (like Ethernet ports, USB ports, display interfaces).
Expansion slots (e.g., Mini-PCIe).
Industry-specific connectors (e.g., GPIO, CAN bus).
Simple Analogy: A SMARC module is like a car's "engine + transmission" assembly, while the carrier board is like the car's chassis and body. You can choose the same powerful engine (SMARC module) for different car models (applications) but pair it with different chassis (carrier boards).

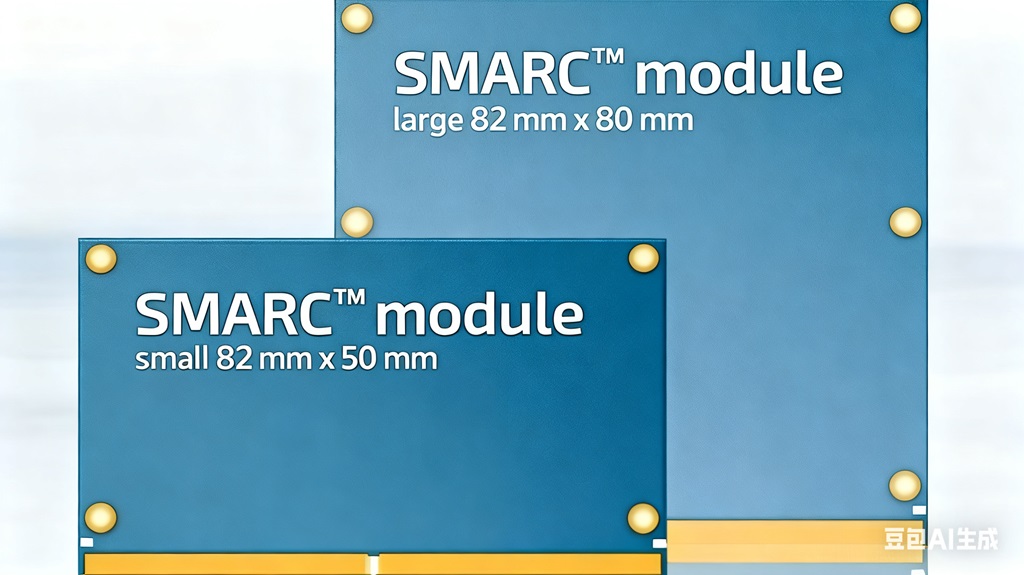

Ultra-Compact Size:
The standard size is very small, most commonly 82mm x 50mm. This compact form factor makes it ideal for space-constrained embedded applications.
Designed for Low Power Consumption:
Primarily targets SoCs like Intel Atom, ARM Cortex-A series, NXP i.MX, Renesas RZ, etc. These processors are very power-efficient, often operating fanlessly with just a heat spreader.
Rich Multimedia and I/O Capabilities:
Display: Natively supports multiple modern display interfaces like eDP, MIPI-DSI, and HDMI/DisplayPort, making it very suitable for applications requiring high-definition graphical interfaces.
Connectivity: Provides sufficient PCIe, USB, Ethernet, audio, and low-bandwidth interfaces to meet various peripheral needs.
Long Lifecycle Support:
Product lifecycles in the embedded market are much longer than in consumer PCs. Components for SMARC modules are typically guaranteed long-term supply (5-10 years or more), which is crucial for industrial products.
Due to their small size, low power consumption, and strong multimedia processing capabilities, SMARC modules are widely used in:
Industrial Automation: PLCs, HMIs, industrial controllers.
Medical Devices: Portable diagnostic equipment, patient monitors.
Digital Signage: Kiosks, advertising displays.
Transportation: In-vehicle infotainment systems, fleet management systems.
Smart City: Intelligent gateways, surveillance equipment.
Robotics: Robot controllers.
In the embedded module field, SMARC has two main "sibling" standards:
COM Express:
Positioning: High-performance computing. Uses high-performance processors like Intel Core, with larger size and power consumption, and richer interfaces (e.g., more PCIe lanes).
Analogy: If COM Express is a "desktop workstation," then SMARC is a "high-performance laptop" or "tablet."
Qseven:
Positioning: Ultra-low cost and power consumption. It is older than SMARC and has fewer interfaces (e.g., typically only one display interface, no PCIe).
Current Status: SMARC has now become the mainstream choice in the low-power, high-performance field, largely replacing Qseven.
A SMARC module is a highly integrated, compact, and energy-efficient "computer core." It helps device manufacturers rapidly develop stable, long-lasting, and powerful embedded products by standardizing the most complex and rapidly evolving core components, significantly reducing development complexity and time-to-market.
It is one of the embedded module solutions that offers the best balance between performance, power consumption, size, and functionality today.
