Rockchip RK3576 Processor Performance and Application Scenarios Analysis

Overview

The Rockchip RK3576 is a processor chip designed for high-end edge computing and industrial AI applications, featuring an innovative heterogeneous architecture of 4×Cortex-A72 + 4×Cortex-A53 cores paired with a 6TOPS NPU accelerator. This chip achieves an exceptional balance between performance and power efficiency, supporting industrial-grade operating temperatures from -40℃ to 105℃ and 8K video codec capabilities, making it an ideal choice for smart manufacturing and smart city applications. Beilai Technology's BL440 edge computing gateway, based on this processor, offers flexible ROM/RAM configurations (up to 16GB+128GB) and modular I/O design to meet deployment requirements in various demanding industrial environments.

Core Performance Advantages

1. Heterogeneous Computing Architecture:

• 4×Cortex-A72@2.2GHz (performance cores)

• 4×Cortex-A53@1.8GHz (efficiency cores)

• Intelligent task scheduling algorithm for dynamic power management

2. AI Acceleration Capabilities:

• 6TOPS NPU supporting INT4/INT8/FP16 mixed precision

• Typical AI performance:
  • Face recognition: 240fps@1080p
  • Object detection: 50fps@4K
  • Semantic segmentation: 30fps@2K

3. Multimedia Processing:

• Video codec:
  • Decoding: 8K30fps/4K120fps
  • Encoding: 4K60fps H.265/H.264

• Display interfaces:
  • Dual 4K60 HDMI 2.1 output
  • Supports HDR10+/Dolby Vision

Industrial-Grade Enhancements

1. Environmental Adaptability:

• Passed MIL-STD-810G vibration/shock tests

• 50,000 hours MTBF certification

• Surge protection design (4kV contact discharge)

2. Security Features:

• Hardware-level TrustZone 2.0 security island

• Chinese cryptographic algorithms SM2/SM3/SM4 acceleration engine

• Secure boot + physical tamper detection

Typical Application Scenarios

1. Industrial Visual Inspection:

• Supports 16-channel 1080p video real-time analysis

• Typical accuracy: 99.2%@defect detection

• Response latency: <50ms

2. Intelligent Transportation Systems:

• Multi-sensor fusion for vehicle-road coordination

• Supports 8-channel video structured analysis

• Typical power consumption: <15W@full load

3. Energy IoT:

• Edge aggregation for 200+ sensor data

• Supports 18 protocols including Modbus/OPC UA

• Offline operation duration: ≥72 hours

Baili Technology BL440 Solution

1. Hardware Configuration:

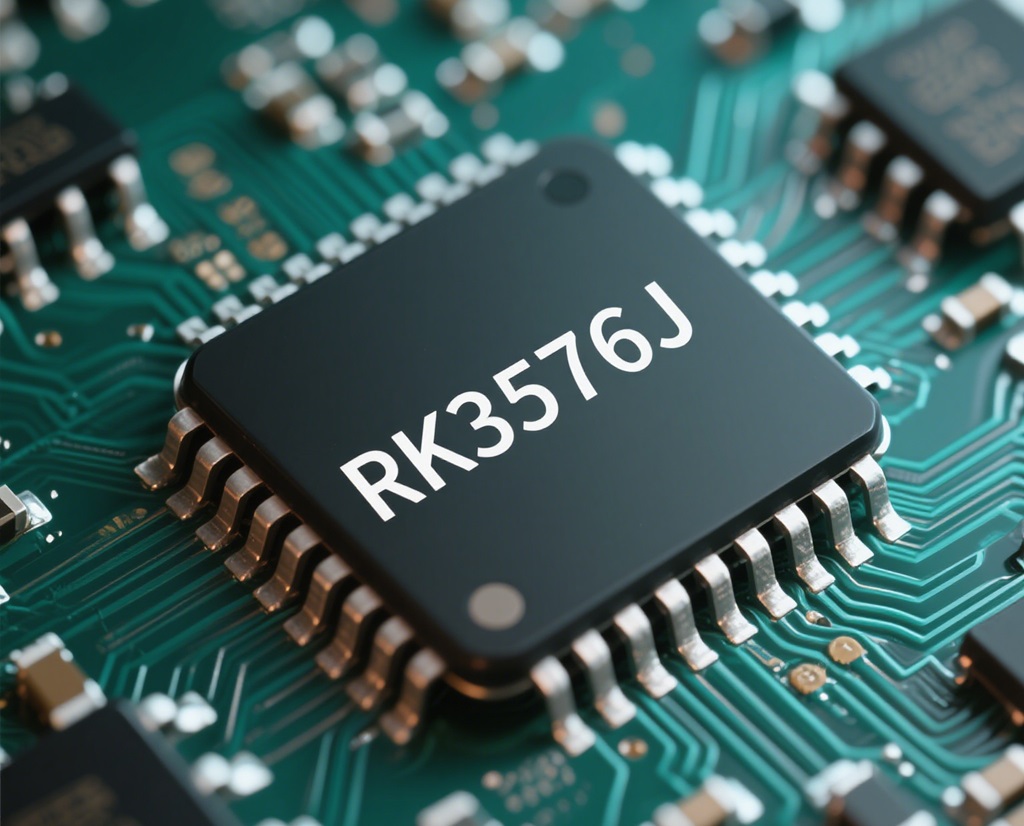

• Computing unit: RK3576J

• Memory: 4GB/8GB/16GB LPDDR4X optional

• Storage: 32GB~128GB eMMC + NVMe expansion

2. Interface Features:

• Standard configuration:
  • 4×GbE (including 2×TSN)
  • 2×CAN-FD
  • 4×USB3.2

• Optional expansions:
  • 5G module (SA/NSA)
  • PoE+ power module

3. Typical Deployment Cases:

• Automotive factory: 36 units networking for 200+ robot control

• Smart campus project: Single node processing 12-channel 4K security video

• Wind power monitoring system: Stable operation at -30℃

Selection Recommendations

1. Recommended Scenarios:
   ✓ Manufacturing quality inspection requiring localized AI processing
   ✓ Multi-protocol industrial equipment access gateway
   ✓ High-density video analysis edge nodes

2. Alternative Solution Suggestions:
   × Autonomous driving requiring >20TOPS computing
   × Ultra-low power (<3W) sensor nodes
   × Real-time signal processing requiring FPGA

Note: Actual performance parameters may vary depending on system configuration. For the latest technical documentation, please refer to Rockchip's official website or contact Baili Technology for customized solution advice
