Case of BL340 quad Cortex A53 ARM Computer in New Energy Vehicle Charging Management Systems

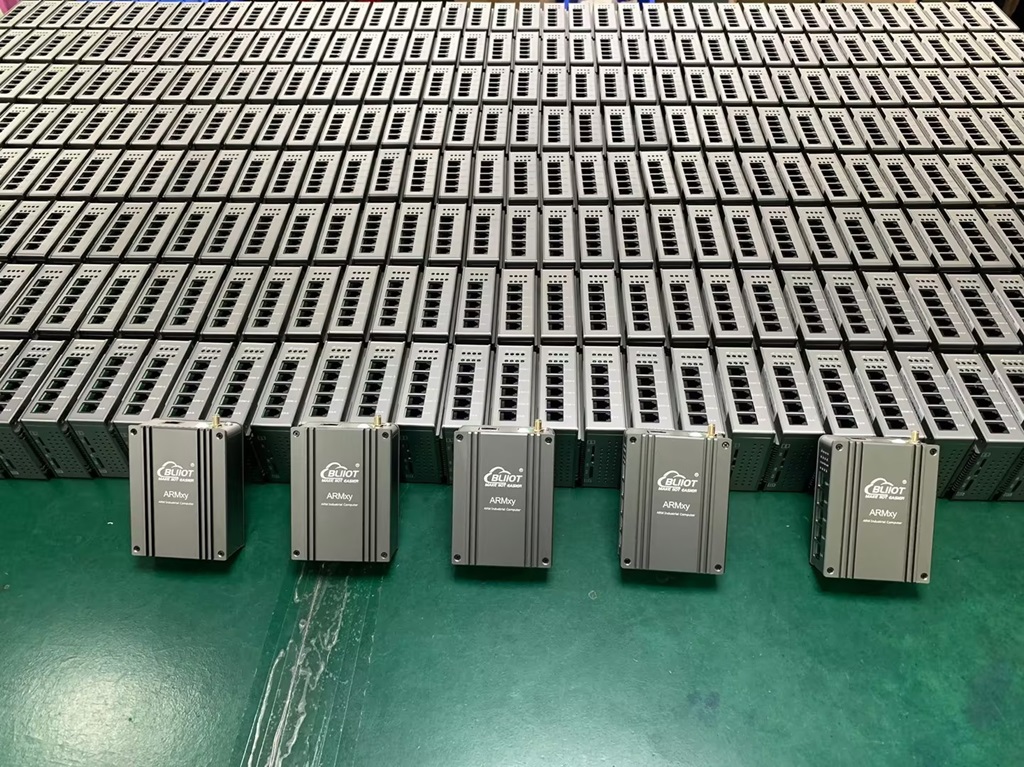

The ARMxy Series BL340 4 Cortex-A53 ARM Based Industrial Computer Controller Device demonstrates its advantages in high performance, low power consumption, and industrial-grade reliability when applied to new energy vehicle charging management systems. Below are the specific application scenarios and advantages of this system:

1. Application Scenarios

• Charging Pile Control and Management:

  • Real-time monitoring of charging pile status, including voltage, current, temperature, and other parameters.

  • Supports automated control of the charging process to ensure safe and efficient charging operations.

• Data Collection and Transmission:

  • Collects data during the charging process (e.g., energy consumption, charging time, user information).

  • Transmits data to the cloud or central management system via 4G/5G, Ethernet, or Wi-Fi.

• User Interaction and Payment:

  • Provides a touchscreen interface for user operations and charging status display.

  • Integrates payment modules to support various payment methods such as QR code scanning and card payments.

• Fault Diagnosis and Maintenance:

  • Monitors equipment operation status in real time, promptly identifying and reporting faults.

  • Supports remote diagnosis and maintenance, reducing on-site maintenance costs.

2. Core Advantages of ARMxy BL340

• High-Performance Processing:

  • Equipped with a quad-core Cortex-A53 processor, delivering powerful computing capabilities to meet real-time data processing requirements of charging management systems.

• Low Power Consumption Design:

  • The low power consumption of the ARM architecture makes it suitable for long-running charging pile equipment, reducing operational costs.

• Industrial-Grade Reliability:

  • Wide operating temperature range (-40°C to 85°C), suitable for outdoor and complex environments.

  • Vibration and shock resistance design ensures stable operation under harsh conditions.

• Rich Interfaces and Expandability:

  • Provides multiple I/O interfaces (e.g., GPIO, UART, CAN, Ethernet) for connecting sensors, controllers, and communication modules of charging piles.

  • Supports modular expansion, allowing integration of 4G/5G, Wi-Fi, LoRa, and other communication modules as needed.

• Security:

  • Supports hardware encryption and secure boot functions to ensure data transmission and device operation security.

  • Complies with industrial electromagnetic compatibility (EMC/EMI) standards, reducing interference.

3. System Architecture and Function Implementation

• Hardware Layer:

  • ARMxy BL340 serves as the core controller, connecting the power module, sensors, communication modules, and user interaction devices of the charging pile.

• Software Layer:

  • Runs Linux or real-time operating systems (RTOS), supporting charging control, data collection, communication protocol stacks, and user interfaces.

  • Integrates charging management algorithms to optimize charging efficiency and ensure safety.

• Communication Layer:

  • Supports multiple communication protocols (e.g., Modbus, MQTT, OPC UA) for data interaction with the cloud or central management system.

  • Enables remote monitoring and management via 4G/5G or Ethernet.

4. Practical Application Cases

• Public Charging Stations:

  • In public charging stations, ARMxy BL340 is used to manage multiple charging piles, enabling centralized monitoring and remote maintenance.

• Private Charging Piles:

  • In home or enterprise charging piles, it provides user-friendly interfaces and safe charging management.

• Mobile Charging Vehicles:

  • In mobile charging vehicles, it serves as the core controller, supporting rapid deployment and flexible charging.


5. Future Development Directions

• Intelligent Upgrades:

  • Combines AI algorithms to enable intelligent scheduling and load balancing of charging piles.

• V2G (Vehicle-to-Grid) Support:

  • Supports bidirectional energy interaction between electric vehicles and the grid, enhancing grid stability.

• Big Data Analysis:

  • Optimizes charging pile layout and operational strategies by collecting and analyzing charging data.

6. Summary

The ARMxy Series BL340 4 Cortex-A53 Industrial Computer, with its high performance, low power consumption, industrial-grade reliability, and rich interfaces, is an ideal choice for new energy vehicle charging management systems. It not only meets the real-time control and data management needs of charging piles but also supports intelligent upgrades and system expansion through modular design and powerful communication capabilities. As new energy vehicles become more widespread, ARMxy BL340 will play an increasingly important role in charging infrastructure.
